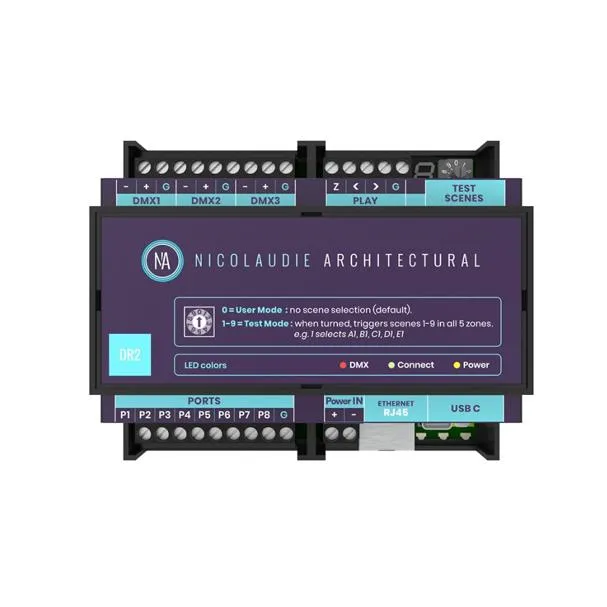

DINA-DR2
SHOW CONTROL
The DINA-DR2 is built on the latest generation of lighting controllers from Nicolaudie Architectural, incorporating all our recent innovations. Designed for DIN rail mounting, the DINA-DR2 is the perfect solution for mid-range lighting installations. It comes with 1024 DMX channels (512 for DINA-DR2 LITE) and can be upgraded to 1536 channels by adding a 3rd DMX universe. Lighting levels, colors, and effects can be programmed from a PC, Mac, Android, iPad, or iPhone using our software available on our website.
Technical details
| Dimension (L×W×H) | 60 × 91 × 62 mm |
|---|---|
| Weight | 317 g |
| Input power | 12 VDC (8–15 V range) |
| Output protocol | DMX512 (×3) |
| DMX channels | 512 (LITE); 1024 on DINA-DR2, up to 1536 with a 3rd universe |
| Programmability | PC / Mac / Android / iOS |
| Connections | USB-C; Ethernet; screw terminals for 3 DMX/RDM universes, 8+3 contact ports and 12 V power-in; CR2032 battery holder; microSD slot |
| Environment | IP20 / 0 to +50 °C |
| Buttons | Rotary switch |
| Memory | SD card |
| OS requirements | macOS 10.8–10.14; Windows 7/8/10 |
| Standards | CE, ETL, low voltage, EMC, RoHS |
| Product no | 5150 |
