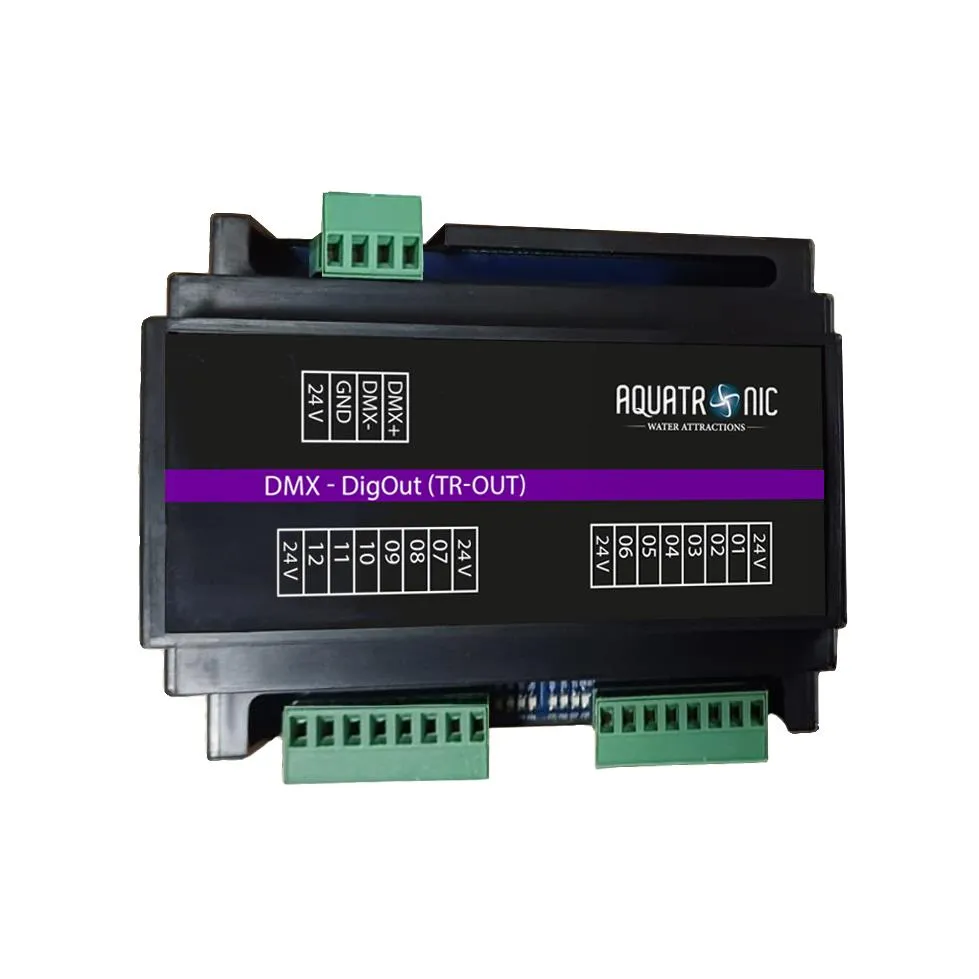

DMX - DIGOUT
SHOW CONTROL
DMX-Digout is a type of rail-hanging component. It has power and data inputs and can control up to 8 units. There are two modes: PWM and Switch. The Switch mode is simply an on-off mode. However, PWM (Pulse Width Modulation) controls the pulse width based on modulator signal information, allowing for more flexible system operation.
POWER IN : 24 VDCDMX CH : 8OUT PUT : 8 NPN TR-OUT, 1A EACH OUTPUT
- POWER IN : 24 VDCDMX CH : 8OUT PUT : 8 NPN TR-OUT, 1A EACH OUTPUT
Technical details
| Power in | 24 VDC |
|---|---|
| DMX channels | 8 |
| Output | 8 × NPN TR-OUT, 1 A each |
| Modes | PWM / switch |
| Units controlled | Up to 8 |
| Mounting | DIN rail |
| Product no | 5235 |
