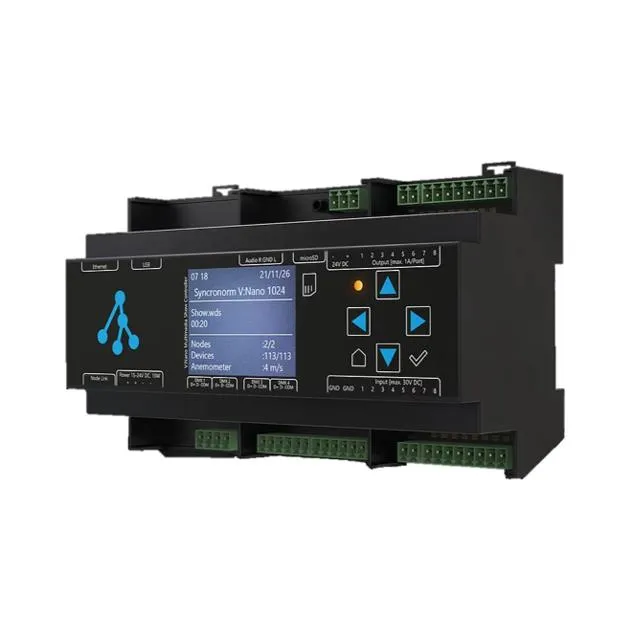

V:NANO / V:NANO 1024 MUSIC
Syncronorm’s new DIN-rail fanless ruggedized embedded systems with extra low power CPU chipset, the V:Nano / V:Nano 1024 music. Made for the rugged environment, this compact unit supports wide temperature range and features DMX 512 / 1990 ports, isolated Ethernet port 10/100 Mbit, micro SD card slot, 2 x 16 LCD segment display. Its 8 & digital and 8 x analog I/O makes this unit the perfect tool for all stand alone fountain multimedia show installations. The DIN-rail hardware family is compatible to all depence architect or ultimate versions. Show upload can be done via SD card or local network. Windows Remote Live Panel Software and service tools will be shipped with this package as well.
Technical details
| Dimension (L×W×H) | 150 × 94 × 58 mm |
|---|---|
| Weight | 0.33 kg |
| Housing | Polycarbonate, light grey / white / blue top — DIN rail mounting |
| Protection class | IP20 |
| Power supply | 24 VDC / 0.42 A / 10 W |
| Operating temperature | 0–40 °C / 0–80 % humidity |
| Certification | CE |
| DMX outputs | DMX512 — 512 channels (V:Nano) / 1024 channels (V:Nano 1024 Music) |
| Digital outputs | 8 × digital out (24 VDC, max 1 A) |
| Analogue output | Audio (AUX / 3-pin) — V:Nano 1024 Music only |
| Digital inputs | 8 × digital in (max 30 VDC) |
| Synchronisation | 1 × USB 2.0, 1 × Node Link, 1 × Ethernet RJ45 |
| Memory | microSD card (max 32 GB) |
| Display | 240 × 320 px IPS |
| Product no | 5155 |
