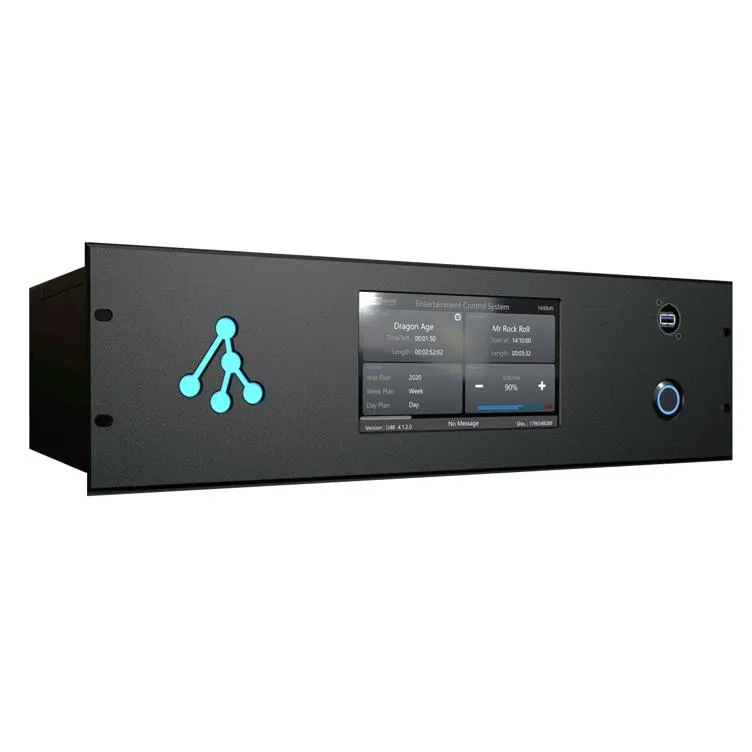

V:SERVER
SHOW CONTROL
V:Server is our interactive standalone show controller, designed to play back complex multimedia timecode shows composed using Depence Software. It supports industry-standard protocols and interfaces like DMX-RDM, ArtNET, sACN, ModBus, SMPTE, and more, ensuring seamless integration into any multimedia show installation. Available in versions from U8 to U48, it can control up to 48 DMX Universes. The 7” touch screen interface provides quick and easy access to all important settings and status messages. The Live-Panel offers a fully customizable human interface for your customer, accessible on a second touch screen or remotely on any tablet device. With its real-time calculation engine and powerful node-based logic feature, it offers maximum flexibility for any autonomous and interactive installation. V:Server also includes optically isolated digital/analog inputs & outputs to directly connect sensors and triggers, such as measuring water levels, wind levels, or gas pressure in your multimedia installation.
Technical details
| Dimension (L×W×H) | 19" 3HE, 330 mm depth (482 × 330 × 178 mm) |
|---|---|
| Weight | 8.2 kg |
| Protection class | IP20 |
| Power supply | 110 / 230 V, 50/60 Hz AC, max 350 W |
| DMX output | 2048 channels, 4 universes DMX-RDM |
| DMX output over Art-Net IV | 4096 channels (U8) / 8192 channels (U16) / 24576 channels (U48) |
| Analogue ports (in or out) | 12 × 0–10 VDC, 25 mA current drive capability |
| Digital outputs | 8 × 12–24 VDC, max 1 A |
| Digital inputs | 8 × 12–24 VDC |
| Connectors | 4 × DMX-RDM Neutrik XLR 5-pin male, optically isolated; 2 × audio out symmetric stereo XLR 3-pin male; 1 × SMPTE timecode in/out XLR 3-pin female; 1 × Ethernet RJ45; 1 × DVI-D monitor out; 3 × USB 2.0 (1 front, 2 back); 1 × RS232 9-pol SUB-D male; 1 × emergency stop 9-pol SUB-D female; 1 × digital output 25-pol SUB-D female (8 digital outputs); 1 × digital input 25-pol SUB-D male (8 digital inputs); 1 × analogue port 37-pol SUB-D female (12 analogue in or out) |
| Synchronisation | SMPTE, NetTime, SNTP |
| Memory | 8 GB RAM, 256 GB internal NVMe M.2 SSD |
| Display | 7" touch, internal |
| Scope of delivery | Server, power cable, documentation |
| Product no | 5156 |
