AquaJUMP
Laminar flowing Water Arch animation
AquaJUMP units use to create water arches. These are effective choice for places which have size limitations, even indoor areas and also they are convenient systems to use in sectional or if there is an altitude difference between varied parts of the pool. The changing arches high and end are possible with arranging the angle of water outlet. AquaJUMP system are lighted by RGBW-LEDs and this gives that multifarious colour alternative. Optionally, the arches of water can be divide into small laminar sections with cutting unit.
- Robust Stainless Steel Body
- 24VDC Powered & DMX-RDM Controlled
- IP68 Socket One Cable Connection
- Syncronorm Depence Library available
- Slice/On-Off Function
- Parabolic Water Arches with Ø12mm or Ø16mm
- Laminar Flow Jumping Jets

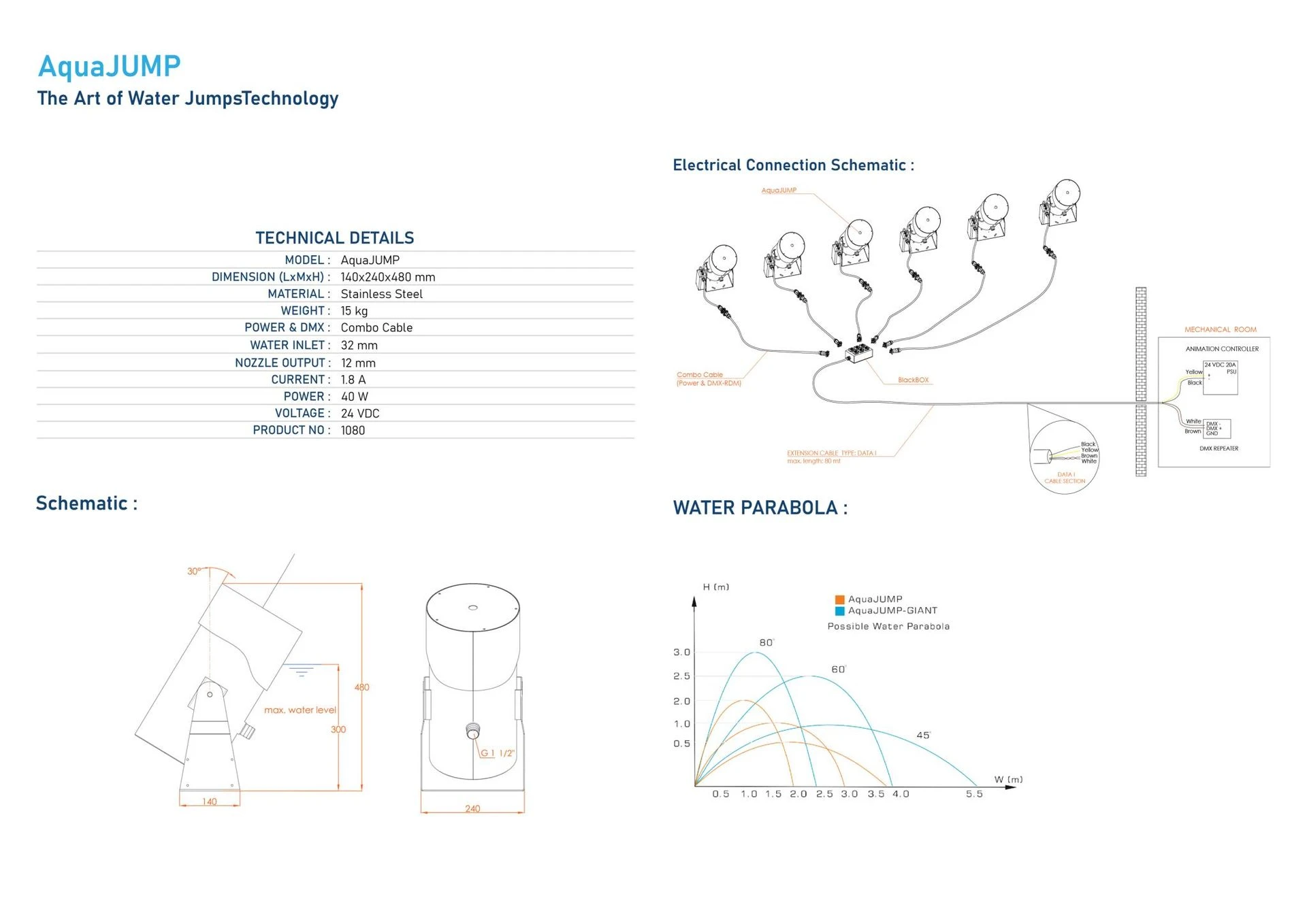

Technical details
| Model | AquaJUMP |
|---|---|
| Dimension (L×W×H) | 140 × 240 × 480 mm |
| Material | Stainless steel |
| Weight | 15 kg |
| Water inlet | 32 mm |
| Nozzle output | 12 mm |
| Max. water level | 300 mm |
| Power & DMX | Combo cable |
| Voltage | 24 VDC |
| Power | 40 W |
| Current | 1.8 A |
| Product no | 1080 |
