Animated Nozzles

AquaJUMP-GIANT

Laminar flowing Water Arch animation

AquaJUMP-GIANT
AquaJUMP-GIANT
AquaJUMP-GIANT
AquaJUMP-GIANT

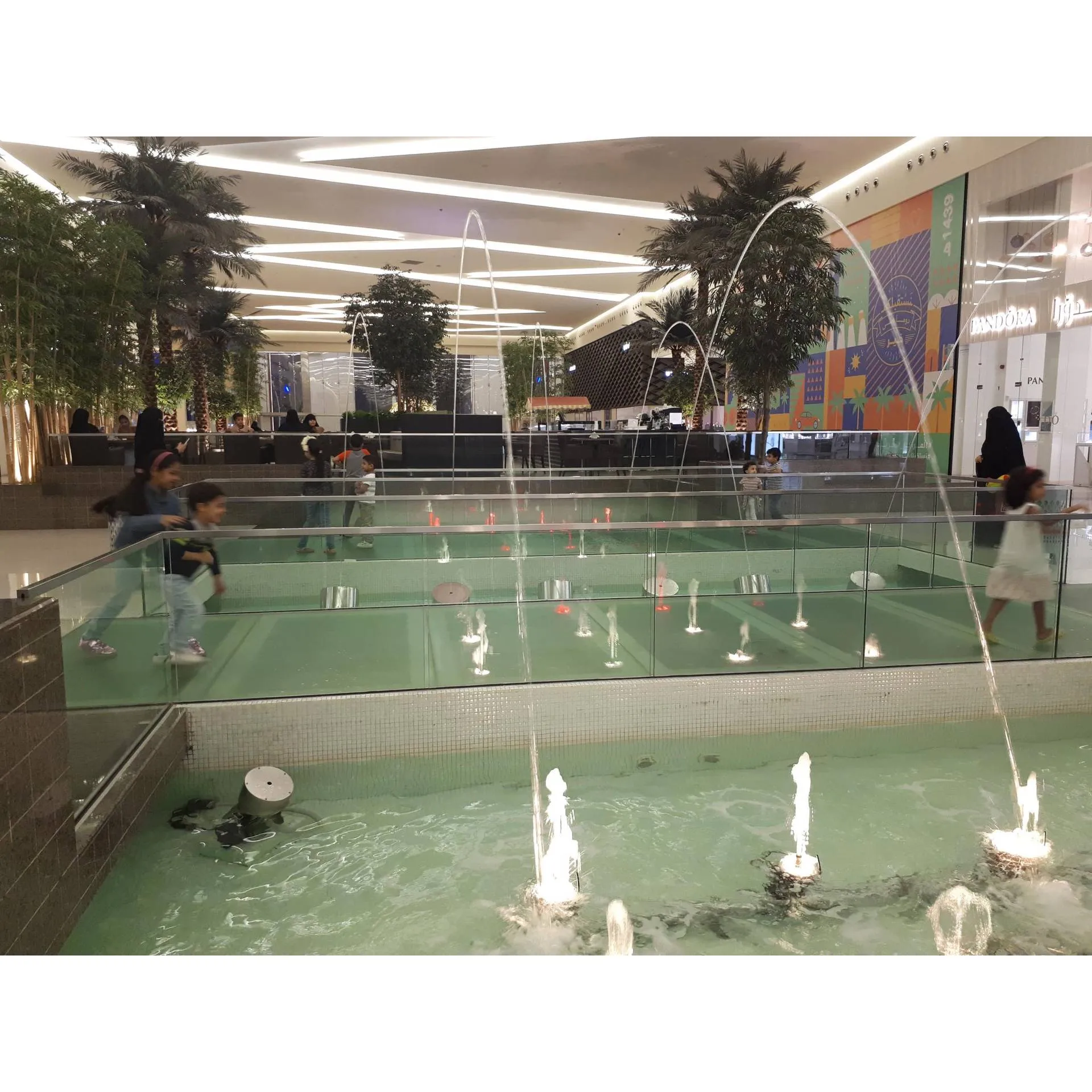

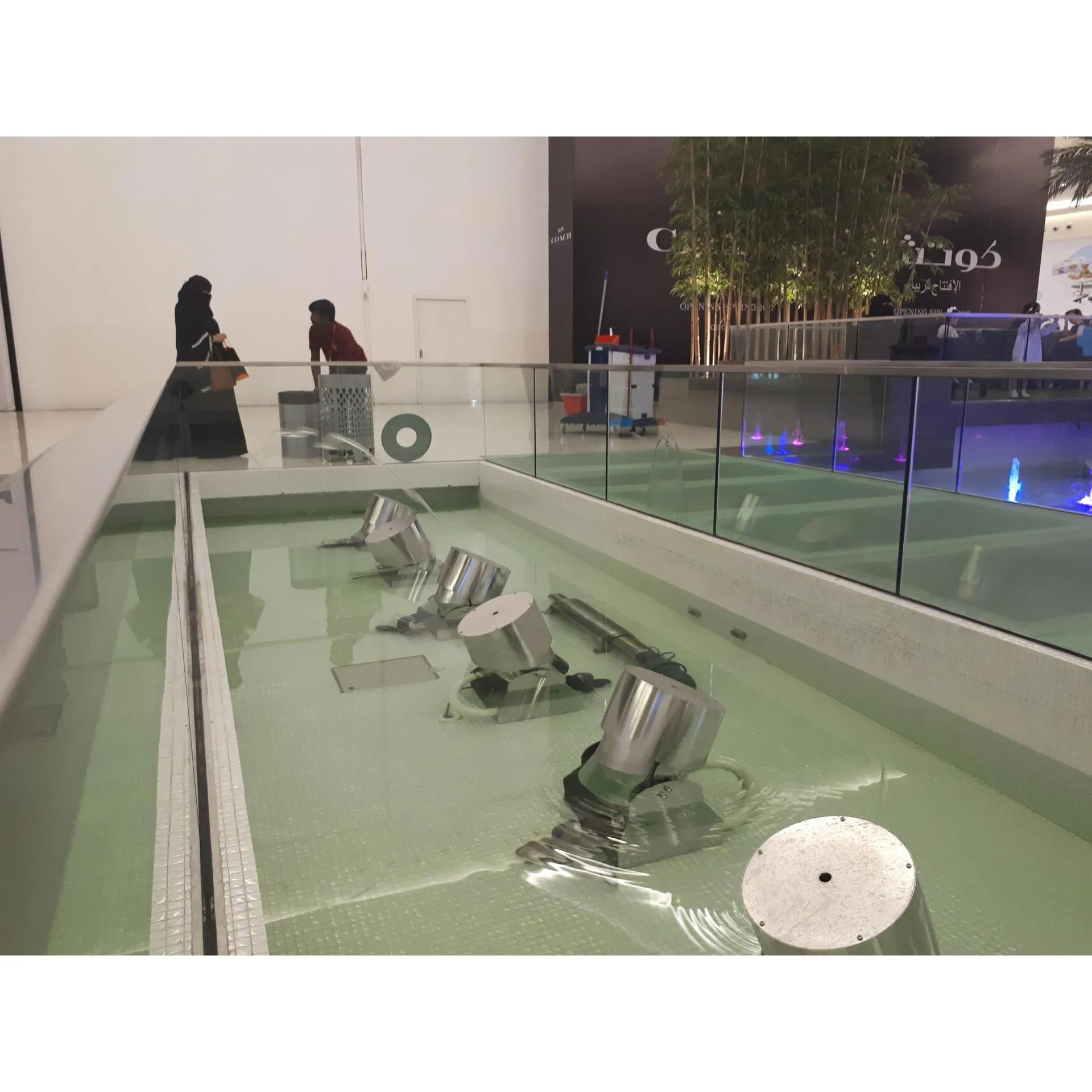

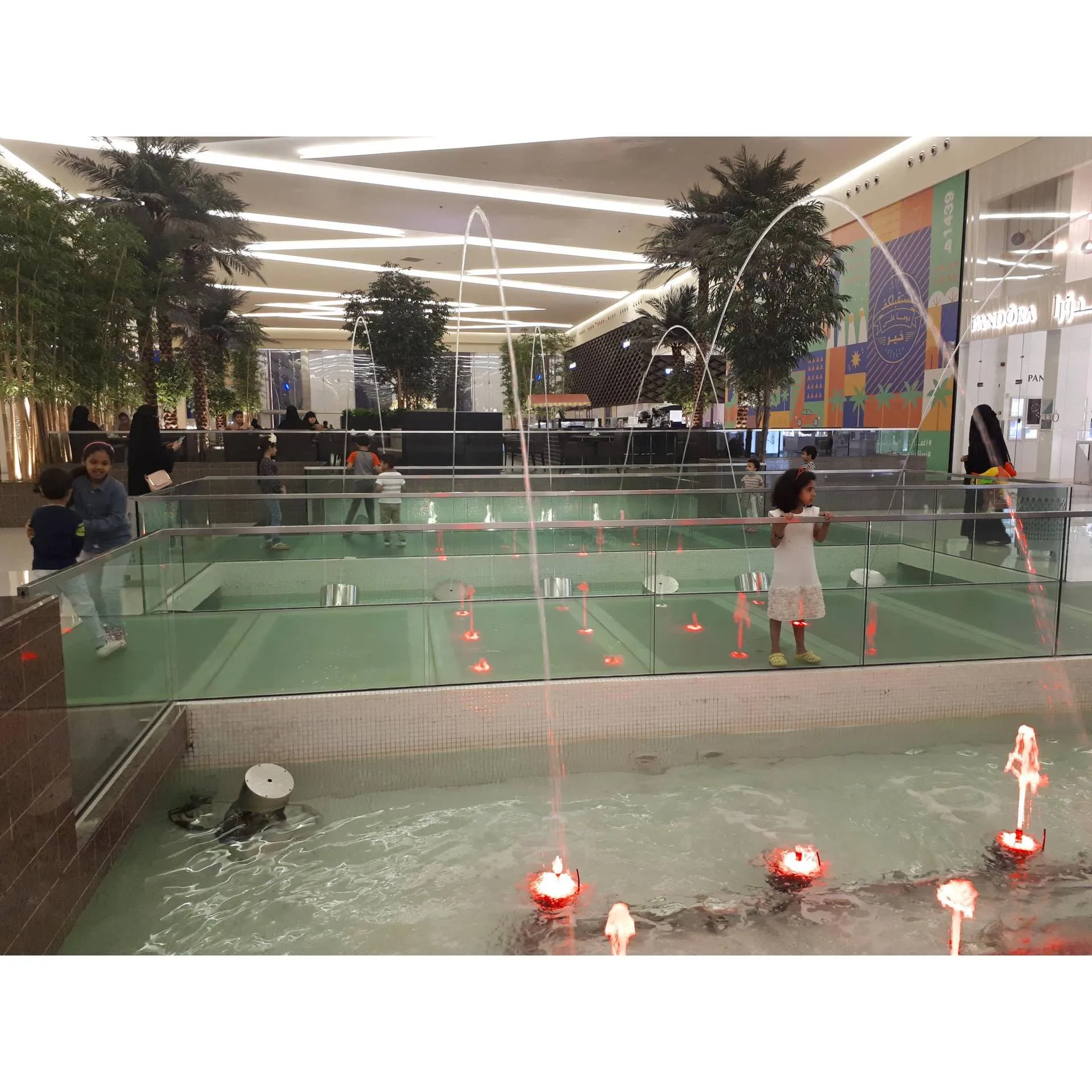

AquaJUMP-GIANT units are designed to create stunning water arches, making them an effective choice for spaces with size limitations, including indoor areas. They are also ideal for sectional use or for pools with varying altitude levels. The height and end point of the arches can be adjusted by changing the angle of the water outlet. The AquaJUMP system features RGBW-LED lighting, offering a wide range of color options. Additionally, the water arches can be segmented into small laminar sections with an optional cutting unit, enhancing the visual effect.

  • Robust Stainless Steel Body
  • 24VDC Powered & DMX-RDM Controlled
  • IP68 Socket One Cable Connection
  • Syncronorm Depence Library available
  • Slice/On-Off Function
  • Parabolic Water Arches with Ø12mm or Ø16mm
  • Laminar Flow Jumping Jets

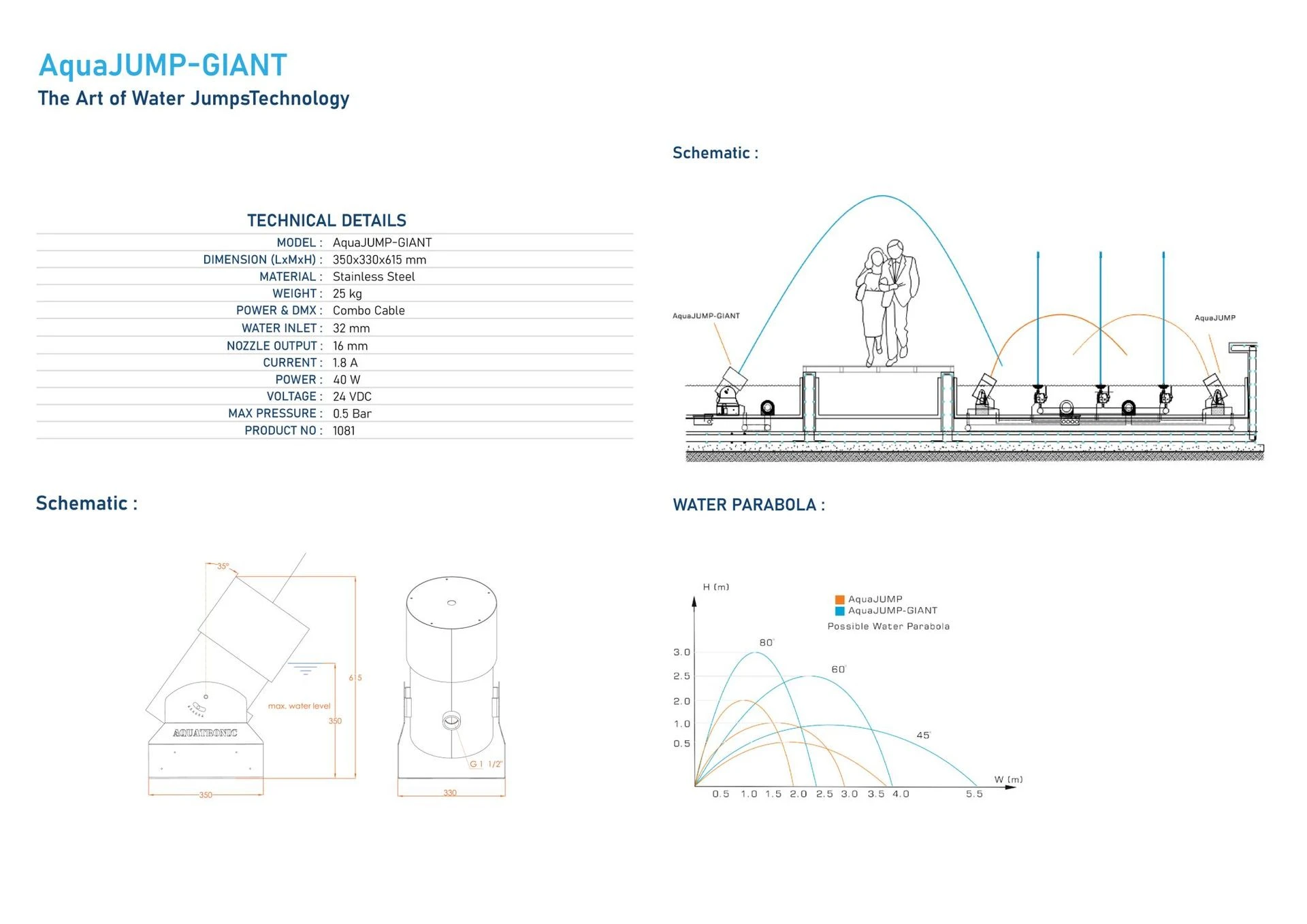

Technical details

ModelAquaJUMP-GIANT
Dimension (L×W×H)350 × 330 × 615 mm
MaterialStainless steel
Weight25 kg
Water inlet32 mm
Nozzle output16 mm
Max. water level350 mm
Max. pressure0.5 bar
Power & DMXCombo cable
Voltage24 VDC
Power40 W
Current1.8 A
Product no1081
Request information
