AquaROBO
MOVABLE IN DUAL AXIS NOZZLE, NOW WITH IMU-SENSOR

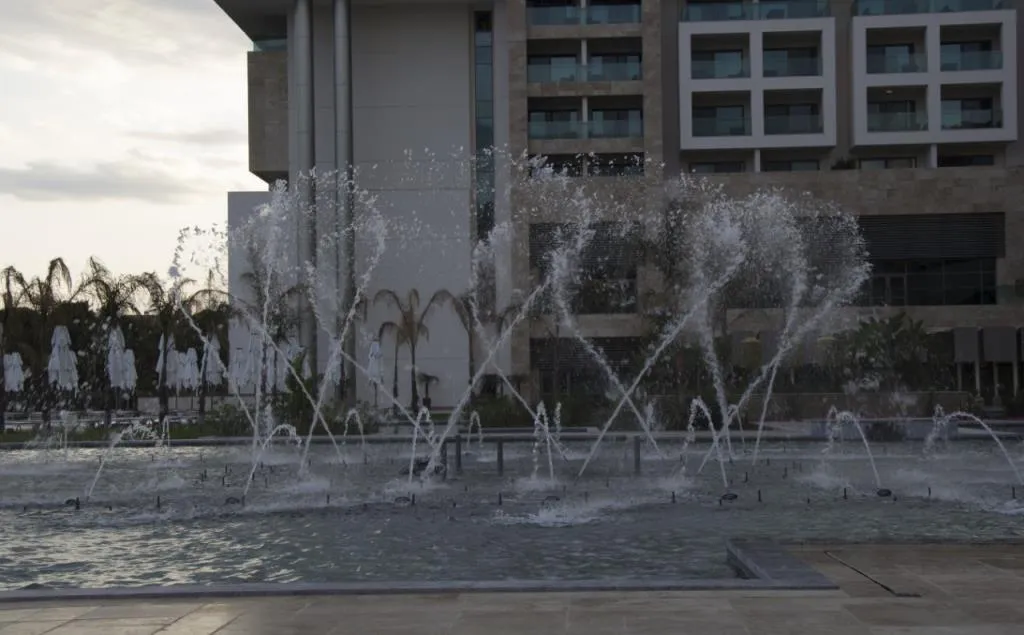

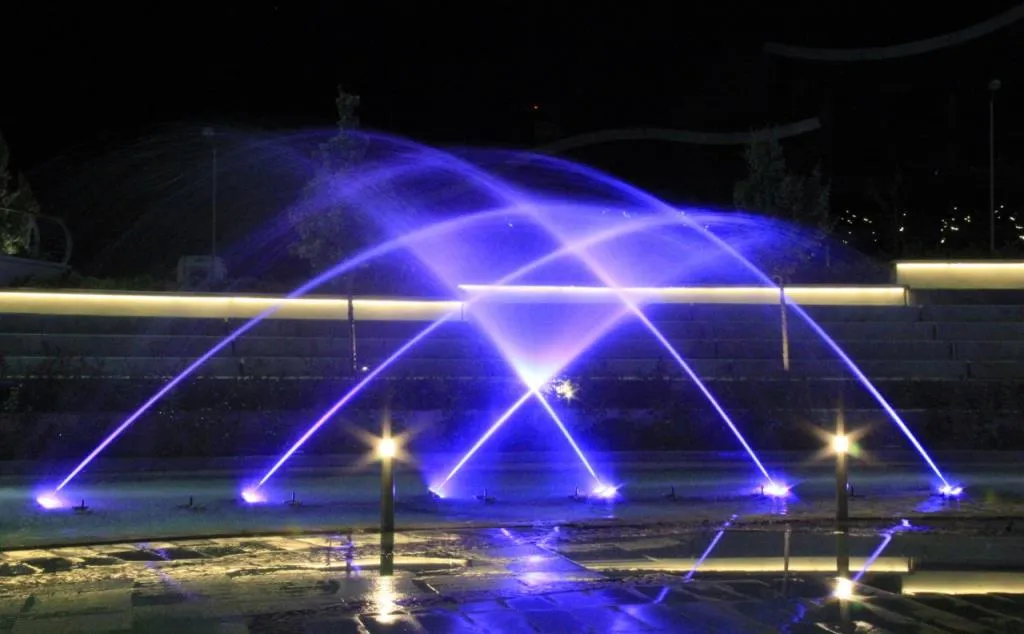

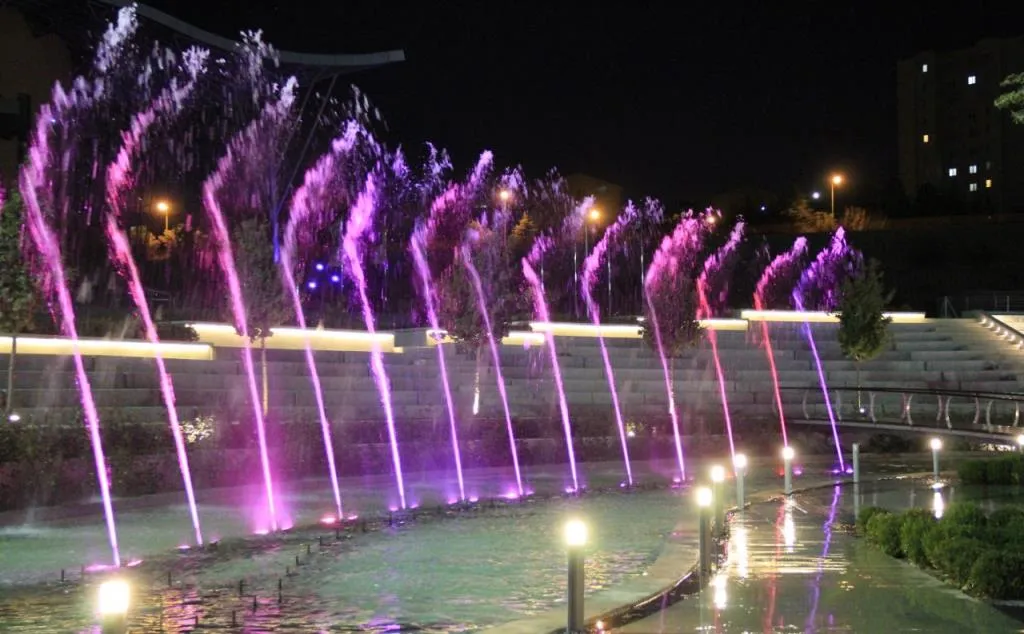

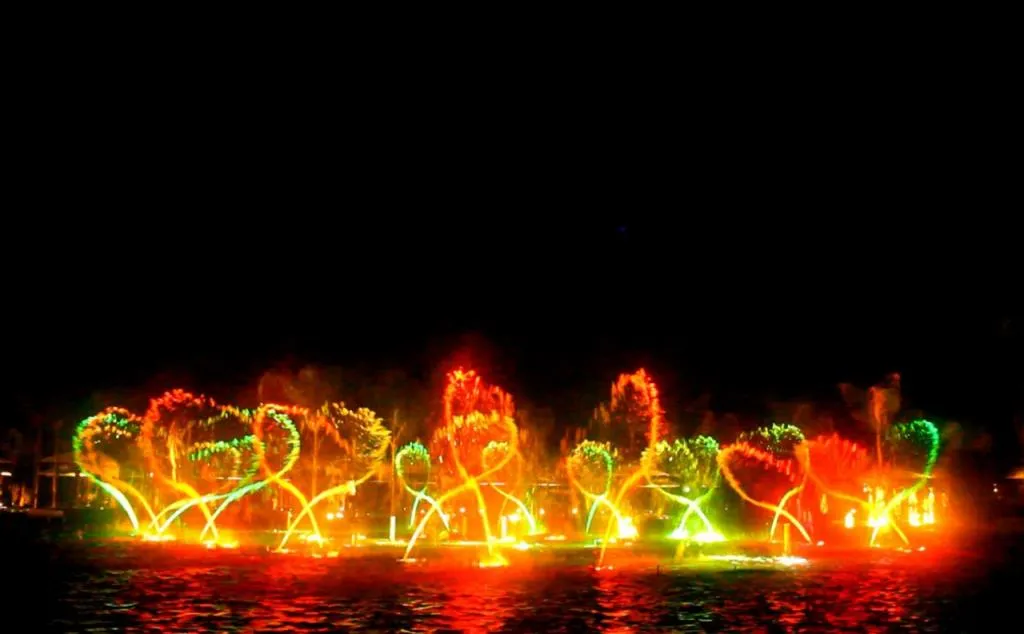

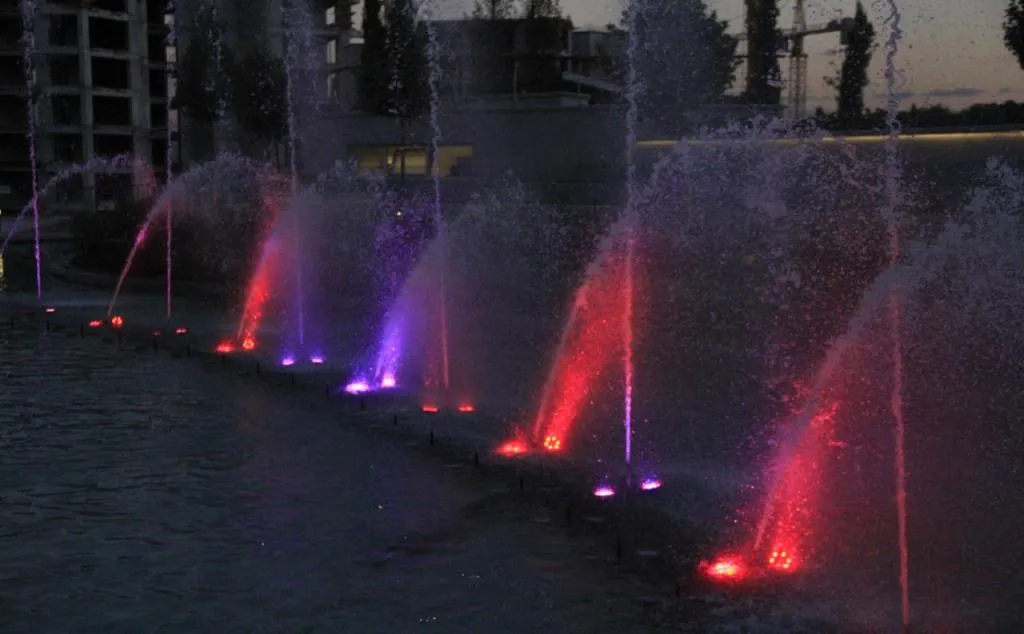

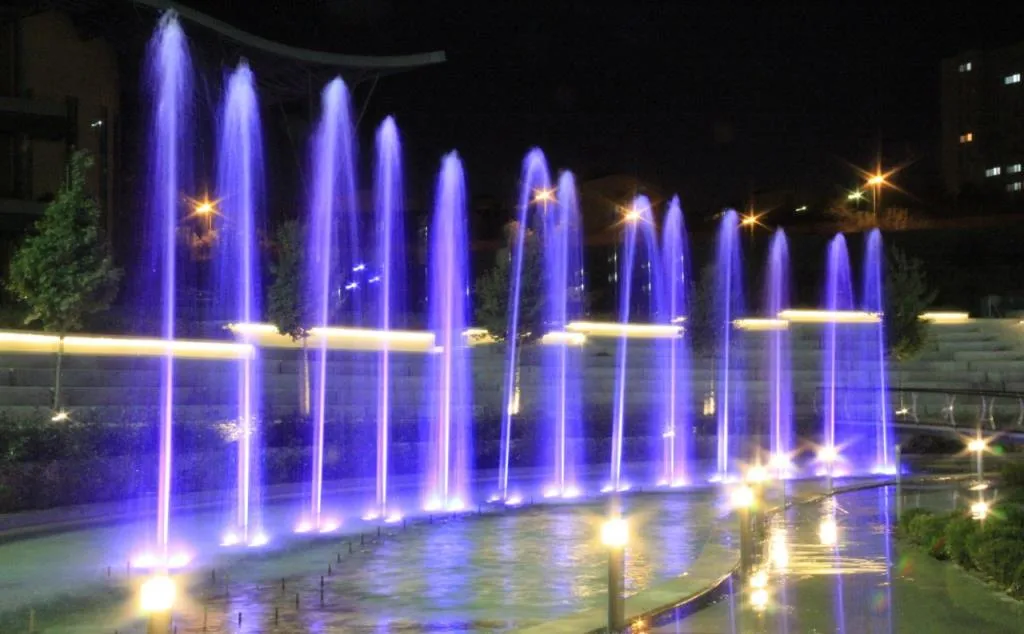

Enhance your animated fountain with our moving nozzles, designed to bring water to life! These advanced nozzles create dynamic, choreographed water patterns that dance and swirl, captivating audiences with their fluid motion. Ideal to catch the rhythms of music for animated fountains projects. With easy integration and reliable performance, they are the perfect addition to any animated fountain, transforming your water feature into an incredible visual attraction.
- Robust Stainless Steel Body
- 24VDC Powered & DMX-RDM Controlled
- IP68 Socket One Cable Connection
- Syncronorm Depence Library available
- Different Nozzle Types With Flange Connection
- 180° Moving Angle on Each Axis
- IMU Sensor Integrated for Auto Calibration
- AquaLIGHT x2 (Optional)
- Park Position and Zero Position Commands
- Servo Drive Control on 2-axis
Technical details
| Model | AquaROBO |
|---|---|
| Dimension (L×W×H) | 600 × 727 × 730 mm |
| Material | Stainless steel |
| Weight | 18 kg |
| Water inlet | 2" NPT |
| Nozzle output | 1½" |
| Max. pressure | 3.3 bar |
| Power & DMX | Combo cable |
| Voltage | 24 VDC |
| Power | 48 W |
| Current | 2 A |
| Product no | 1001 |
Performance
| Ø17 | Ø20 | Ø23 | ||||
|---|---|---|---|---|---|---|
| Height (m) | l/min | bar | l/min | bar | l/min | bar |
| 2.00 | 88 | 0.25 | 115 | 0.28 | 124 | 0.30 |
| 3.00 | 109 | 0.32 | 141 | 0.40 | 160 | 0.47 |
| 5.00 | 141 | 0.68 | 200 | 0.57 | 240 | 0.76 |
| 7.50 | 175 | 0.91 | 256 | 0.84 | 300 | 1.12 |
| 10.00 | 200 | 1.24 | 294 | 1.28 | 350 | 1.55 |
| 12.50 | 226 | 1.55 | 335 | 1.57 | 420 | 1.82 |
| 15.00 | 360 | 1.91 | 443 | 2.30 | ||
| 20.00 | 420 | 2.62 | 550 | 2.90 | ||
