AquaROBO - ROLL
WATER DANCE WITH ROLL MOTION

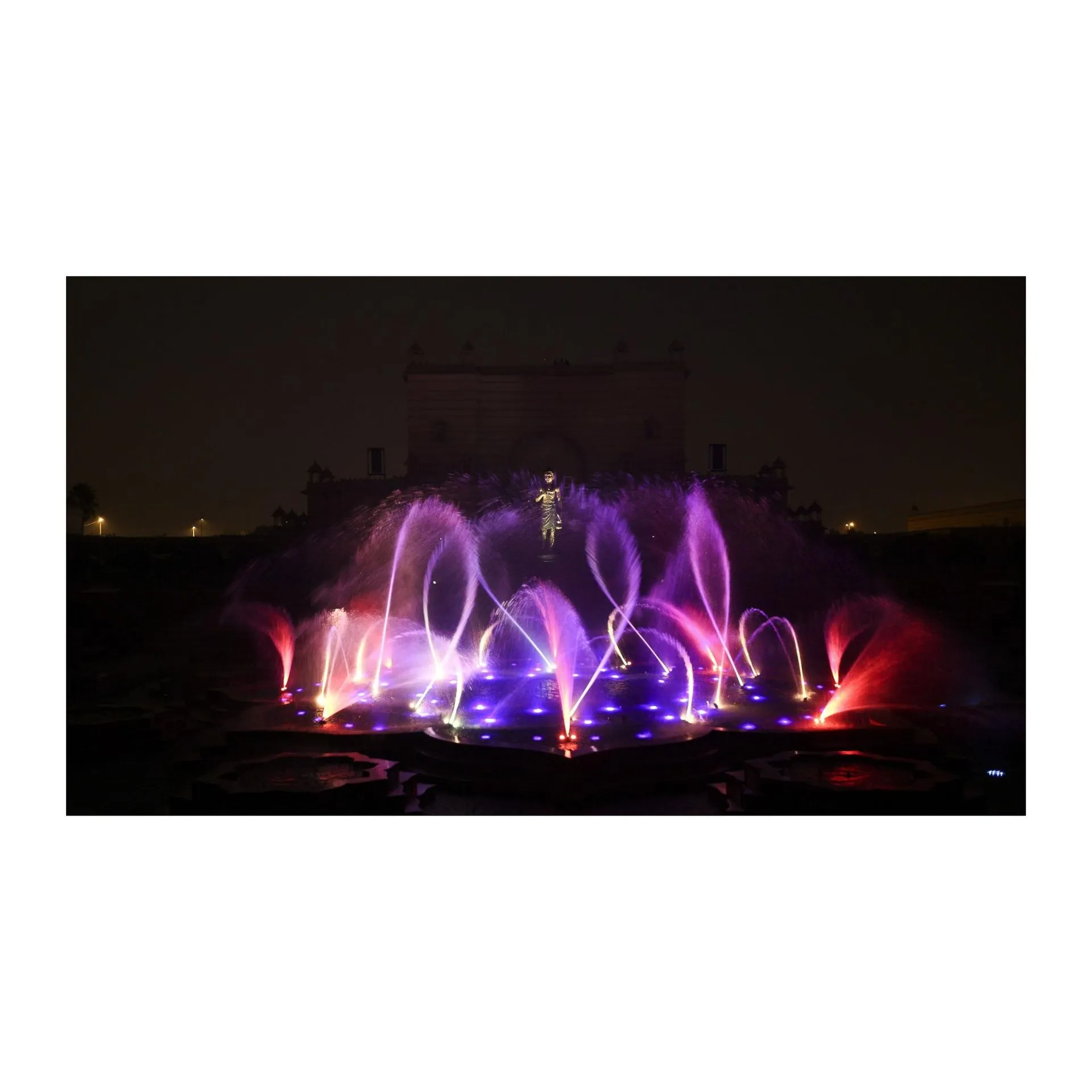

Experience the enchantment of dancing water with our state-of-the-art AquaSWING moving nozzles. Controlled by DMX, this high-performance nozzle brings your fountain to life, creating mesmerizing water patterns that swirl and leap in perfect harmony. Even with its single-axis design, AquaSWING offers incredible possibilities, pivoting 180° on the X-axis. The unit, controlled by one sensor and motor, amazes with its seamless performance and compact design, standing out among similar products. Adding dynamic effects with AquaSWING will elevate the charm and appeal of your fountain.
X-axis 180°, to +/-90° from Zero Position Y-axis 180°, to +90°/ -70° from Zero Position Z-axis 360°, limitless
- Robust Stainless Steel Body
- 24VDC Powered & DMX-RDM Controlled
- IP68 Socket One Cable Connection
- Syncronorm Depence Library available
- Different Nozzle Types With Flange Connection
- IMU Sensor Integrated for Auto Calibration
- AquaLIGHT x2 (Optional)
- Park Position and Zero Position Commands
- Servo Drive Control on 3-axis
- Moving Axis;
- X-axis 180°, to +/-90° from Zero Position Y-axis 180°, to +90°/ -70° from Zero Position Z-axis 360°, limitless

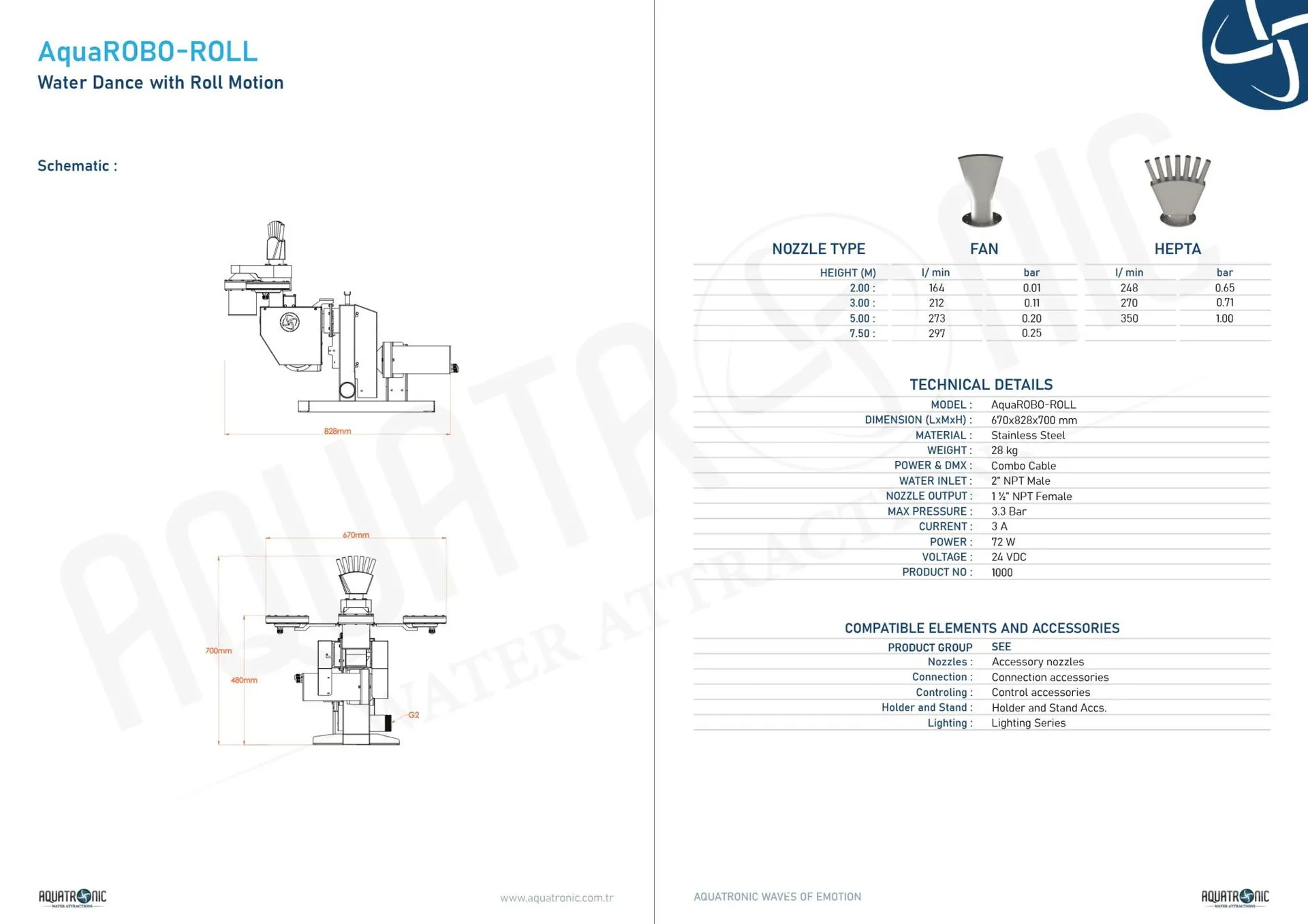

Technical details
| Model | AquaROBO-ROLL |
|---|---|
| Dimension (L×W×H) | 670 × 828 × 700 mm |
| Material | Stainless steel |
| Weight | 28 kg |
| Water inlet | 2" NPT male |
| Nozzle output | 1½" NPT female |
| Max. pressure | 3.3 bar |
| Power & DMX | Combo cable |
| Voltage | 24 VDC |
| Power | 72 W |
| Current | 3 A |
| Product no | 1000 |
Performance
| Fan | Hepta | |||
|---|---|---|---|---|
| Height (m) | l/min | bar | l/min | bar |
| 2.00 | 164 | 0.01 | 248 | 0.65 |
| 3.00 | 212 | 0.11 | 270 | 0.71 |
| 5.00 | 273 | 0.20 | 350 | 1.00 |
| 7.50 | 297 | 0.25 | ||
