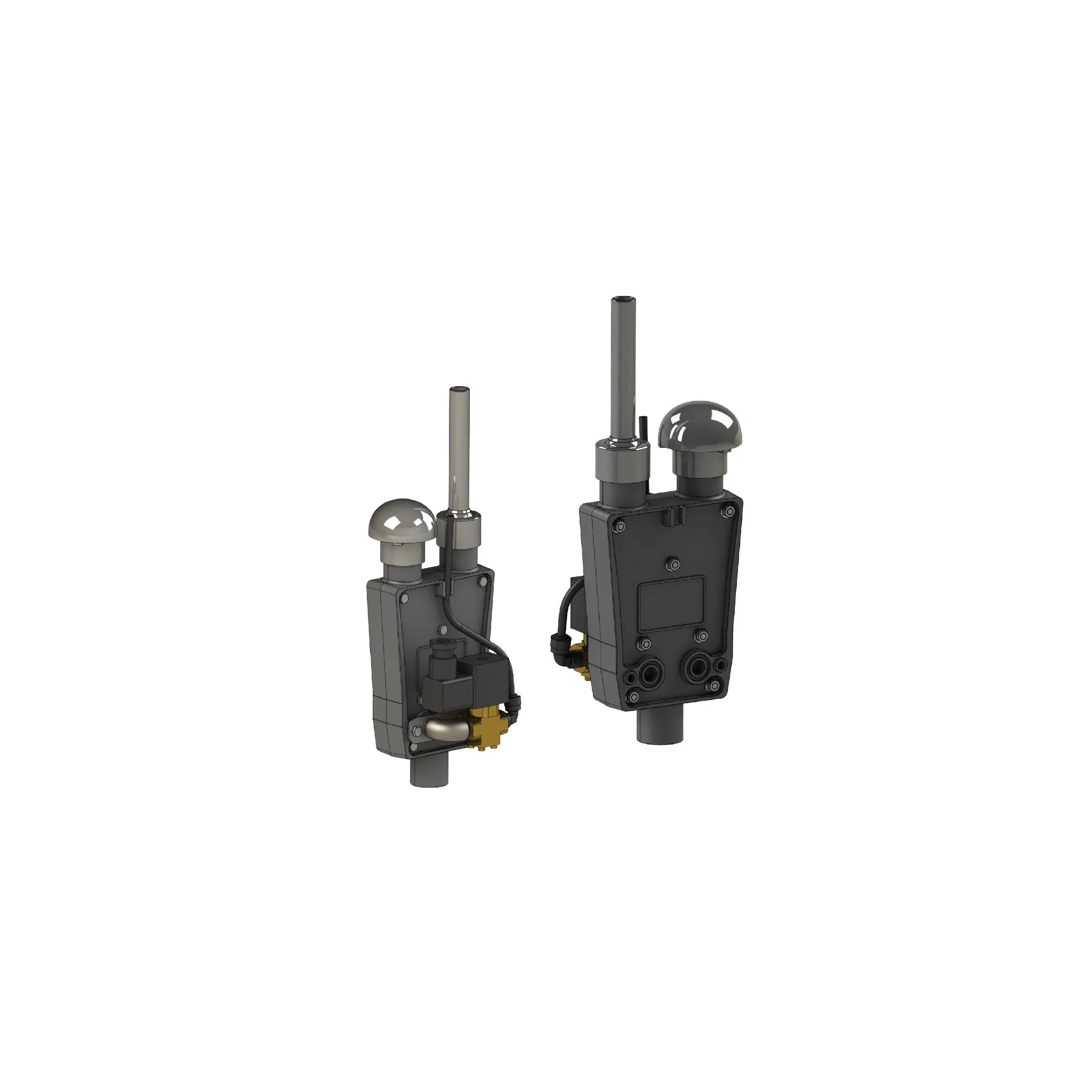

AquaSWITCH
Instant Water Show: Rapid Turn On/Off with AquaSWITCH!
Instant Water Show: Rapid Turn On/Off with AquaSWITCH!

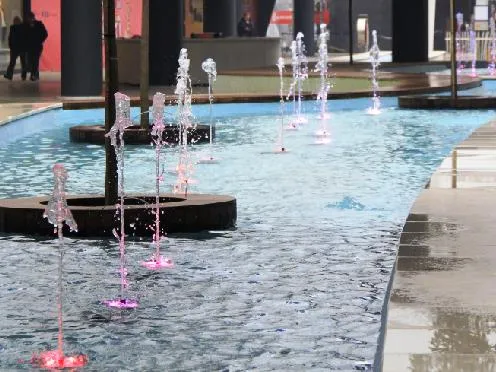

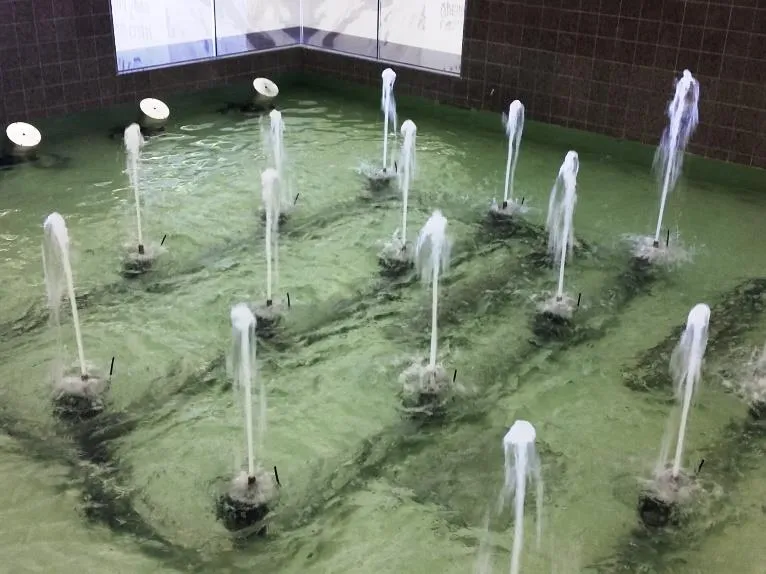

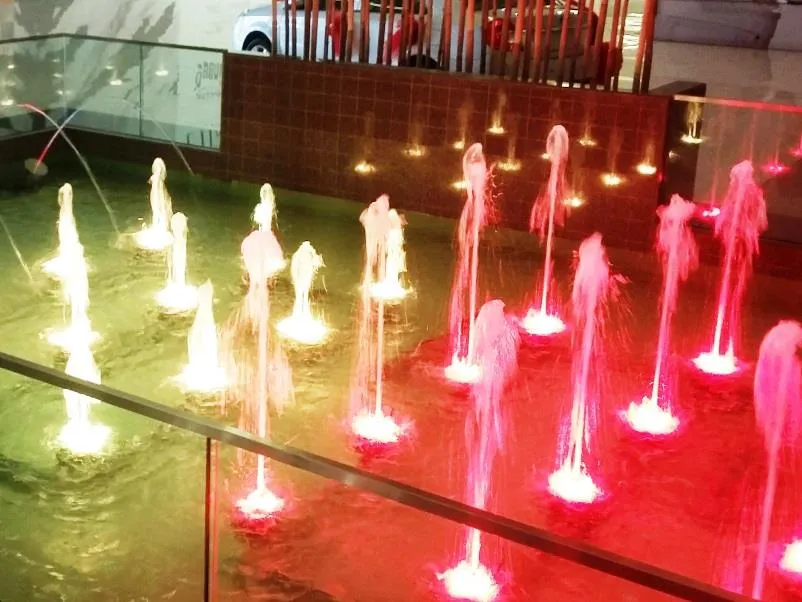

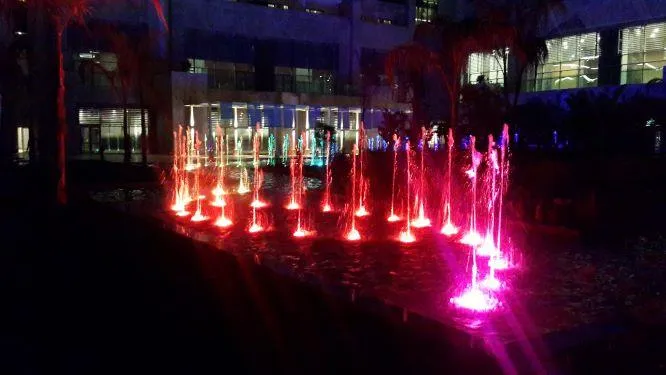

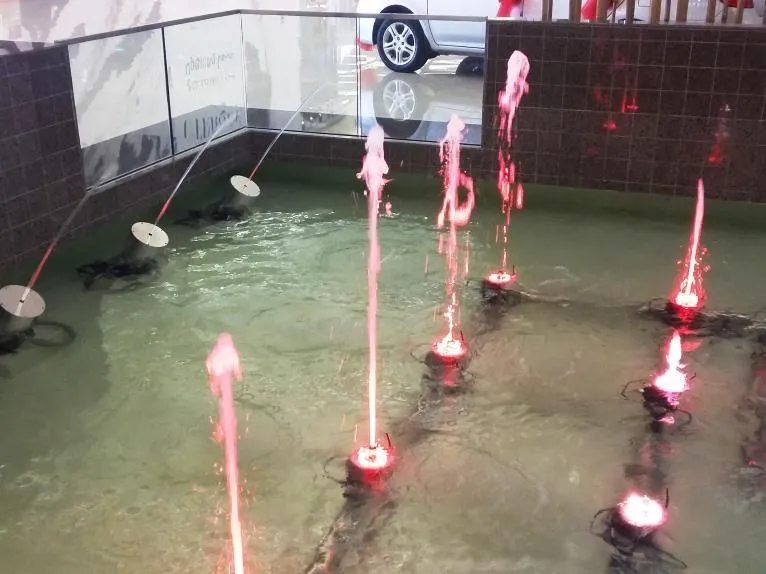

AquaSWITCH makes dynamic or musical fountain installations more enjoyable. This unit is used with suitable nozzle and a bypass-like 3/2 way valve that can switch without pressure loss or any water hammer effect in lines. It’s possible to have a switch time of 0,1s.
- Robust Stainless Steel Body
- 24VDC Powered & DMX-RDM Controlled
- IP68 Socket One Cable Connection
- Syncronorm Depence Library available
- AquaLIGHT X 2-3-4 (OPTIONAL)
- AIR-Vent to Speed Up to Refill
- Up to 30m Height AIR II, AIR I
- Up to 40m Height AIR III

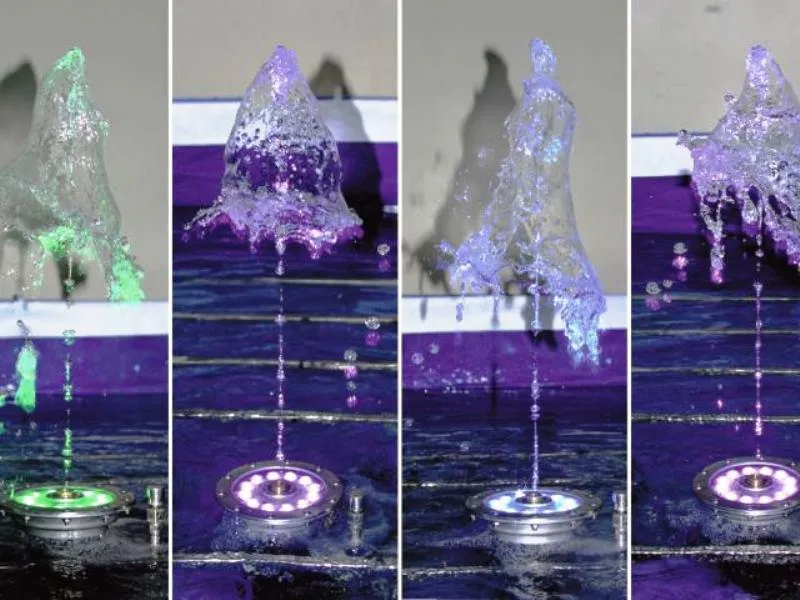

- Air Burst Effect with Water

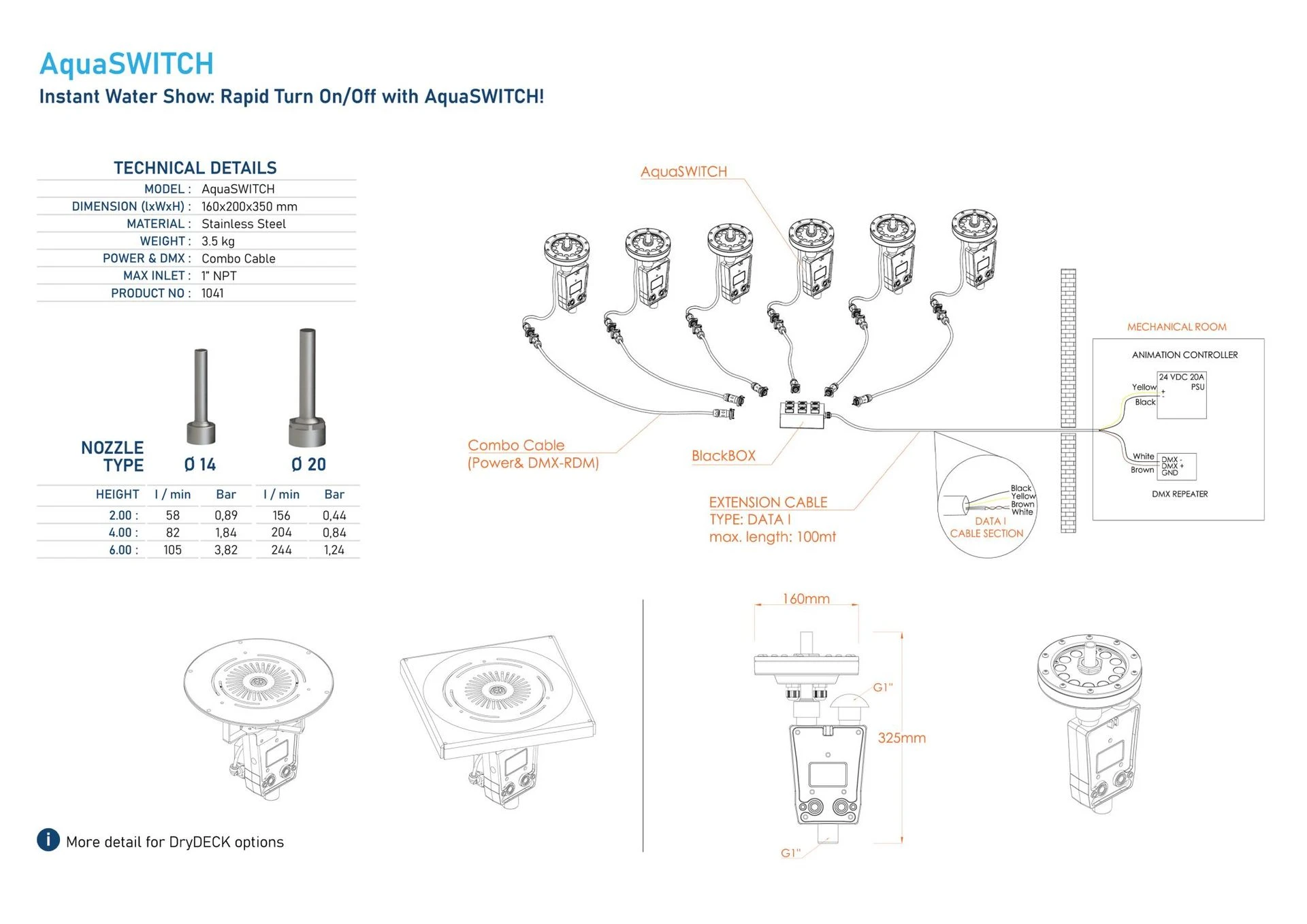

Technical details
| Model | AquaSWITCH |
|---|---|
| Dimension (L×W×H) | 160 × 200 × 350 mm |
| Material | Stainless steel |
| Weight | 3.5 kg |
| Max. inlet | 1" NPT |
| Power & DMX | Combo cable |
| Product no | 1041 |
Performance
| Ø14 | Ø20 | |||
|---|---|---|---|---|
| Height (m) | l/min | bar | l/min | bar |
| 2.00 | 58 | 0.89 | 156 | 0.44 |
| 4.00 | 82 | 1.84 | 204 | 0.84 |
| 6.00 | 105 | 3.82 | 244 | 1.24 |
