AquaTORCH
Light, water and Fire are the main pillars of animation.
Light, water and Fire are the main pillars of animation.

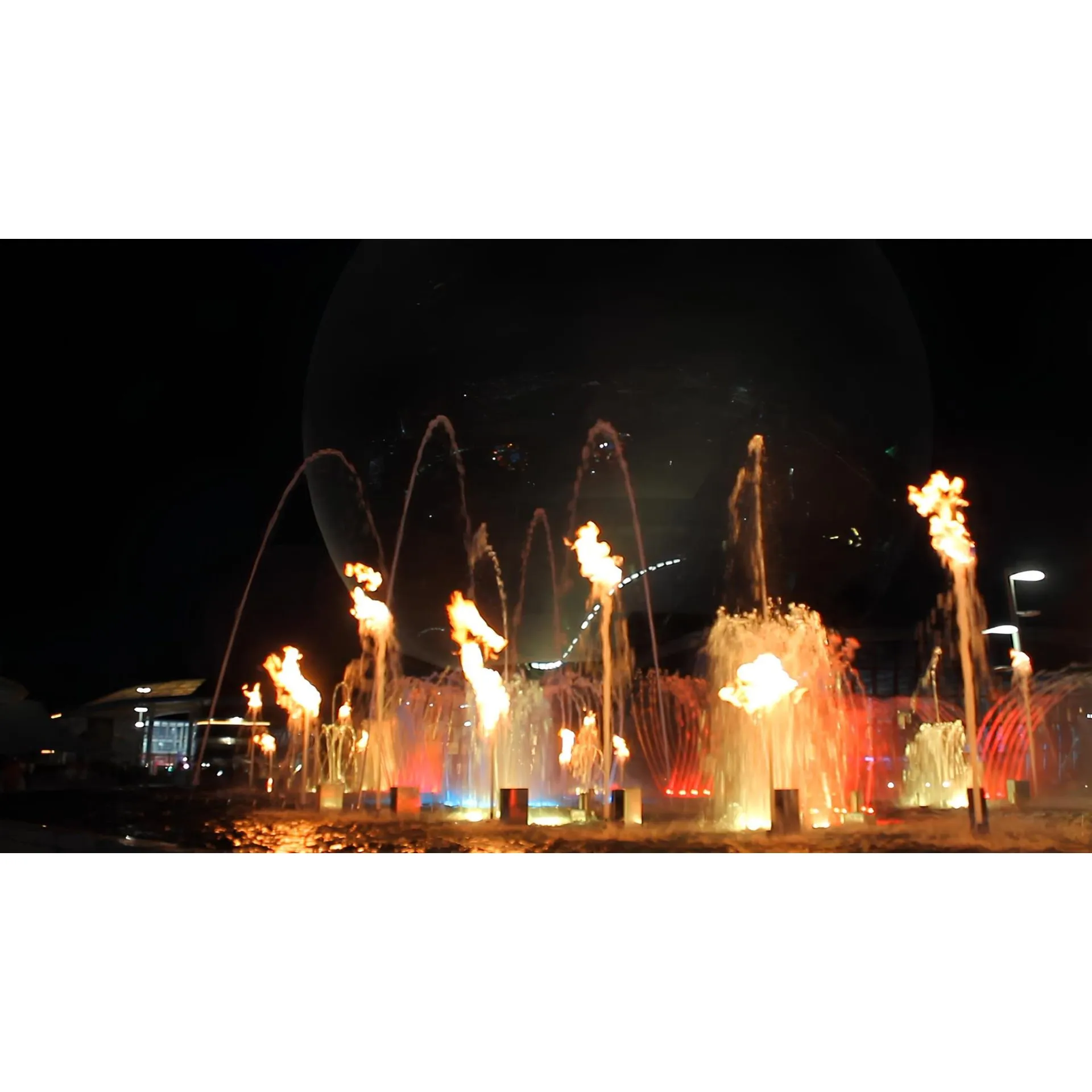

Light, Water and Fire; main three pillars of animation world, are united in AquaTORCH. The fire is move up to height of up to 3m water column by 24V DC pump. Optional individual lighting unit which occurs high power RGB LED, subjoins the device. The Pump, ignitor and optional lighting unit work with RDM integrated DMX protocol, under the control of a temperature sensor. You may achieve marvelous shows with numerous effect combinations. We offers hot animations as never before.
- DMX Controlled Solenoid & Ignition System
- Burn Protection Feature
- 150W Submersible DC Pump
- 1x AquaLIGHT Lighting Option
- 24VDC Powered & DMX-RDM Controlled
- IP68 Socketed One Cable Connection
- Syncronorm Depence Library available
- Robust Stainless Steel Body

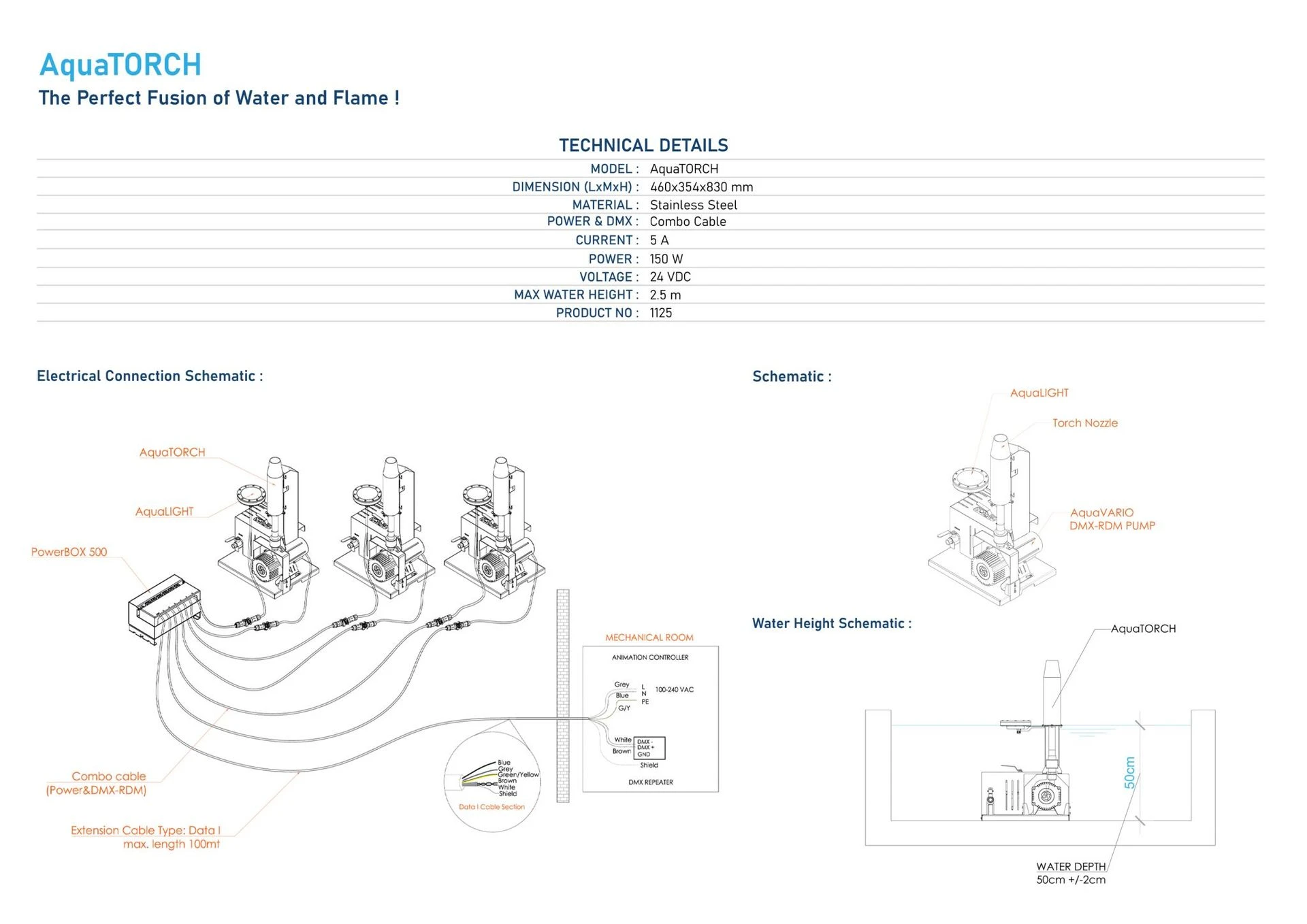

Technical details
| Model | AquaTORCH |
|---|---|
| Dimension (L×W×H) | 460 × 354 × 830 mm |
| Material | Stainless steel |
| Max. water height | 2.5 m |
| Water depth | 50 cm ±2 cm |
| Power & DMX | Combo cable |
| Voltage | 24 VDC |
| Power | 150 W |
| Current | 5 A |
| Product no | 1125 |
