AquaBLAST
THE PINNACLE OF WATER SHOWS!

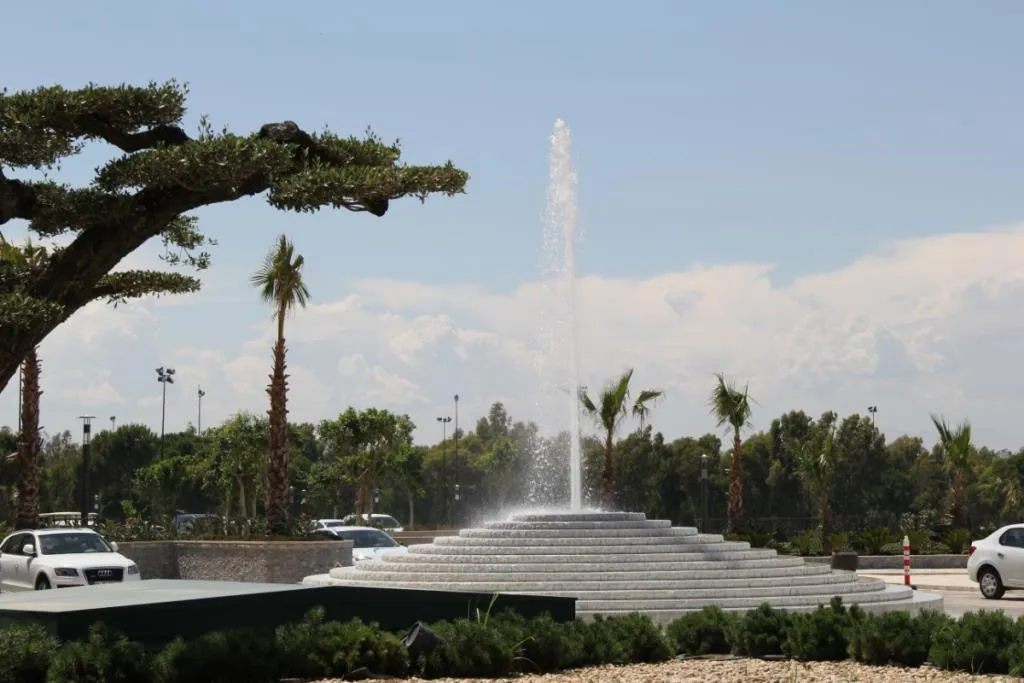

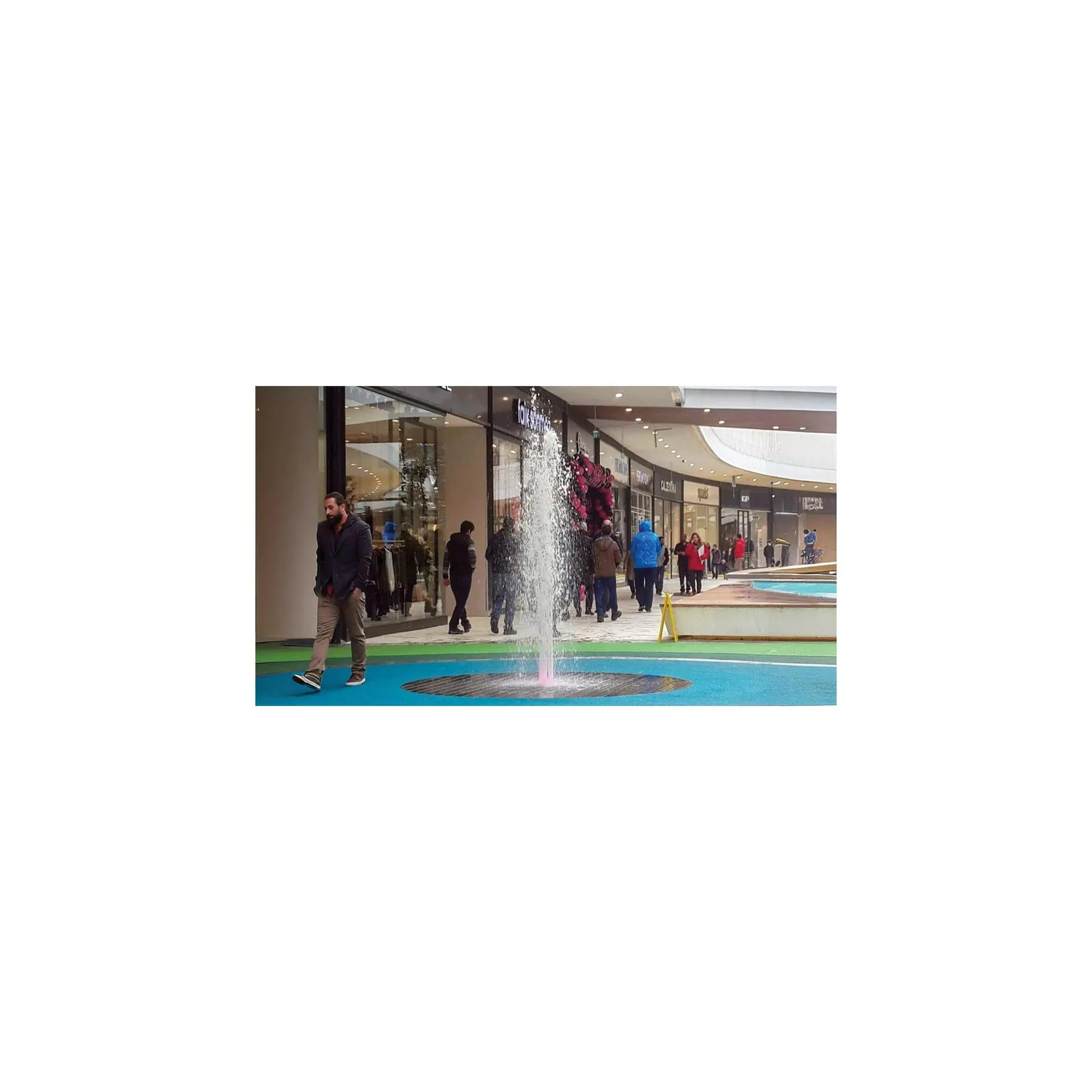

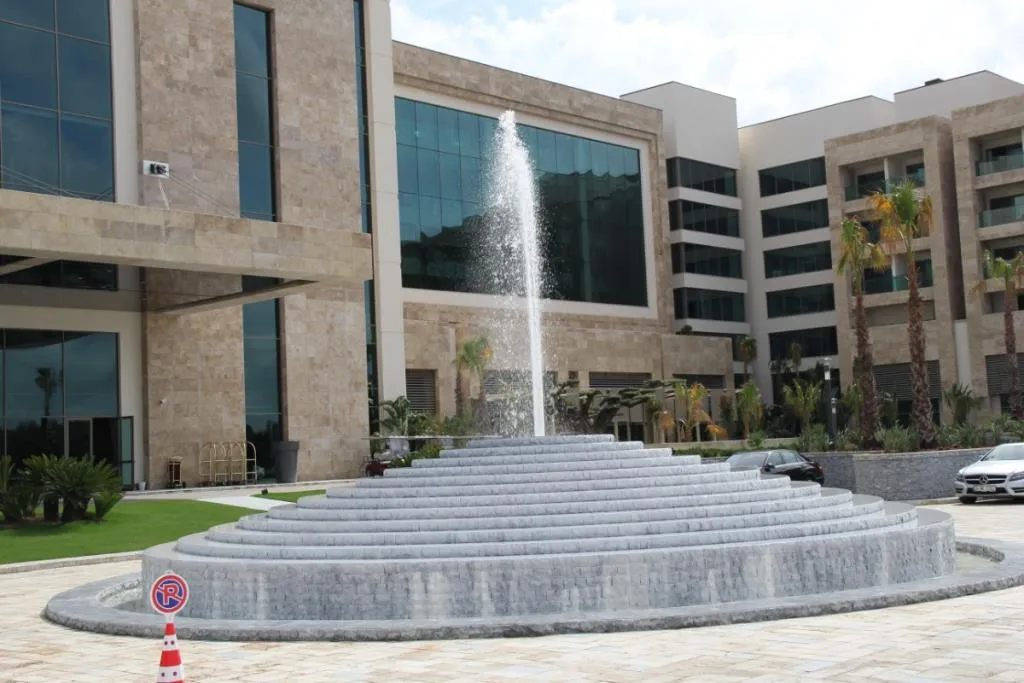

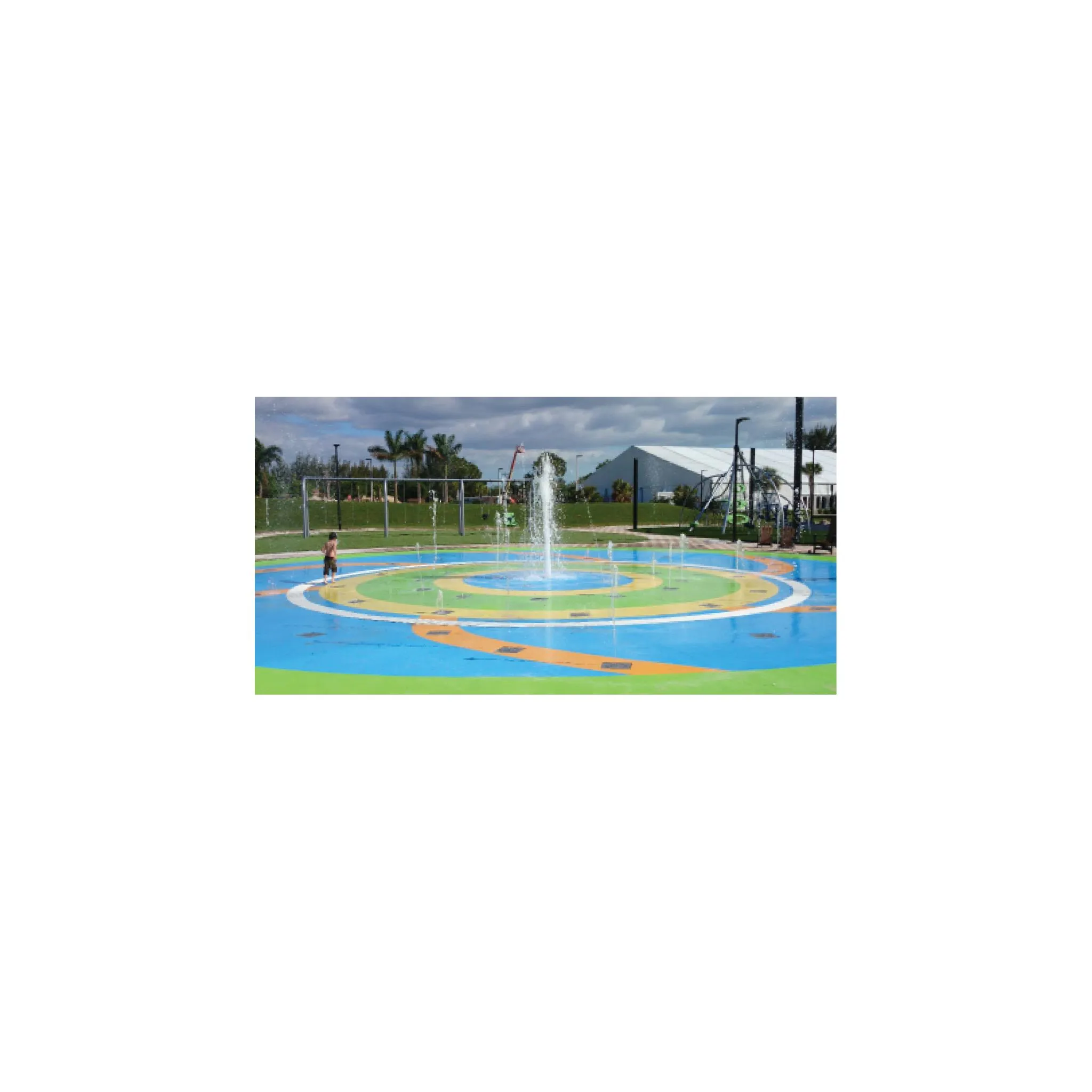

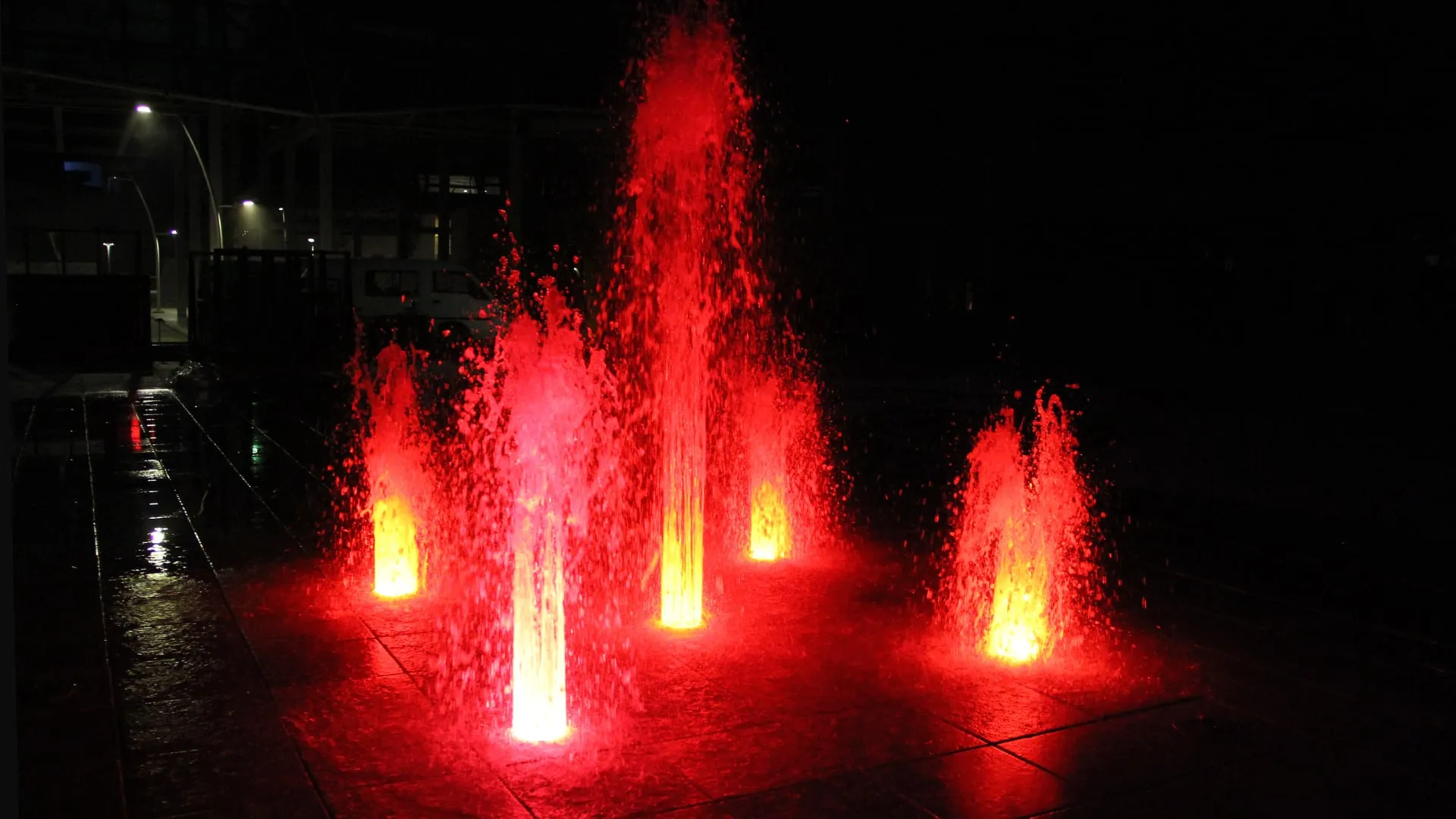

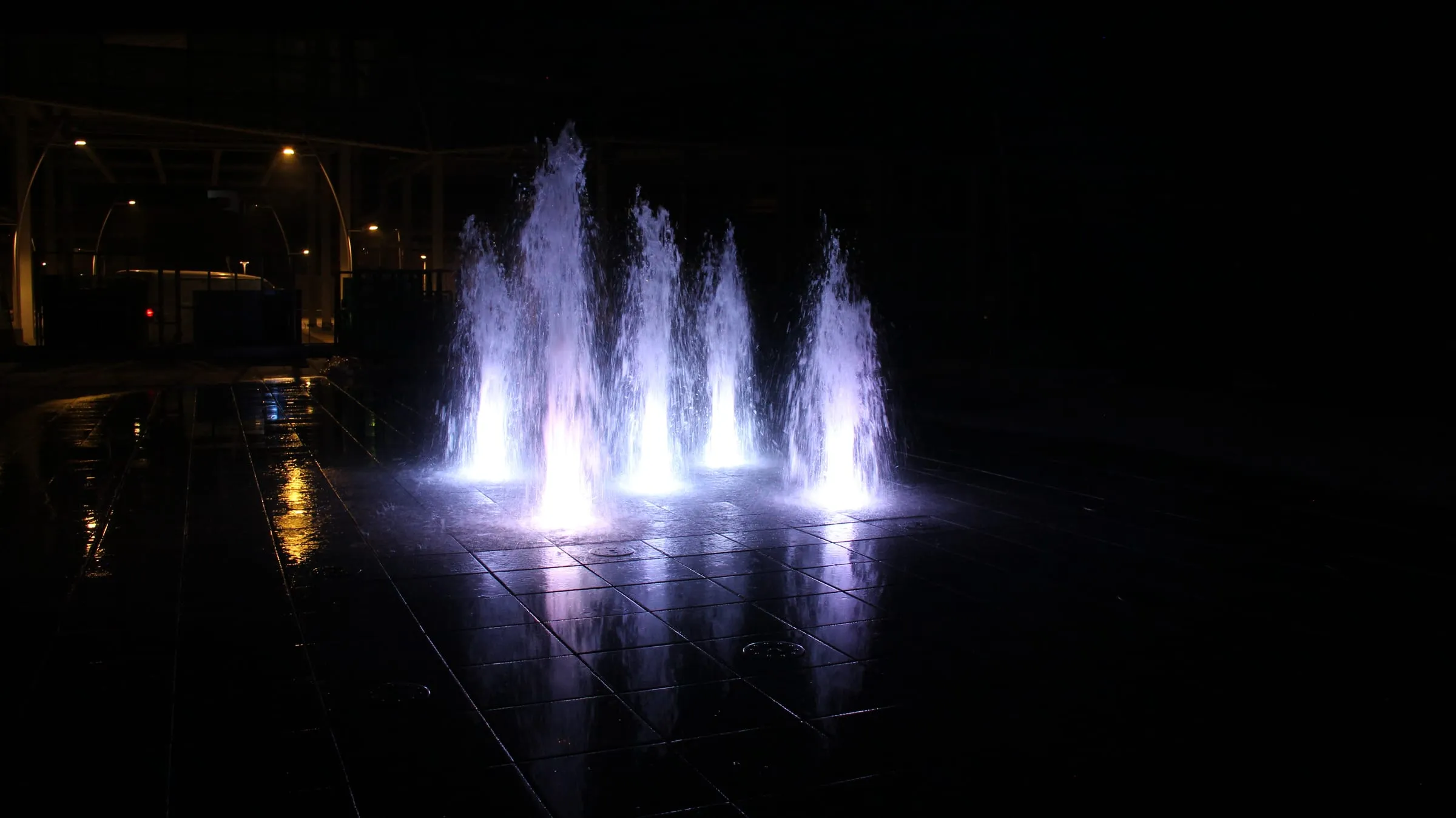

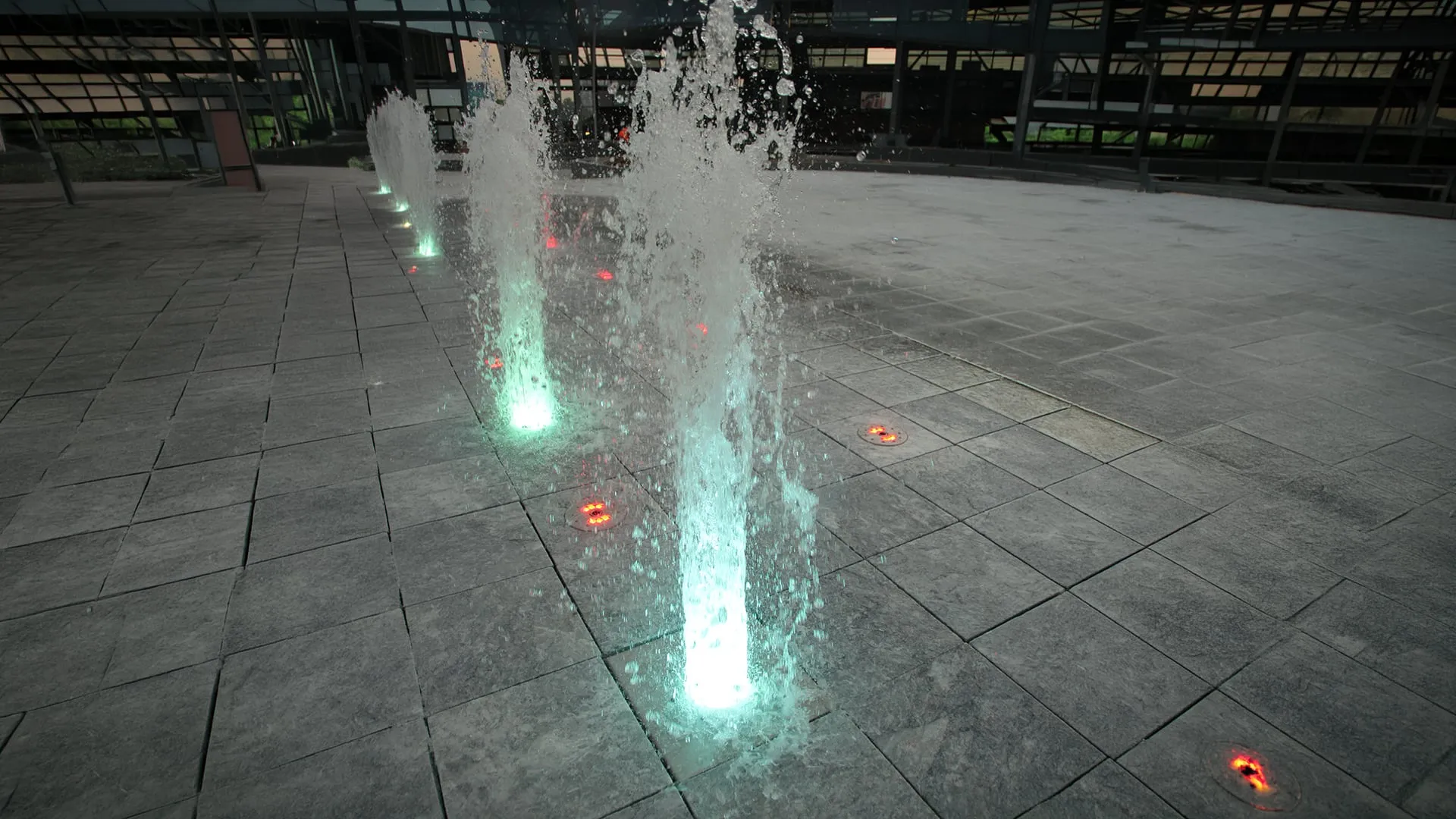

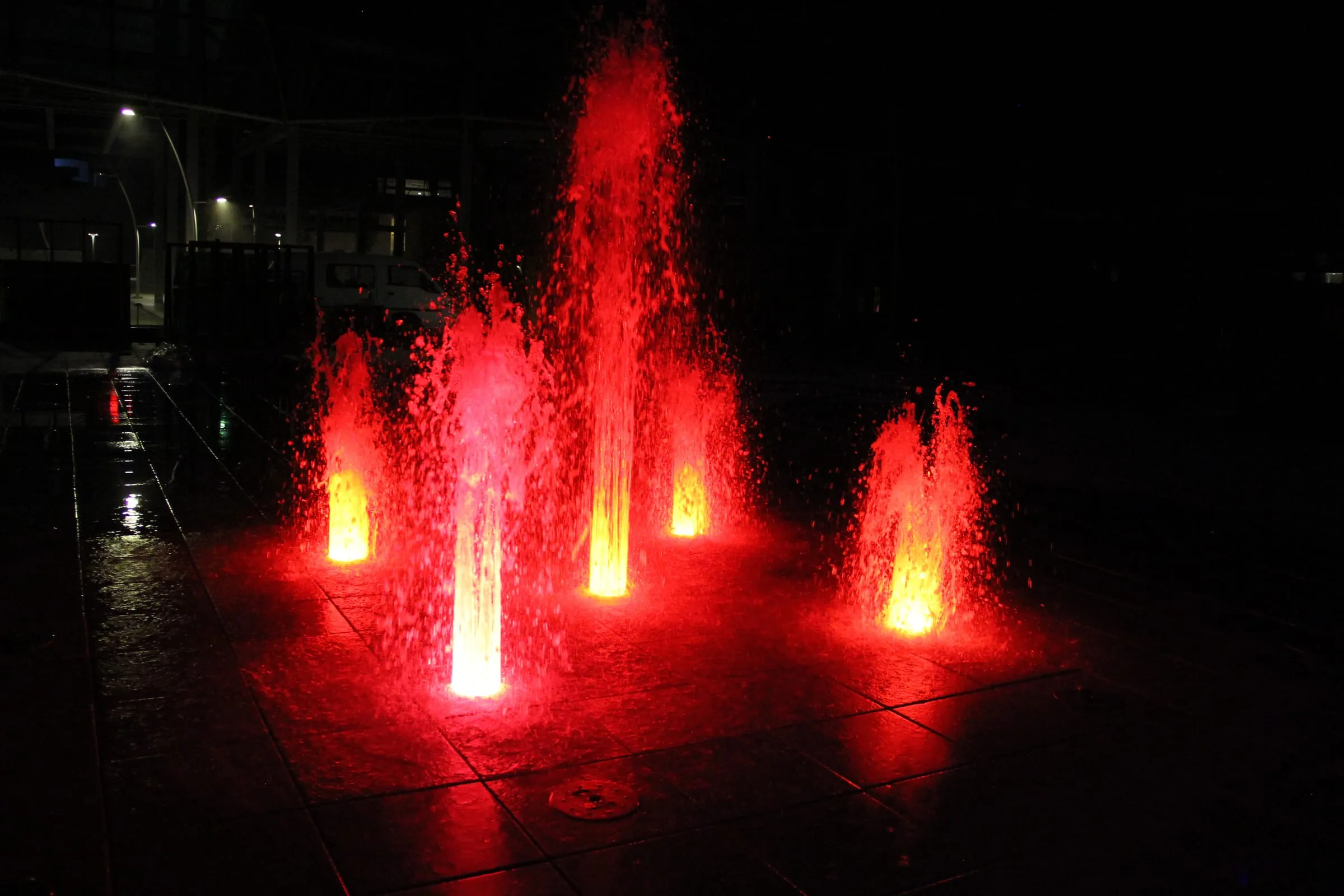

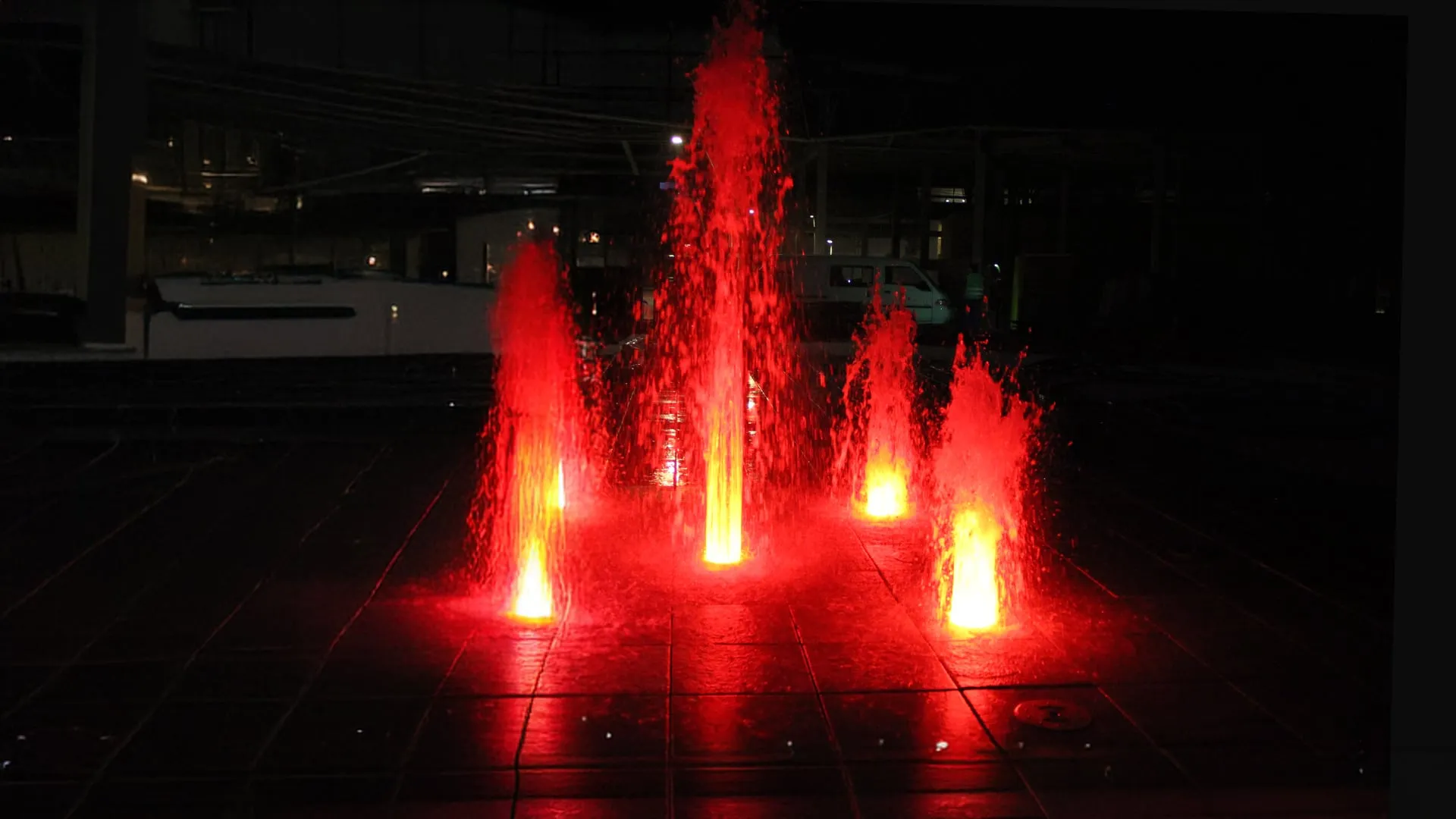

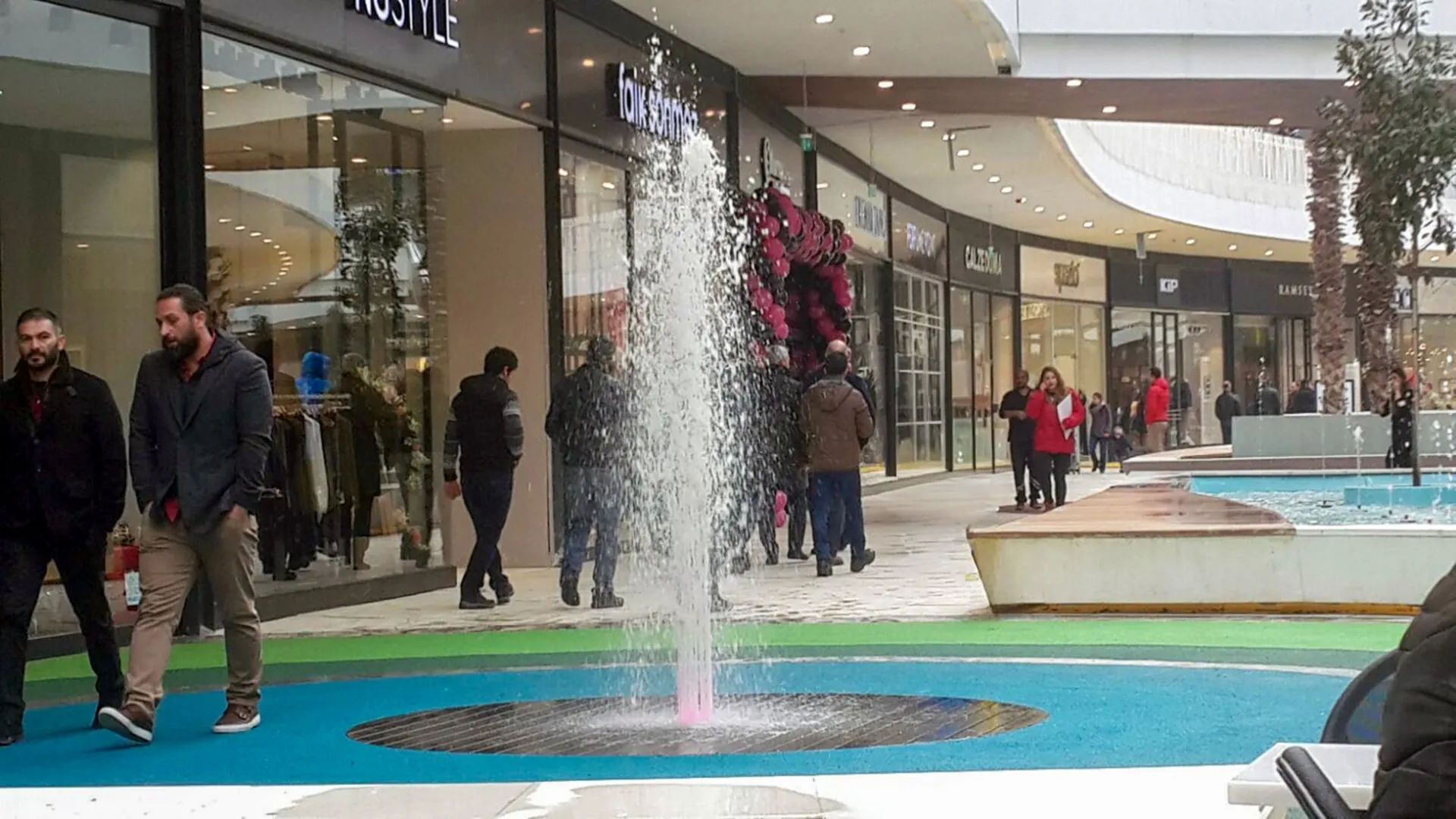

AquaBLAST produces an impressive water column effect. The system features a 1 ½” water inlet, and its specially designed outlet creates the illusion of a much thicker water column during the show. Additionally, various numbers of AquaLIGHTs can be assembled to make the show even more spectacular at night.
- AquaLIGHT 1 (Optional)
- Robust Stainless Steel Body
- Water inlet 1 ½” NPT Female
- The Diameter of water column 133mm

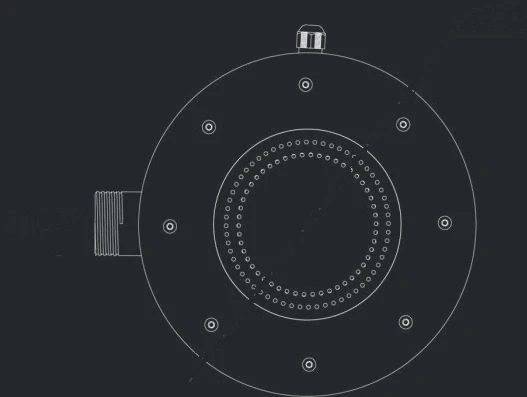

- Concentric Double Row Designed Top plate

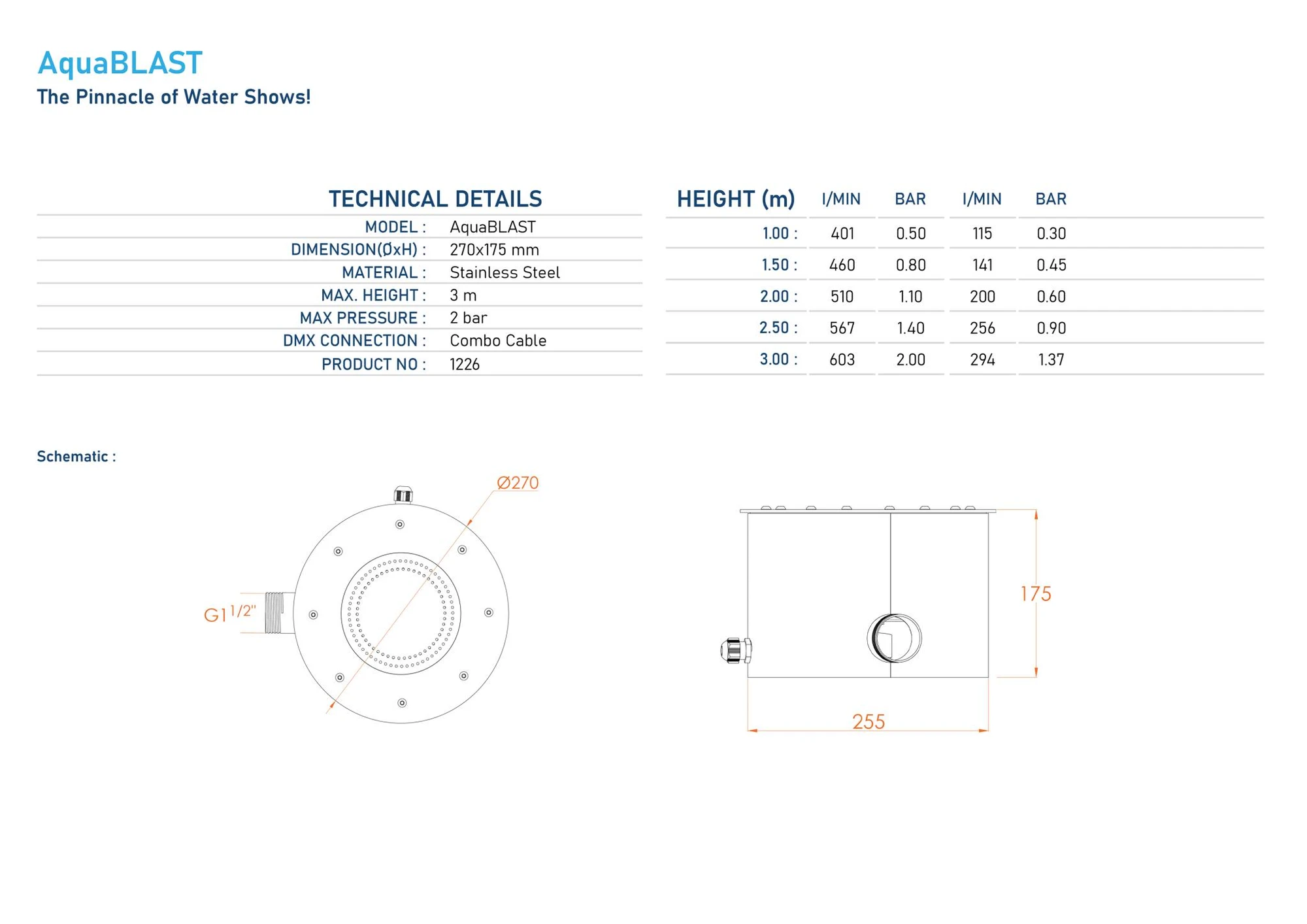

Technical details
| Model | AquaBLAST |
|---|---|
| Dimension (Ø×H) | 270 × 175 mm |
| Material | Stainless steel |
| Max. height | 3 m |
| Max. pressure | 2 bar |
| DMX connection | Combo cable |
| Product no | 1226 |
Performance
| Height (m) | l/min | bar | l/min | bar |
|---|---|---|---|---|
| 1.00 | 401 | 0.50 | 115 | 0.30 |
| 1.50 | 460 | 0.80 | 141 | 0.45 |
| 2.00 | 510 | 1.10 | 200 | 0.60 |
| 2.50 | 567 | 1.40 | 256 | 0.90 |
| 3.00 | 603 | 2.00 | 294 | 1.37 |
