DryDeck B SWITCH

DryDECK B SWITCH

DryDeck B SWITCH
DryDeck B SWITCH
DryDeck B SWITCH
DryDeck B SWITCH

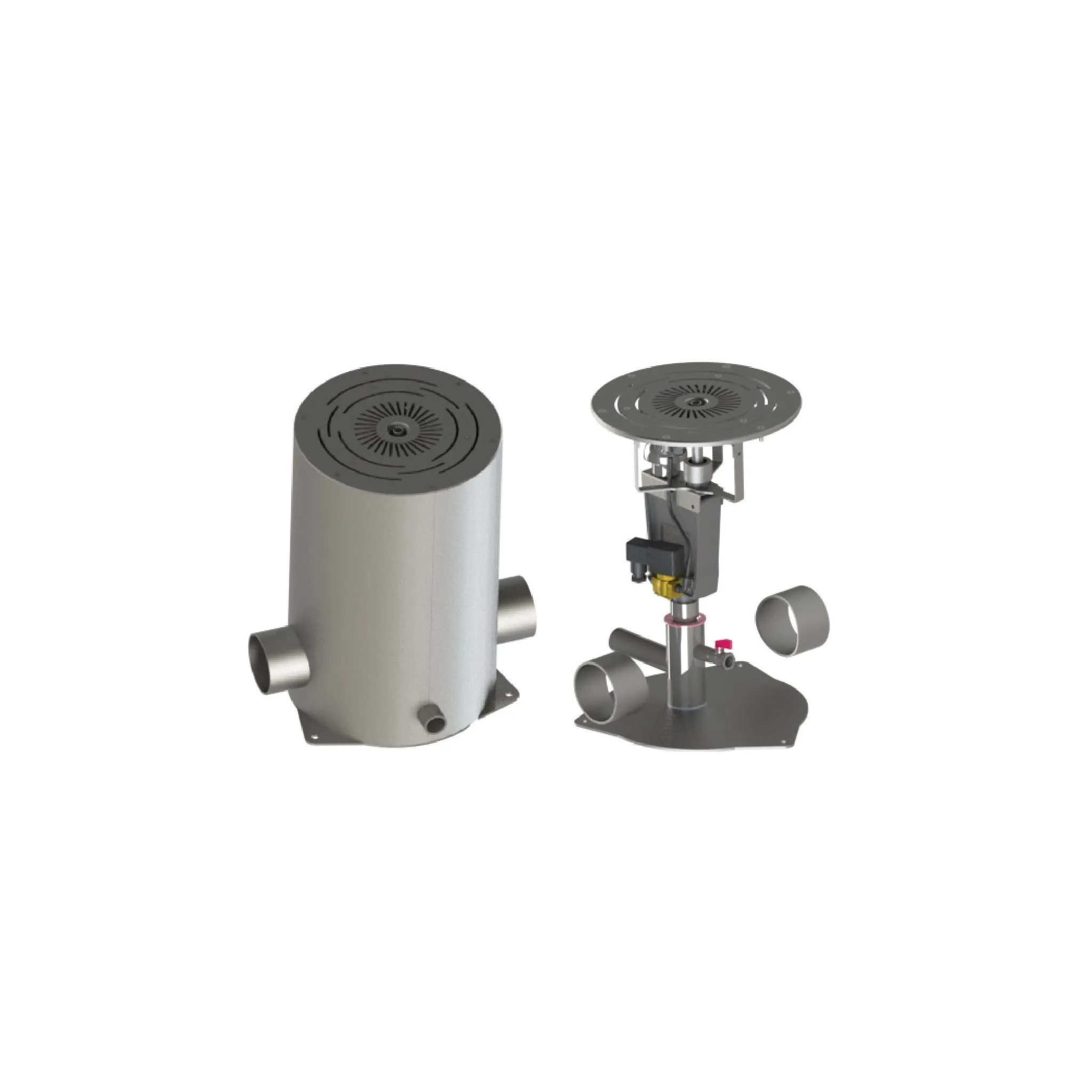

Instead of the classic two-solenoid control, the DryDECK Switch features a special plastic engineering body that allows water flow to be controlled with just one solenoid. This design reduces the on-off time to 0.1 seconds, resulting in more lively animations. It also improves efficiency and simplifies maintenance. Furthermore, this innovative approach enhances durability and performance in various applications.

  • RGB or RGBW power LED Light (OPTIONAL)
  • Robust Stainless Steel Body
  • 2 Different Nozzle Type
  • DMX-RDM Controlled
  • Syncronorm Depence Library available

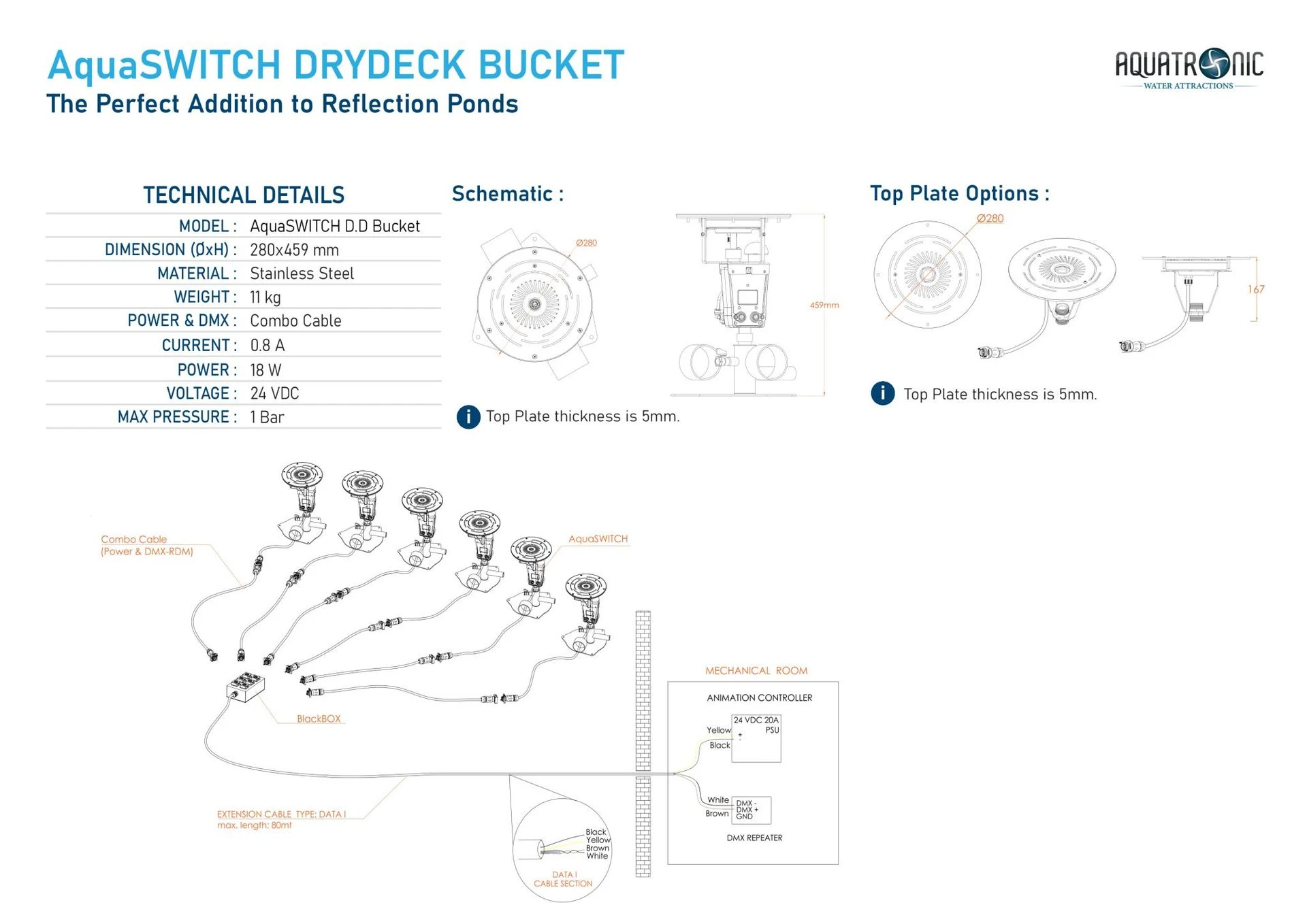

Technical details

ModelAquaSWITCH D.D Bucket
Dimension (Ø×H)280 × 459 mm
MaterialStainless steel
Weight11 kg
Max. pressure1 bar
Top plateØ280 mm, 5 mm thick
Power & DMXCombo cable
Voltage24 VDC
Power18 W
Current0.8 A
