AquaSHIELD
THICKNESS ADJUSTABLE WATER LAYER TO PROJECT A MOVIE OR LASER SHOWS !
THICKNESS ADJUSTABLE WATER LAYER TO PROJECT A MOVIE OR LASER SHOWS !

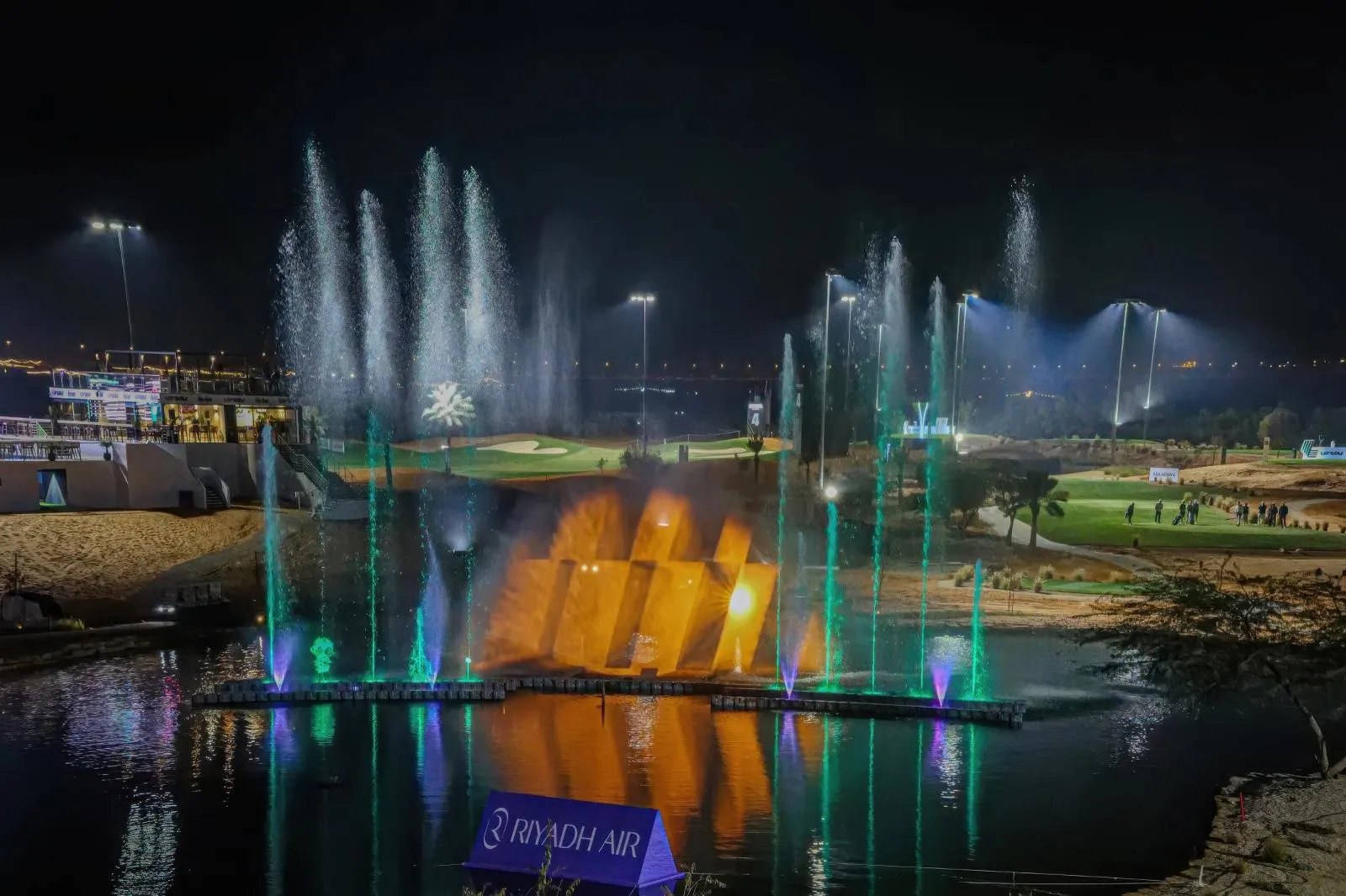

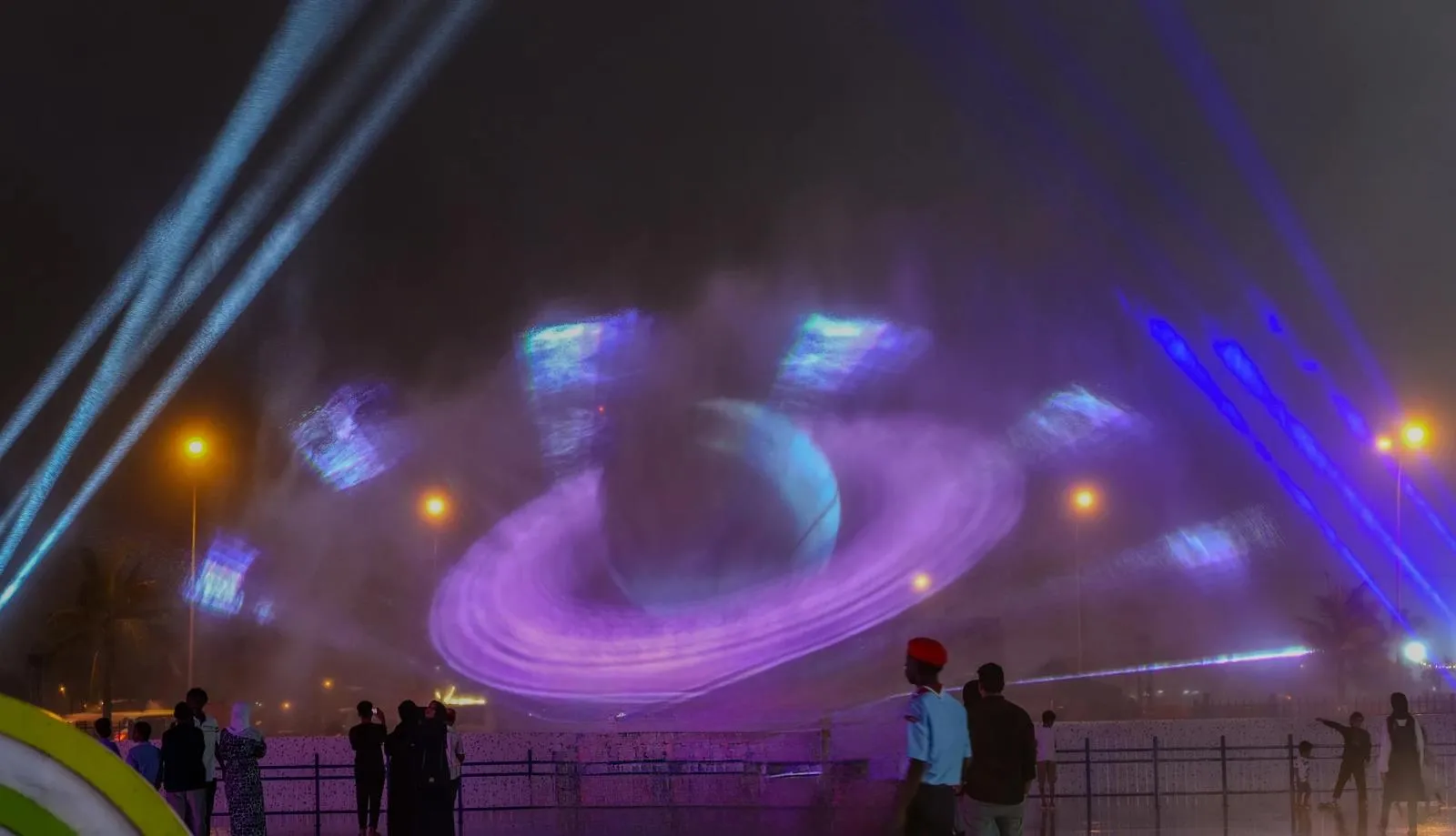

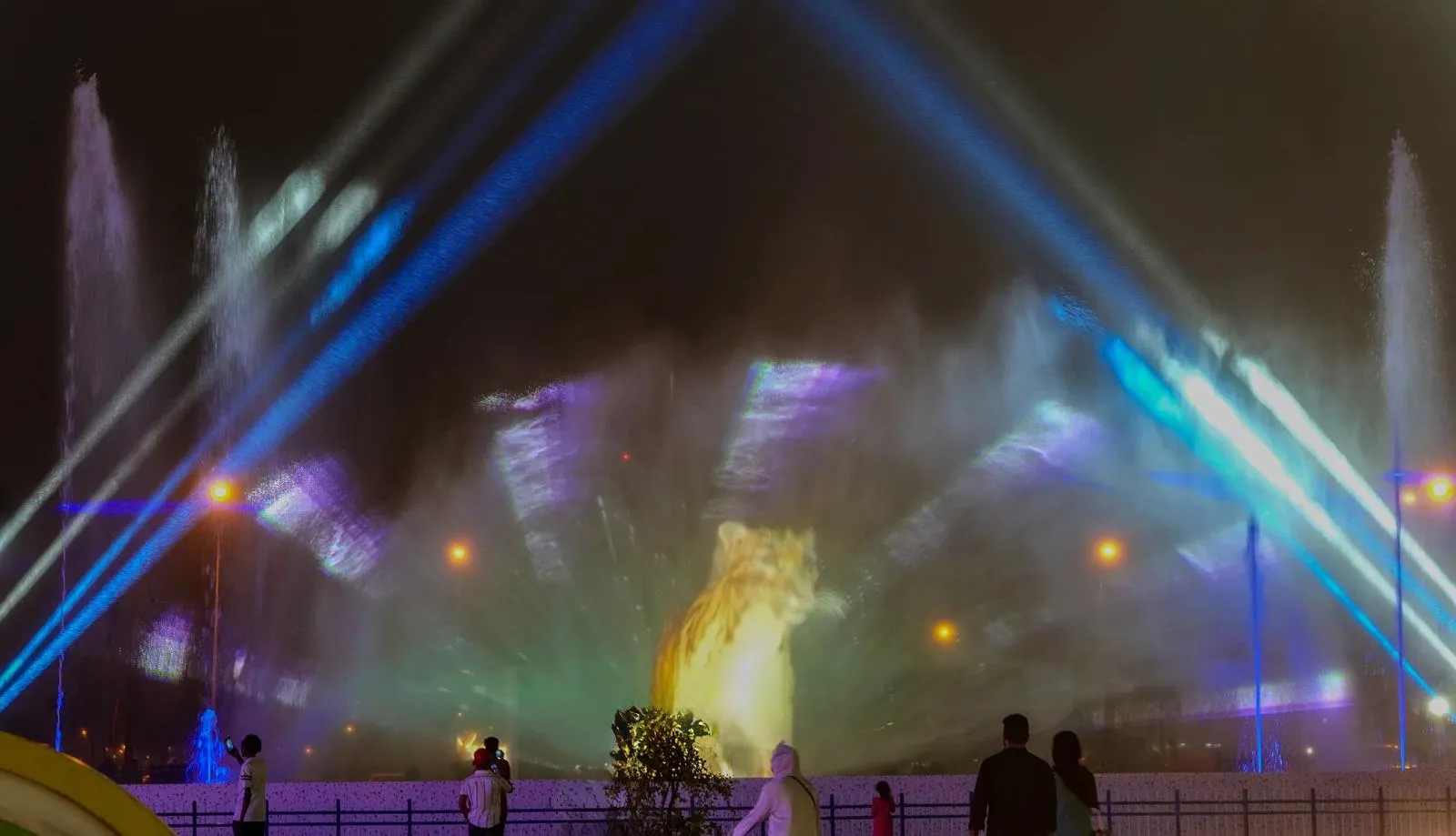

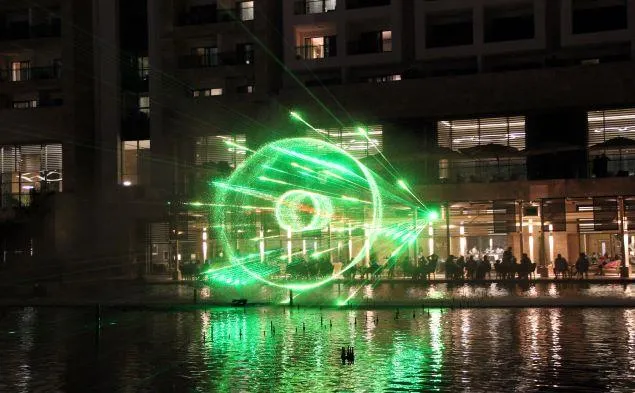

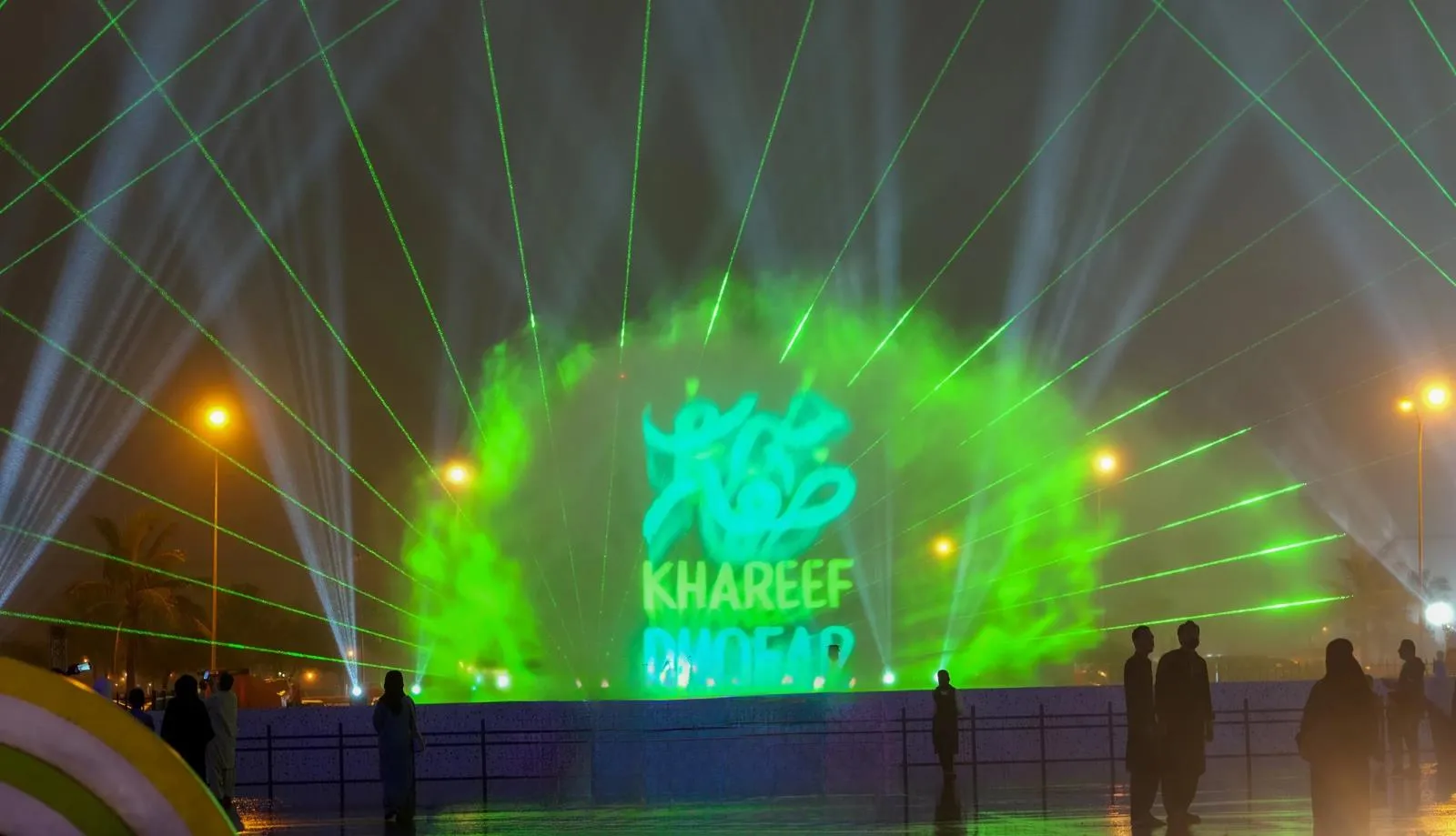

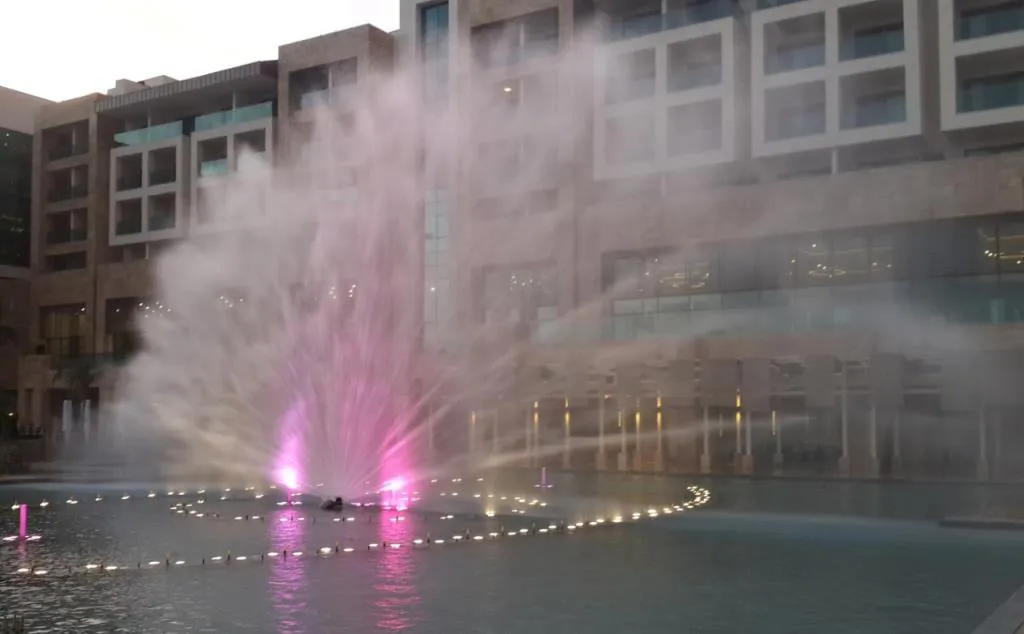

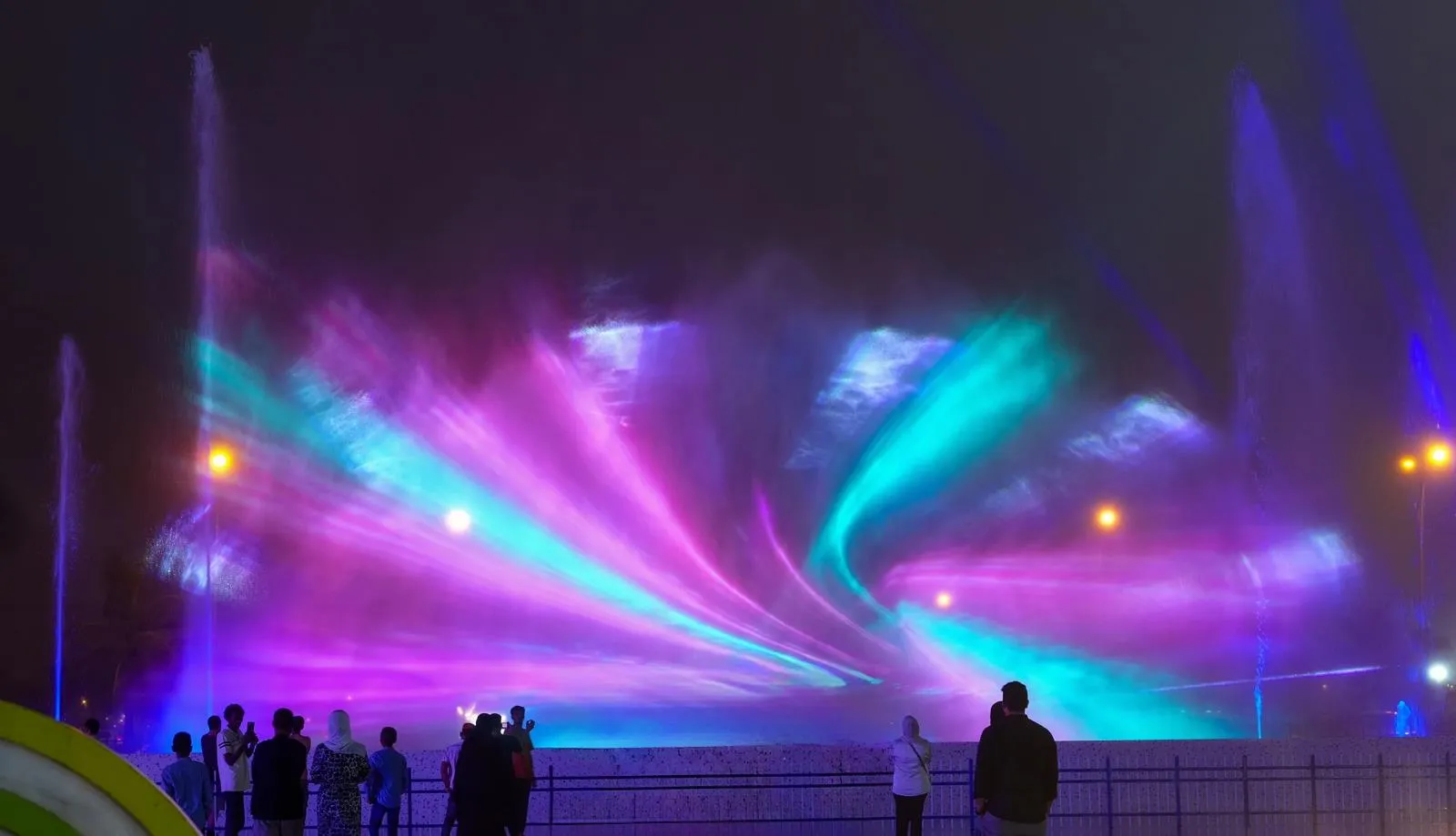

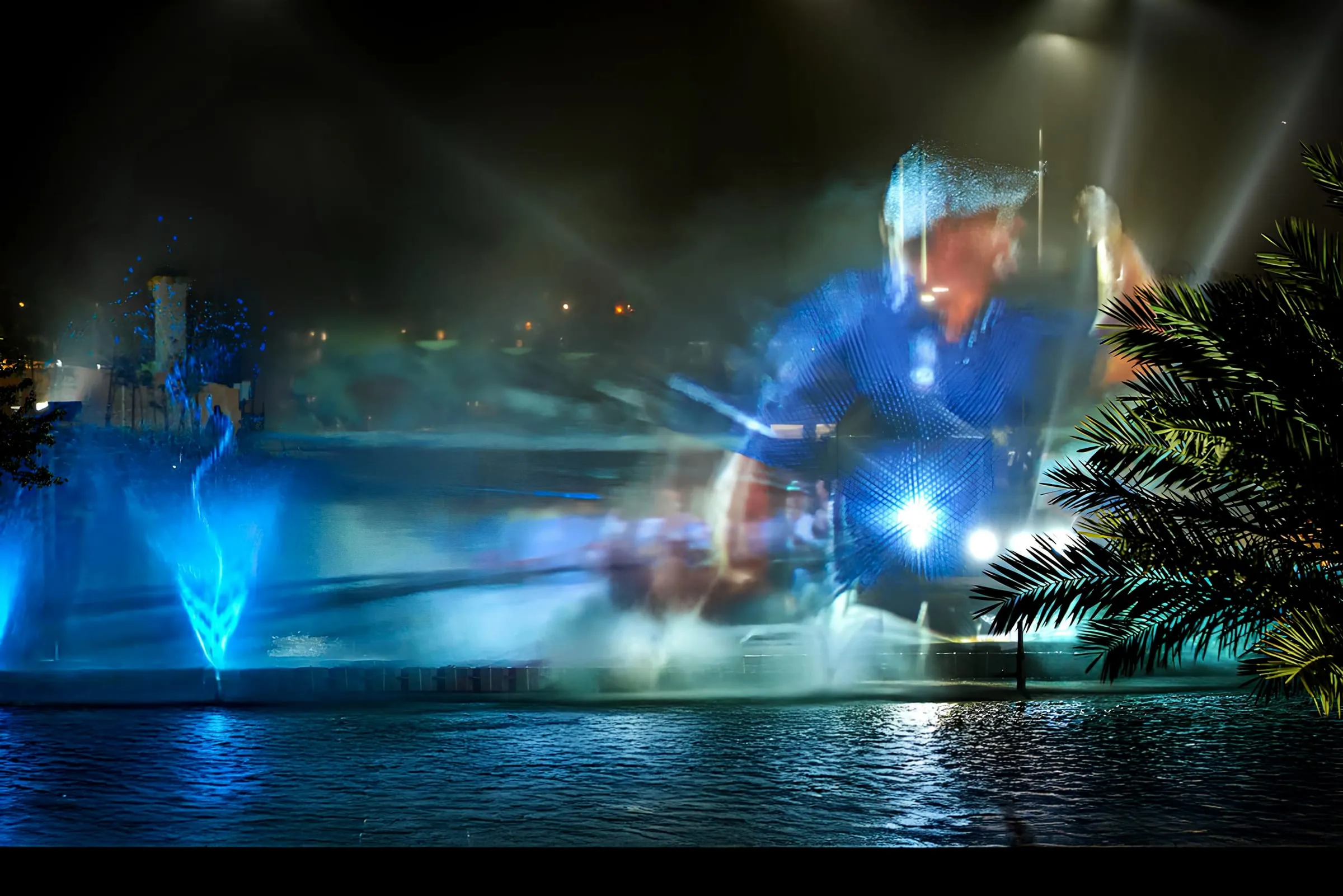

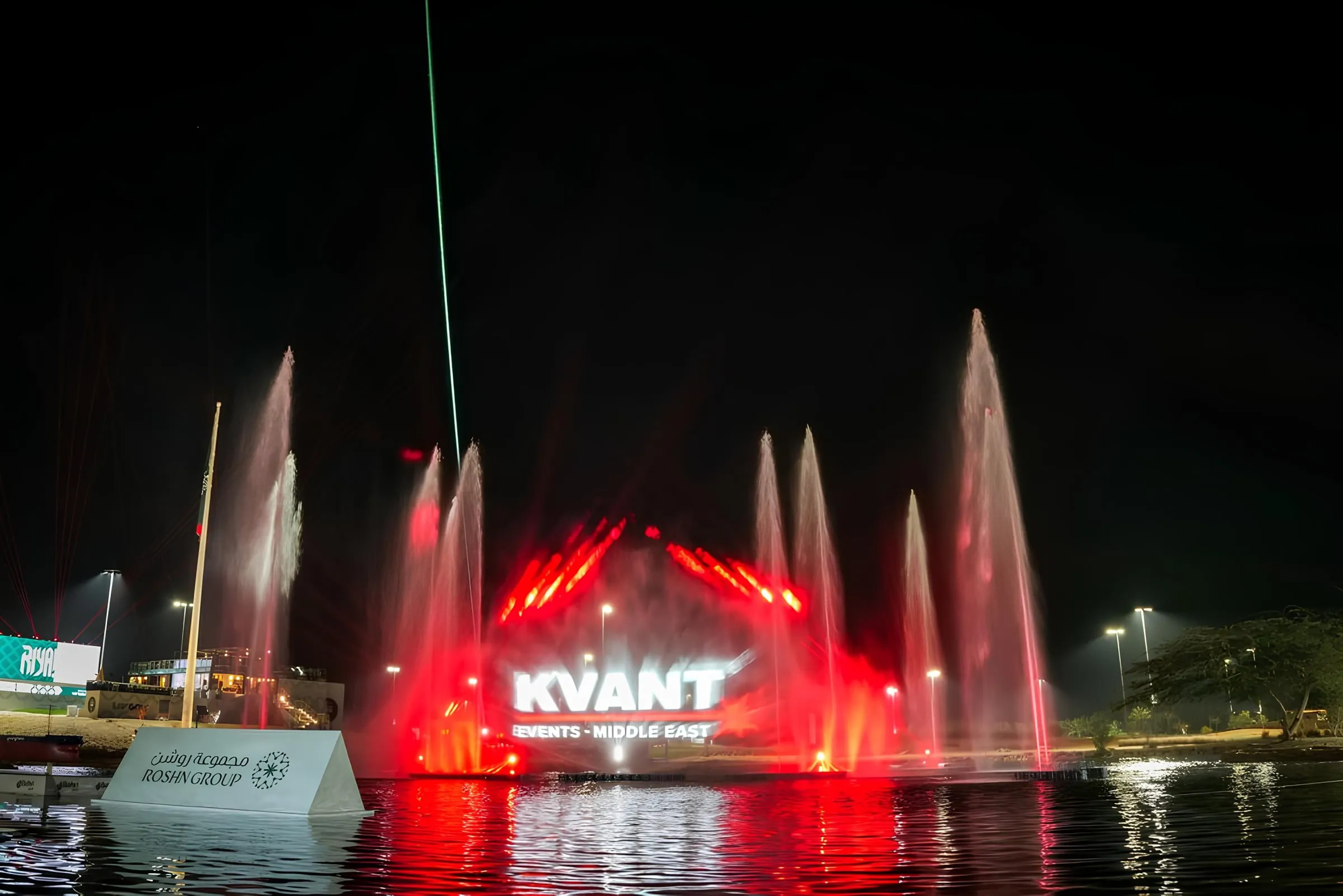

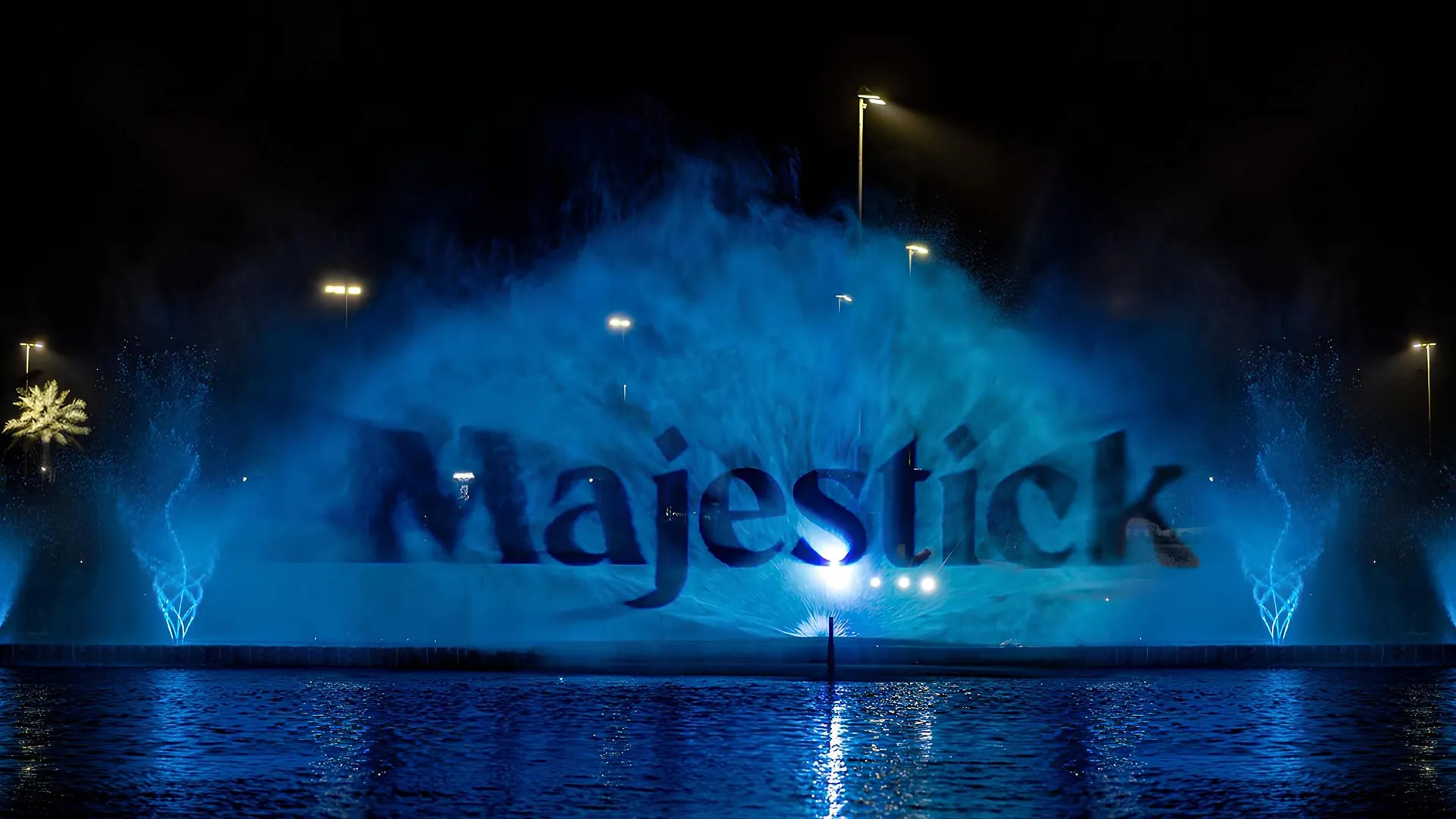

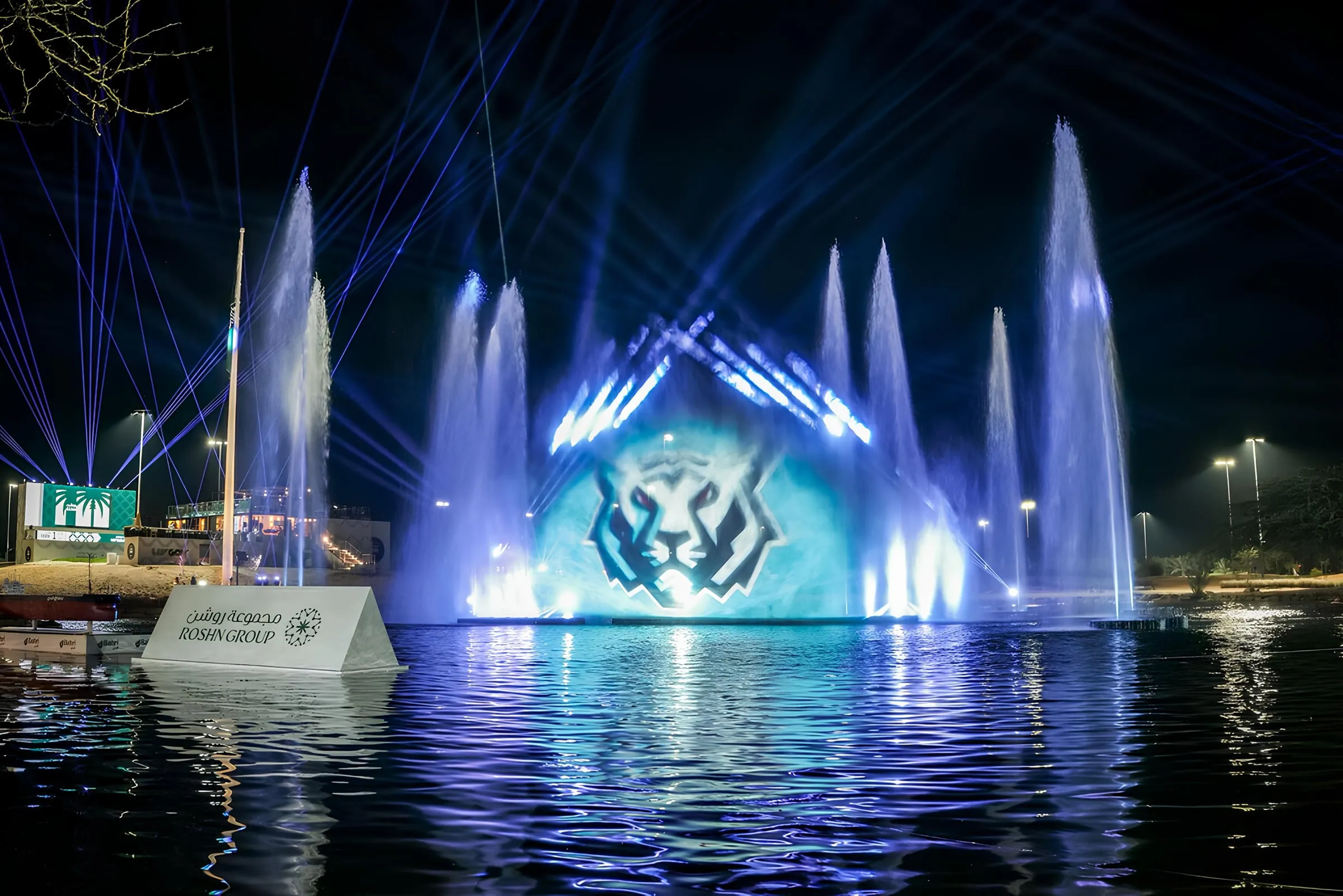

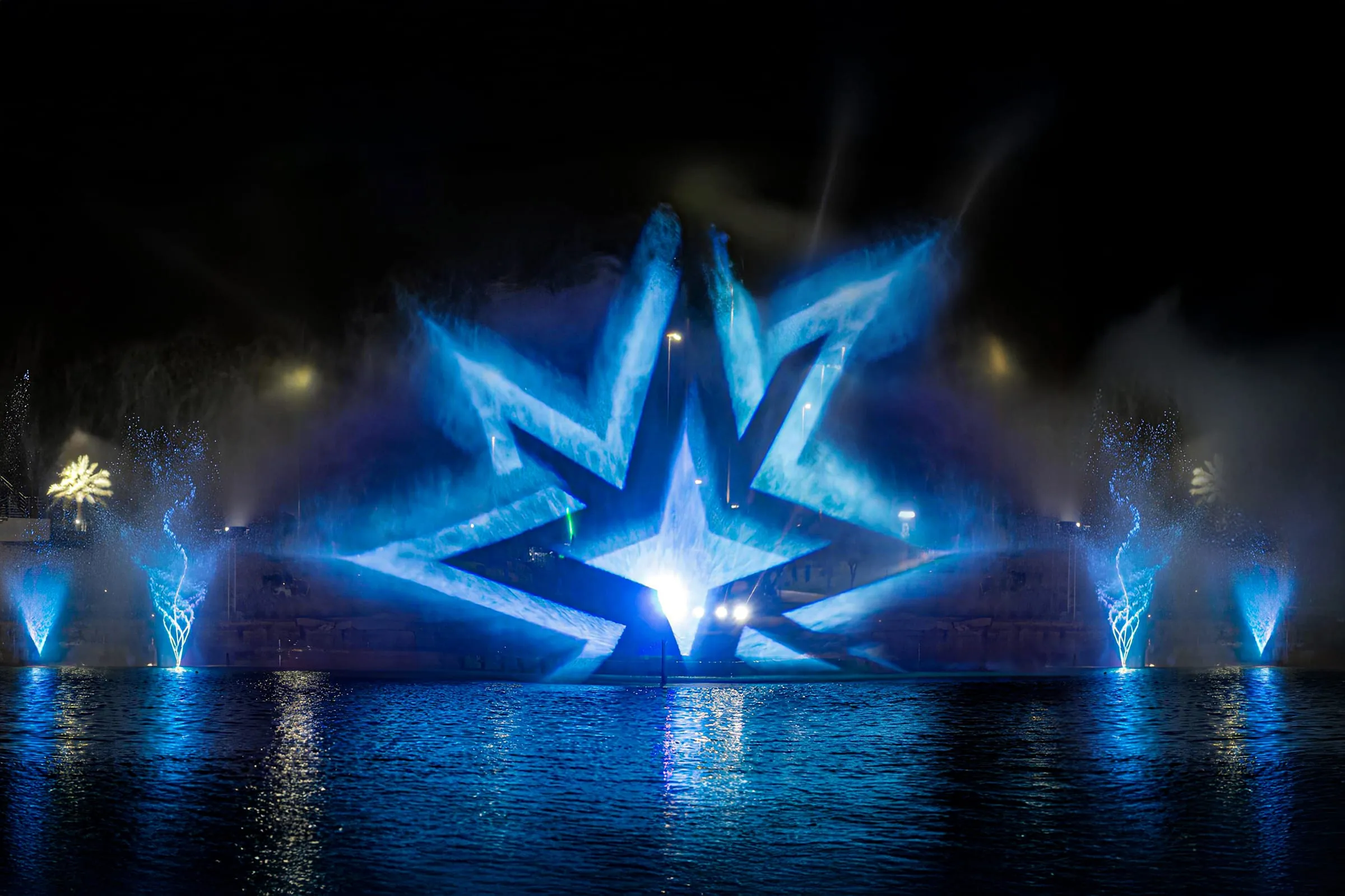

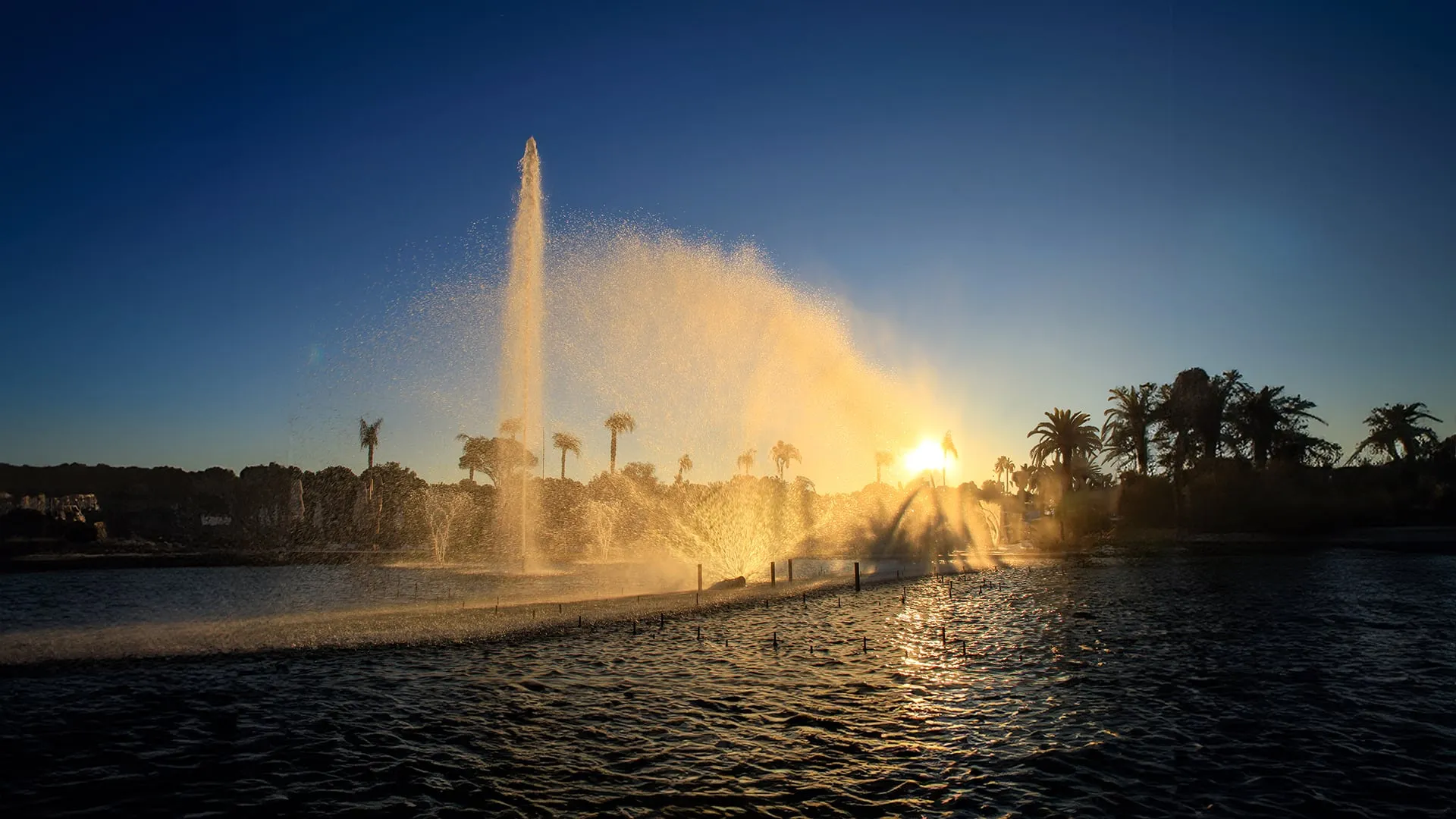

The purpose of AquaSHIELD is creating thin water surface which will be screen for multimedia or laser shows. Even movies can be shown by this method. The system 180 degree water range and water film thickness is adjustable. There are two different units for diverse size of screens. The max horizontal range is 26 meter, max water height is 15 meter. Working pressure is 4-6 bar.
- Robust Stainless Steel Body
- 180 clear water display
- Ideal for Video and Laser Projection
- Adjustable film thickness
- The gap of the nozzle can be placed singular
- An extra flow regulation pipe is not required

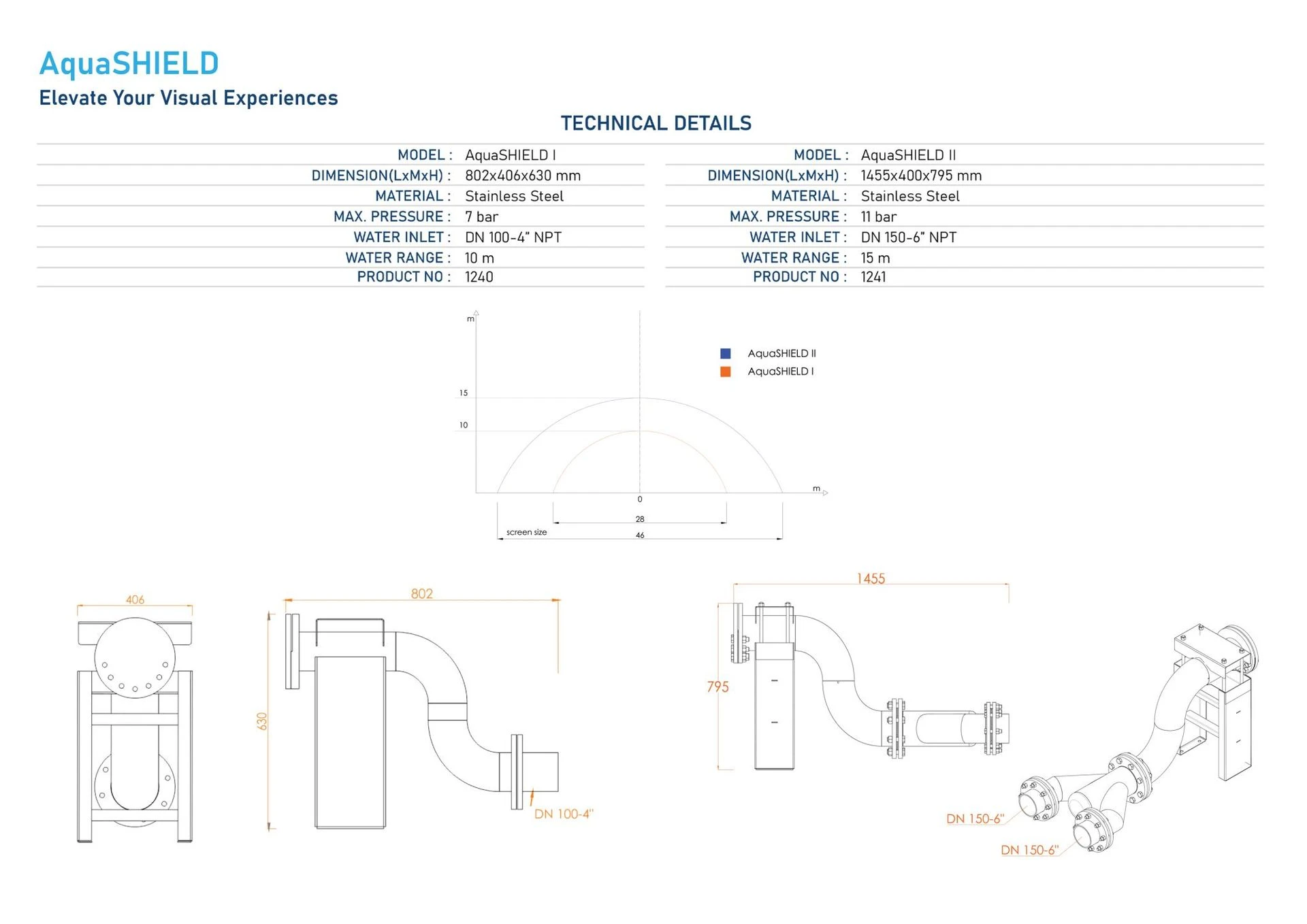

Technical details
| AquaSHIELD I | AquaSHIELD II | |
|---|---|---|
| Dimension (L×W×H) | 802 × 406 × 630 mm | 1455 × 400 × 795 mm |
| Material | Stainless steel | Stainless steel |
| Max. pressure | 7 bar | 11 bar |
| Water inlet | DN 100 – 4" NPT | DN 150 – 6" NPT |
| Water range | 10 m | 15 m |
| Screen size | 28 m | 46 m |
| Product no | 1240 | 1241 |
