Flange Nozzles

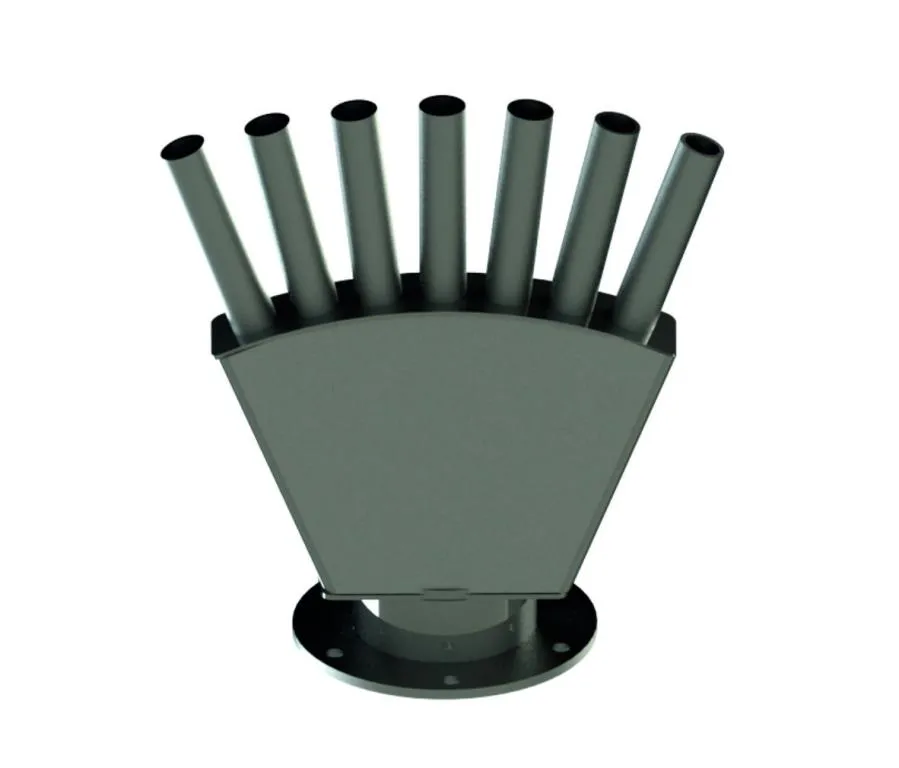

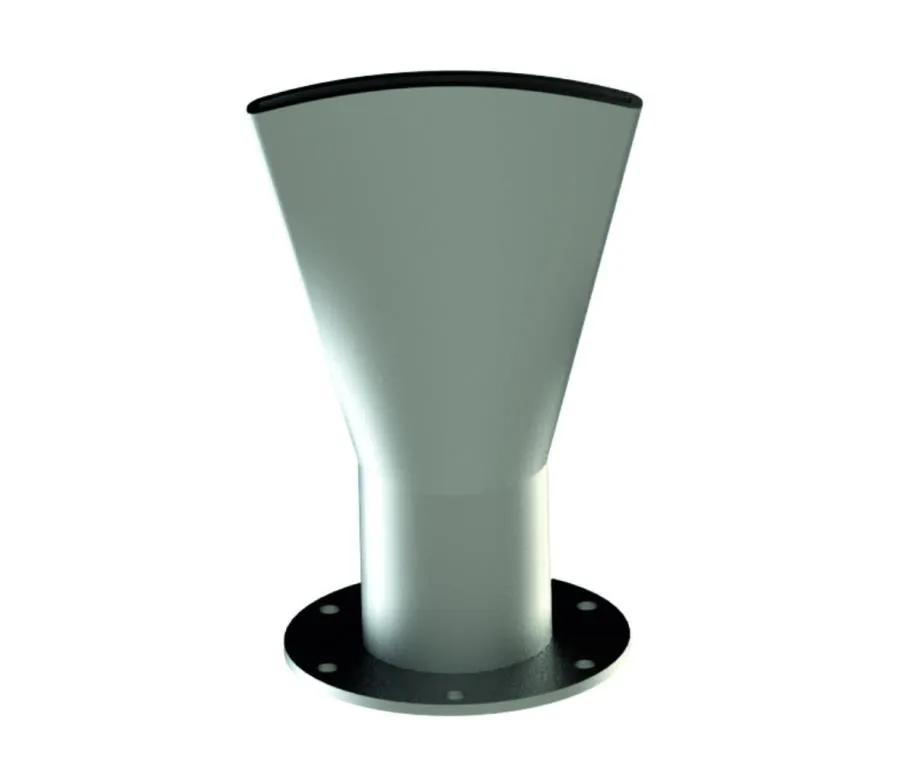

Flange Nozzles bolt straight onto a flanged outlet, which is the connection AquaROBO, AquaROBO-ROLL and AquaSWING use to take different heads — the nozzle can be changed without touching the drive underneath. Three straight-jet bores of Ø17, Ø20 and Ø23 mm throw a single column up to 16 m. Two shaped heads complete the range: the FAN nozzle opens a flat sheet of water and the HEPTA groups seven jets in one body, both working at low pressure over a 1 to 4 m spread. Flow tables for every size give the litres per minute and bar needed at each height.
