AquaFLOAT QUADRO

AquaFLOAT QUADRO
AquaFLOAT QUADRO
AquaFLOAT QUADRO
AquaFLOAT QUADRO
AquaFLOAT QUADRO

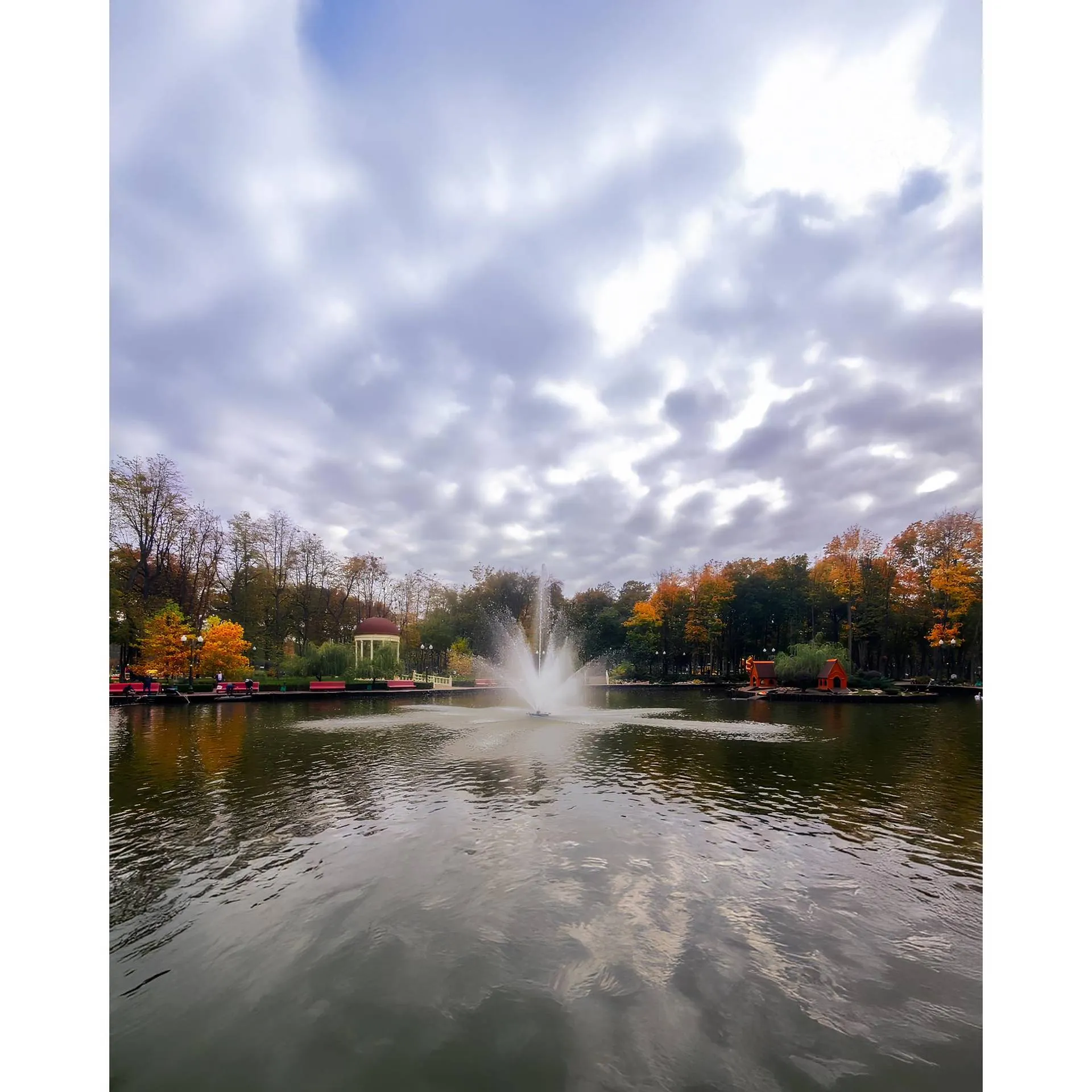

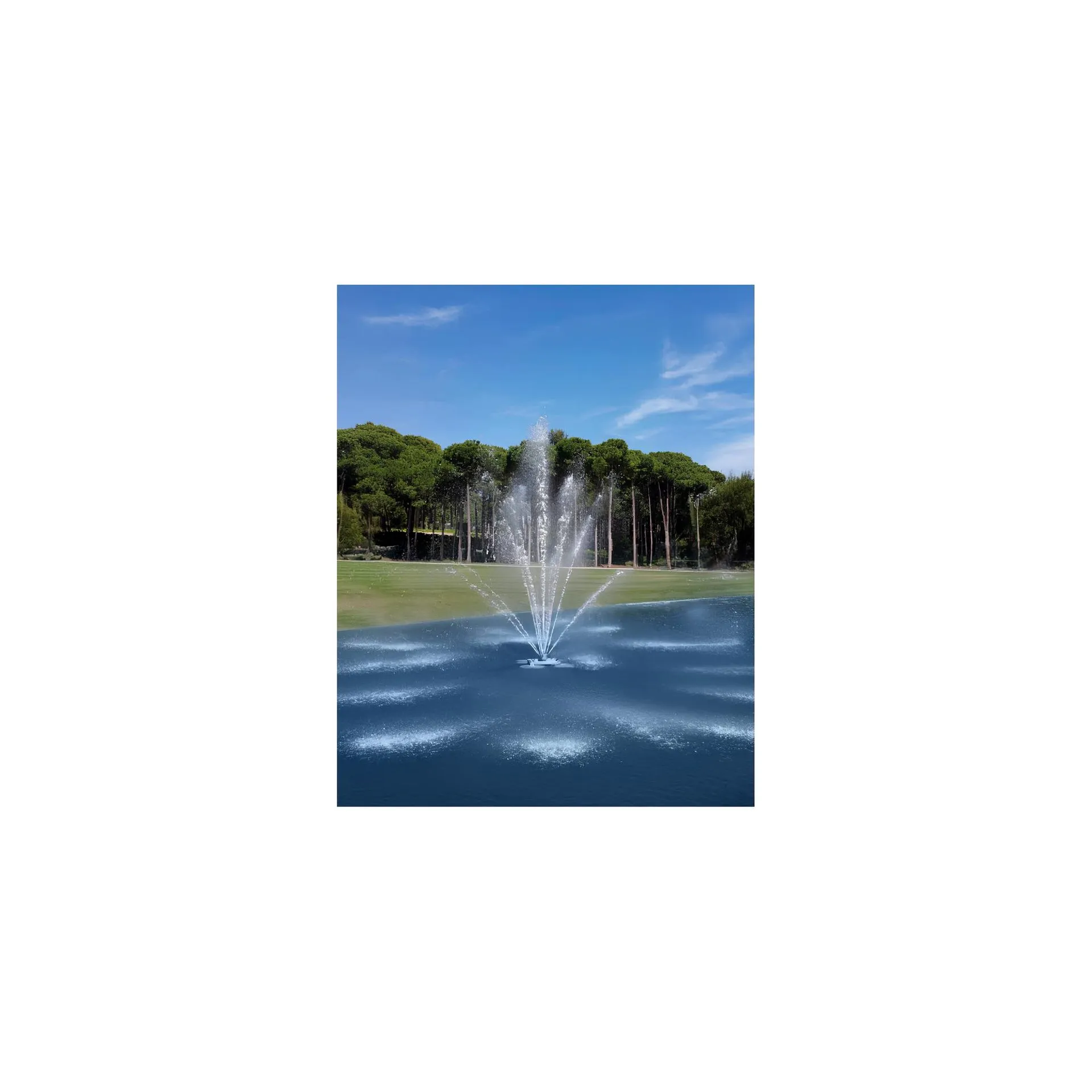

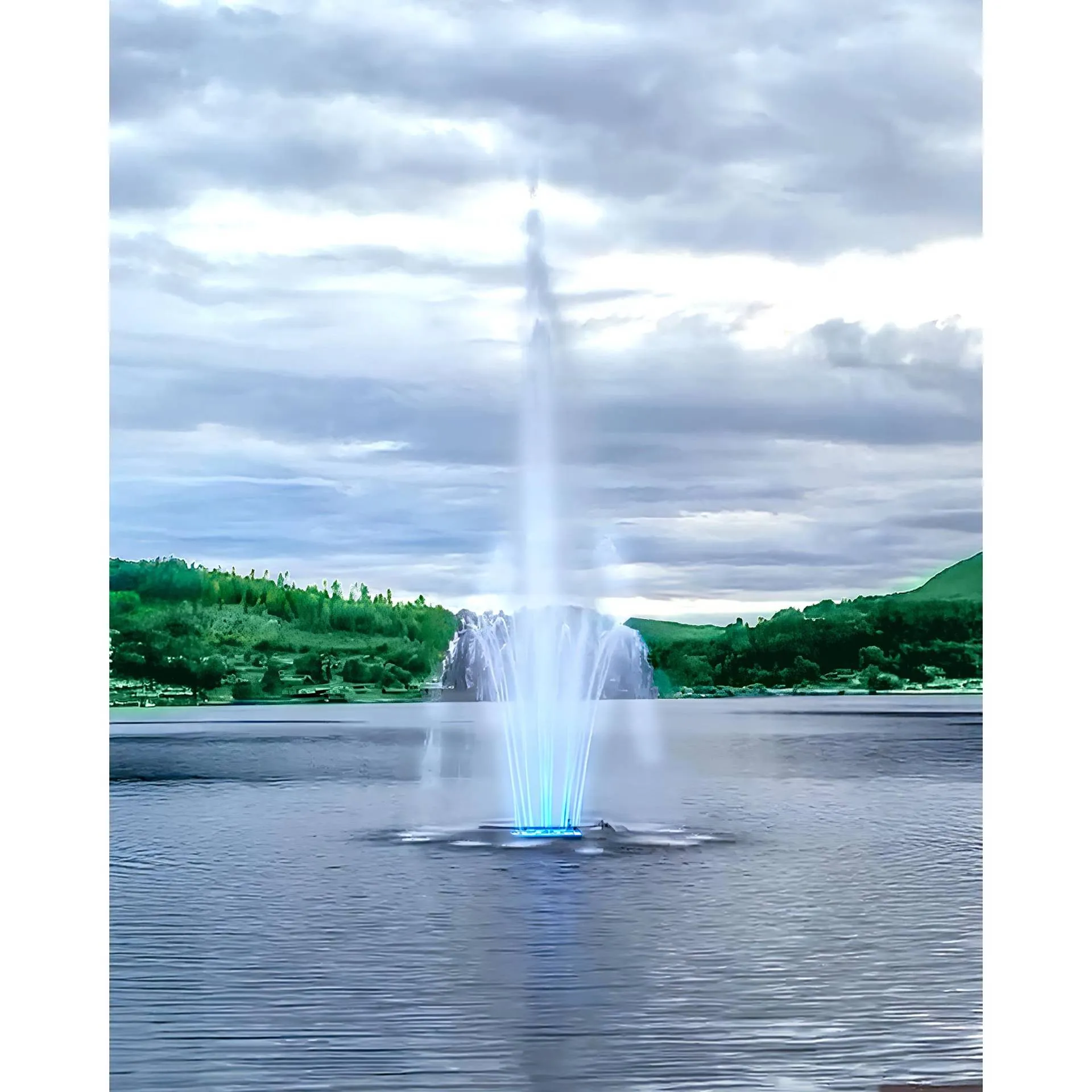

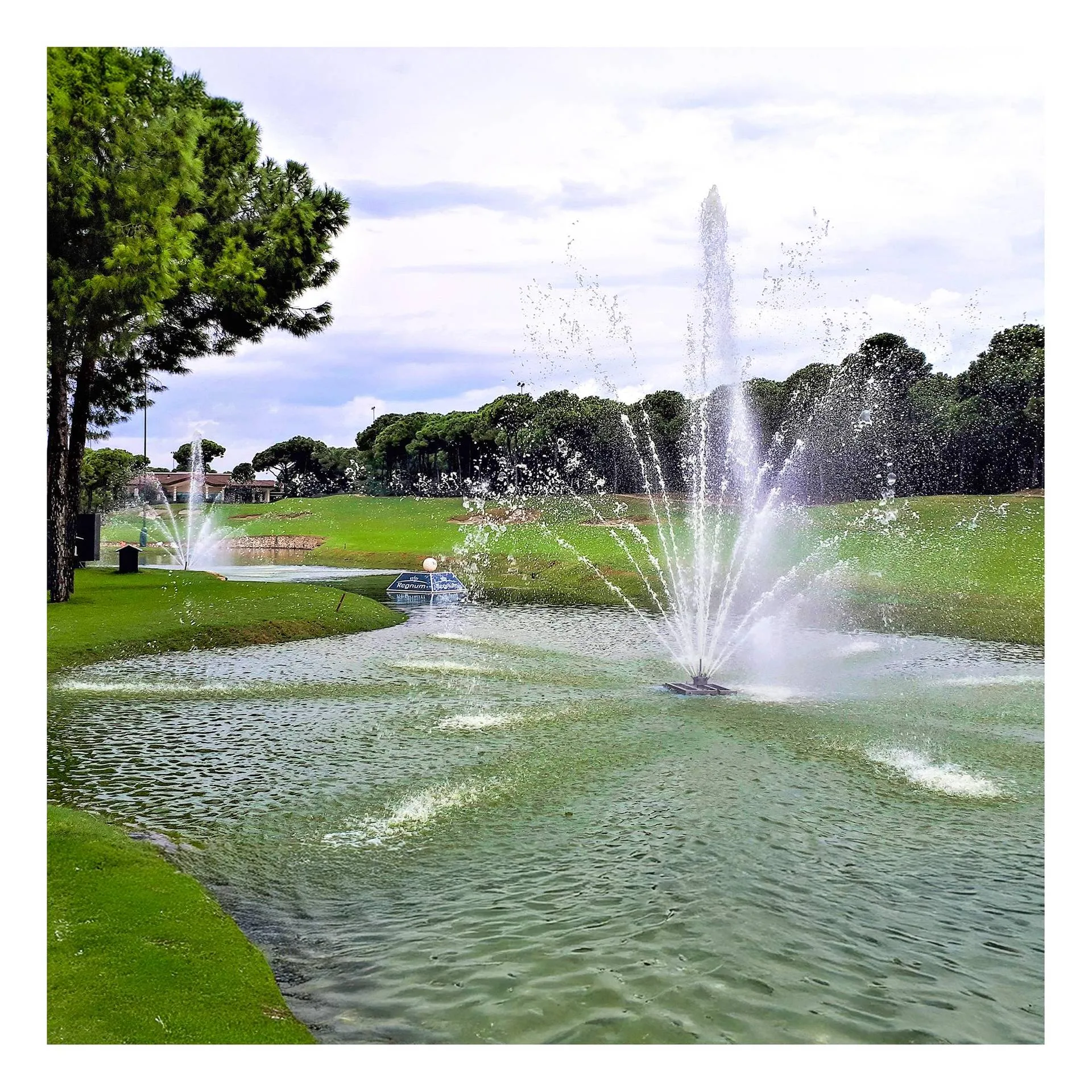

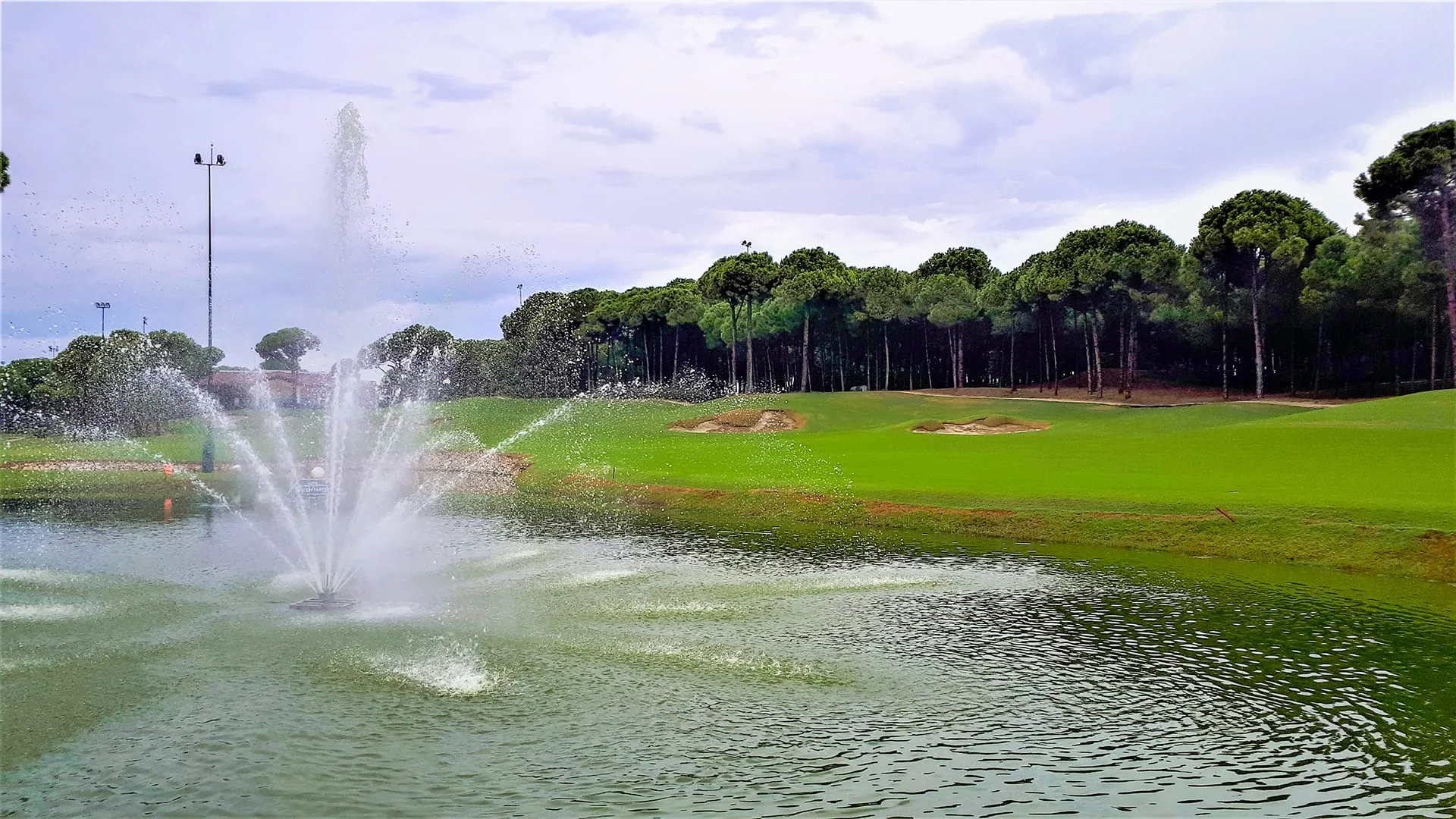

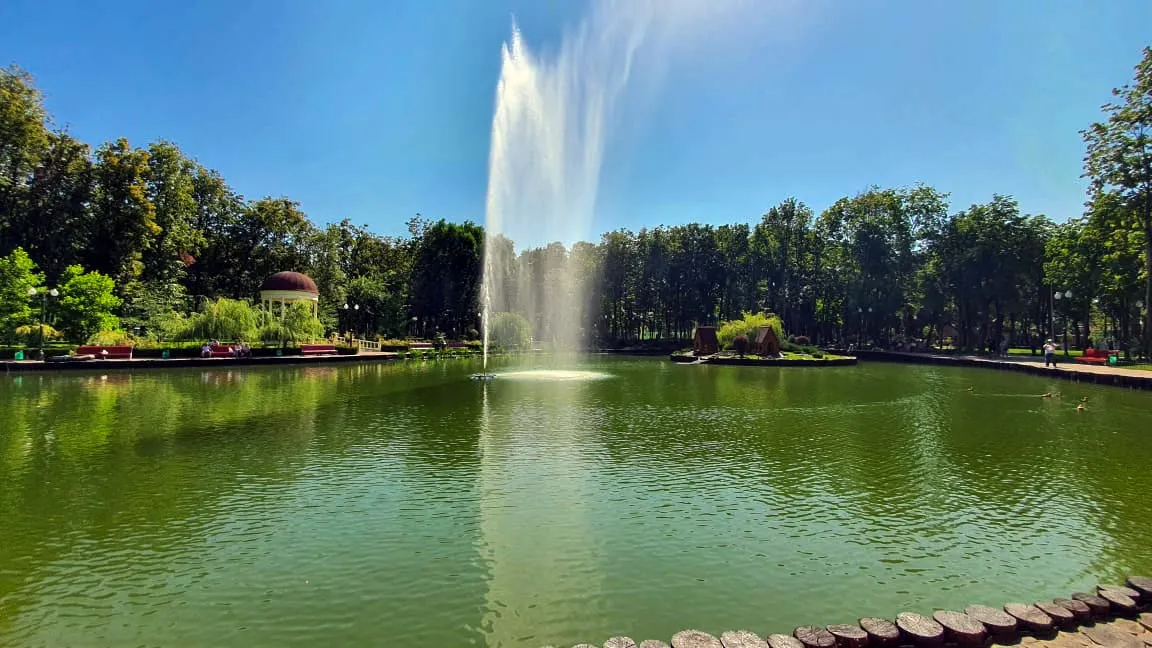

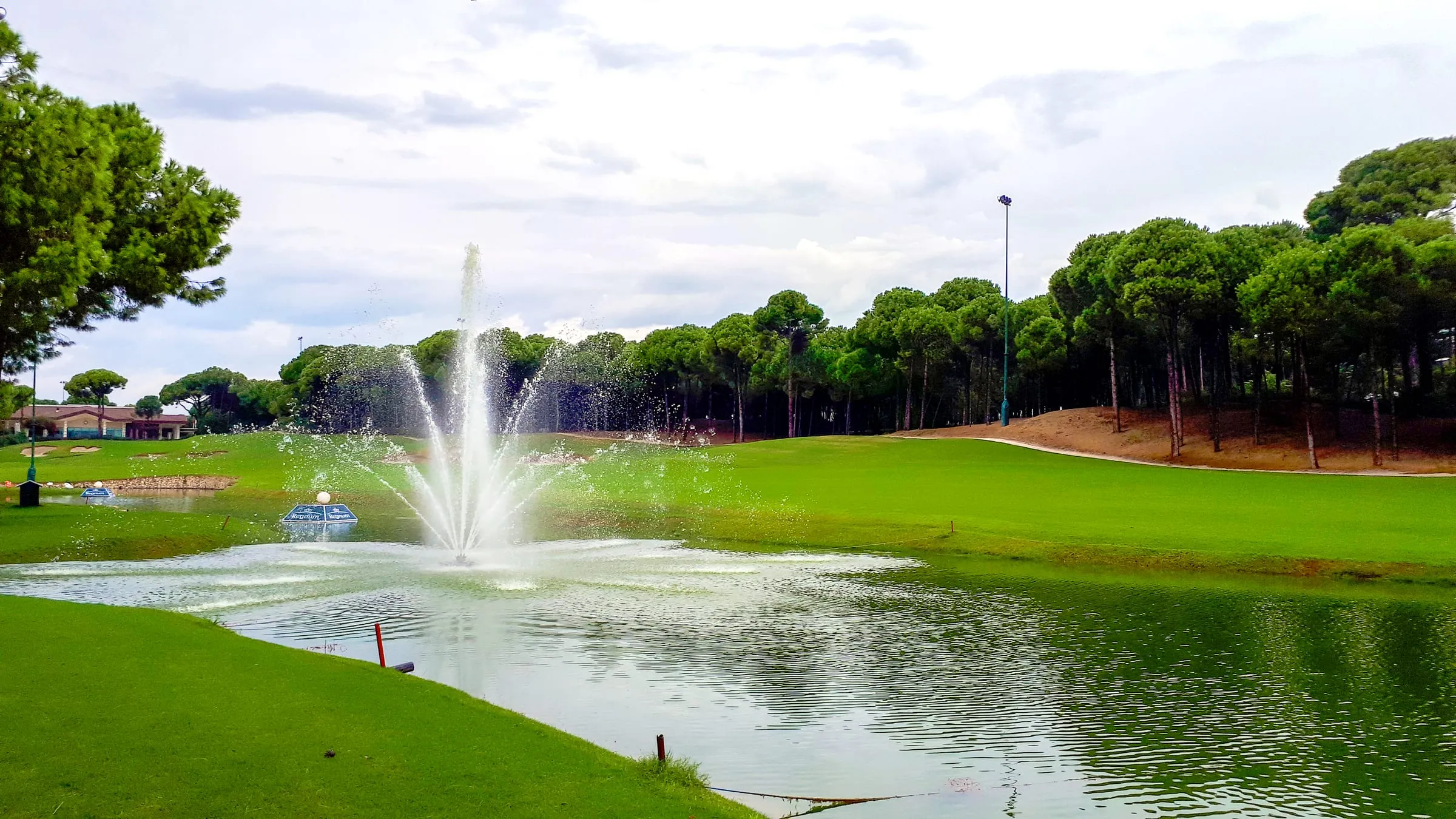

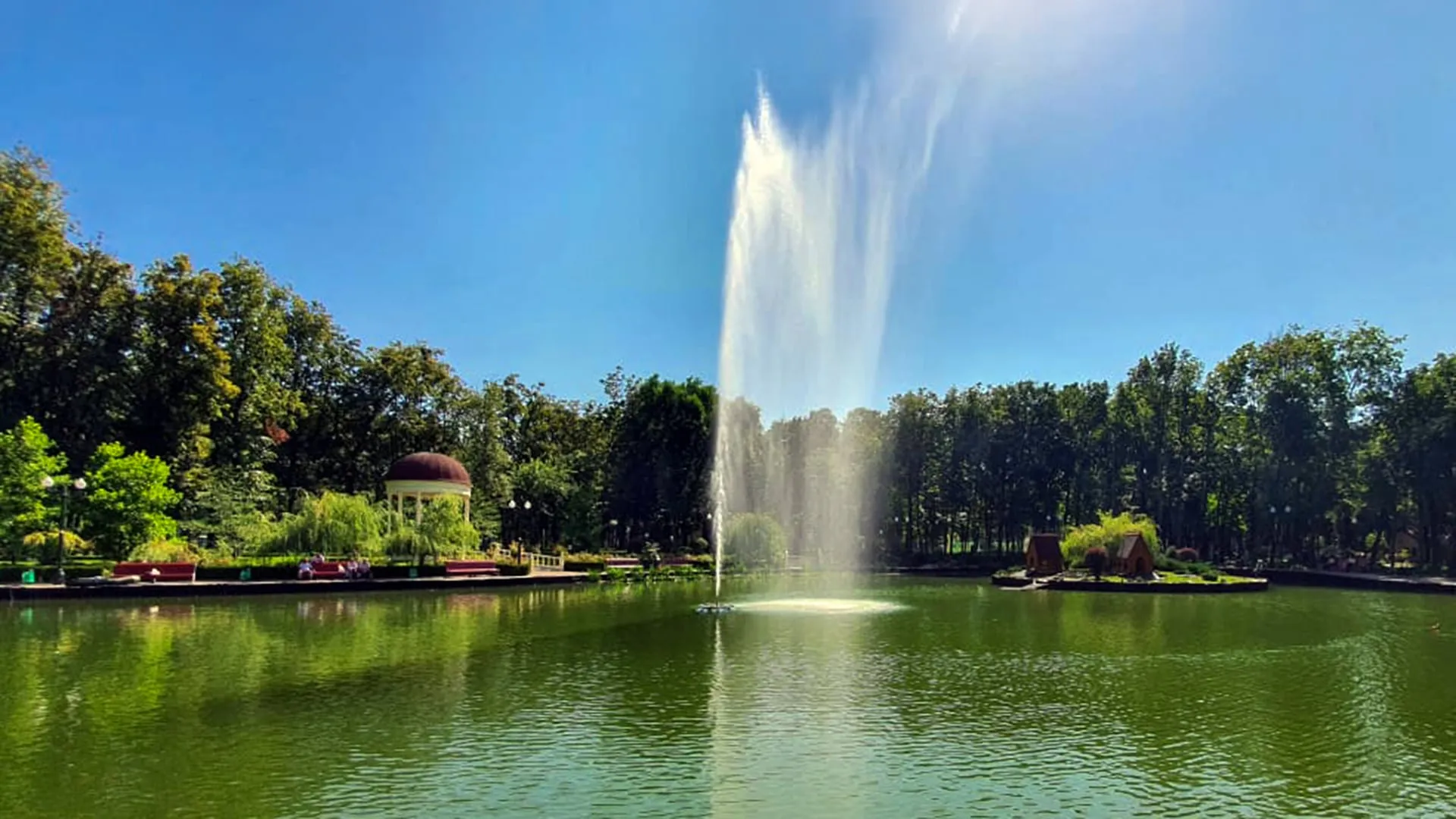

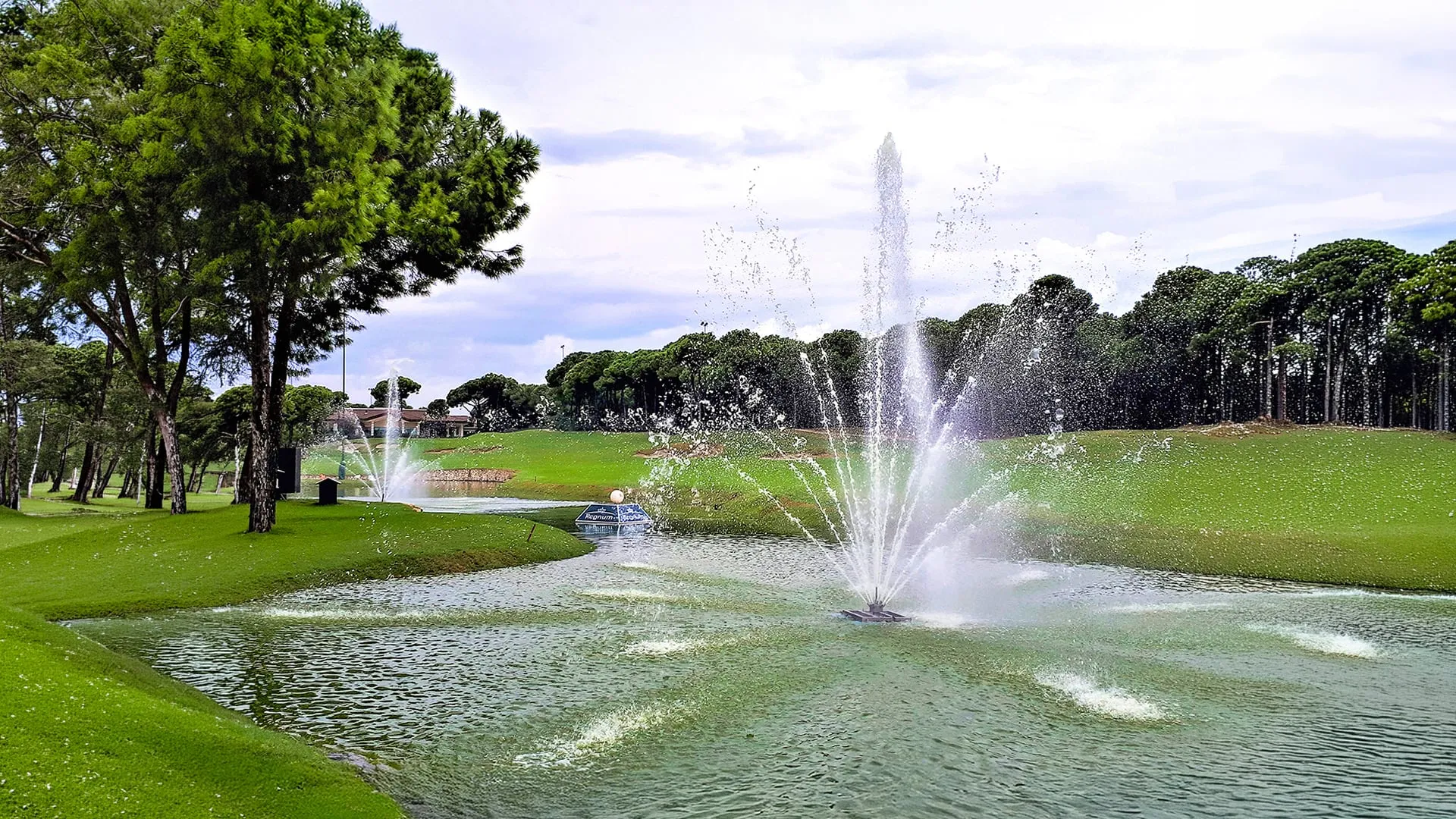

AquaFLOAT QUADRO is the largest of the floating units, built on a PE pontoon that carries its own submersible pump and needs no pool construction — it is anchored on an existing lake or basin and can be lifted out again when the season ends. Two versions cover different effects: QUADRO-JET drives a single high jet up to 15 m on a 4 kW pump, while QUADRO-THRONE spreads a wider 5 m crown on 5.5 kW. Both are DMX controlled and take two, three, or six AquaLIGHT units for colour, with power and signal arriving over a single Combo Cable. The special connector design lets the whole unit be disconnected and removed without dismantling the installation.

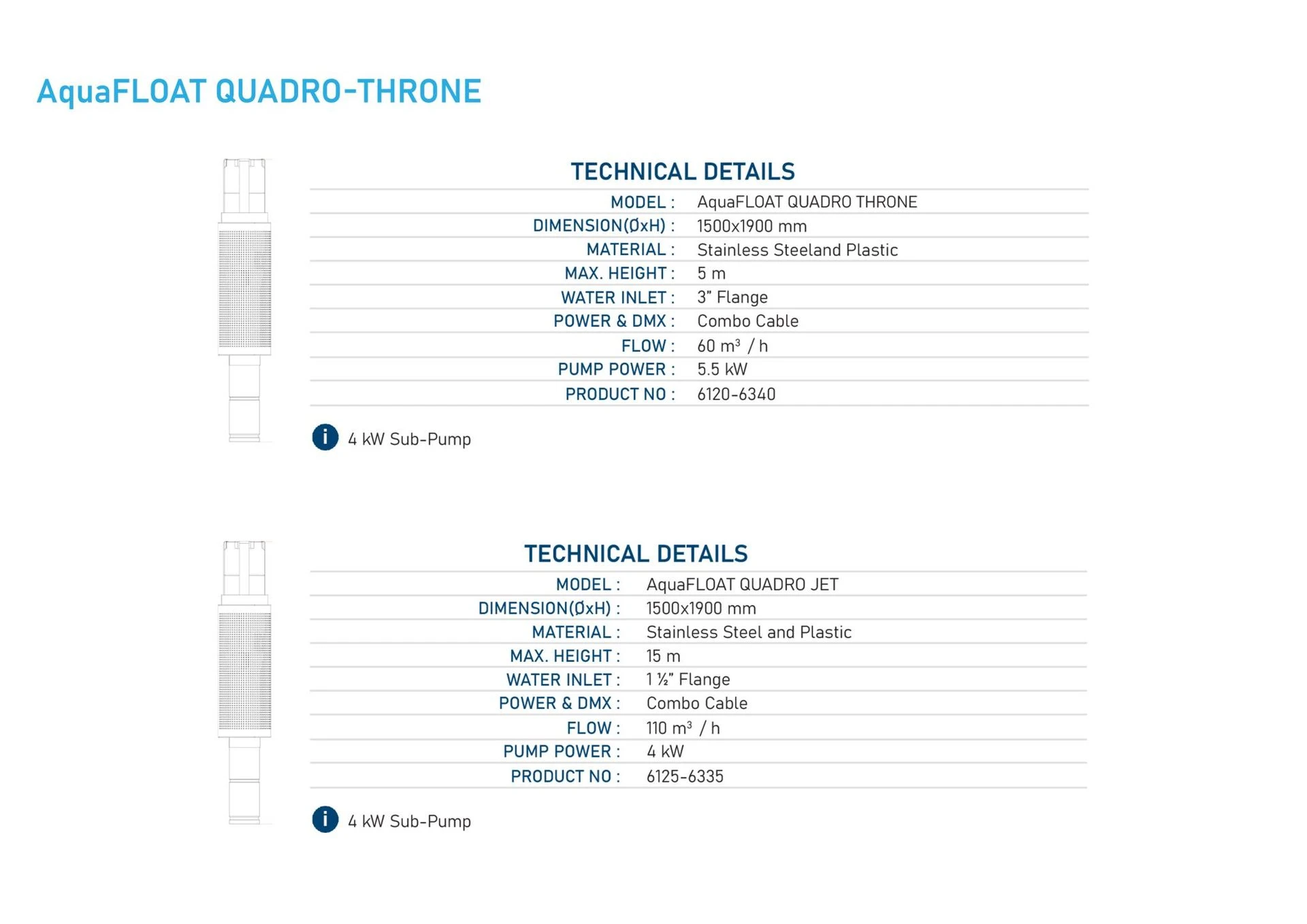

Technical details

AquaFLOAT QUADRO THRONEAquaFLOAT QUADRO JET
Dimension (Ø×H)1500 × 1900 mm1500 × 1900 mm
MaterialStainless steel and plasticStainless steel and plastic
Max. height5 m15 m
Water inlet3" flange1½" flange
Power & DMXCombo cableCombo cable
Flow60 m³/h110 m³/h
Pump power5.5 kW4 kW
Product no6120-63406125-6335
