AquaFLOAT TRIO




AquaFLOAT TRIO is the mid-size floating unit, a PE pontoon with its own submersible pump that turns an existing lake or pool into an animated water feature without any civil work. Three versions share the same Ø1240 mm body and differ in the effect they throw: VULCAN reaches 4 m on a 3 kW pump, TORNADO 3 m and TYPHOON 2 m, both on 2.2 kW. Each is DMX controlled and accepts two, three, or six AquaLIGHT units, with power and signal carried on a single Combo Cable. The connector design allows the unit to be removed from the water and put back for the next show.

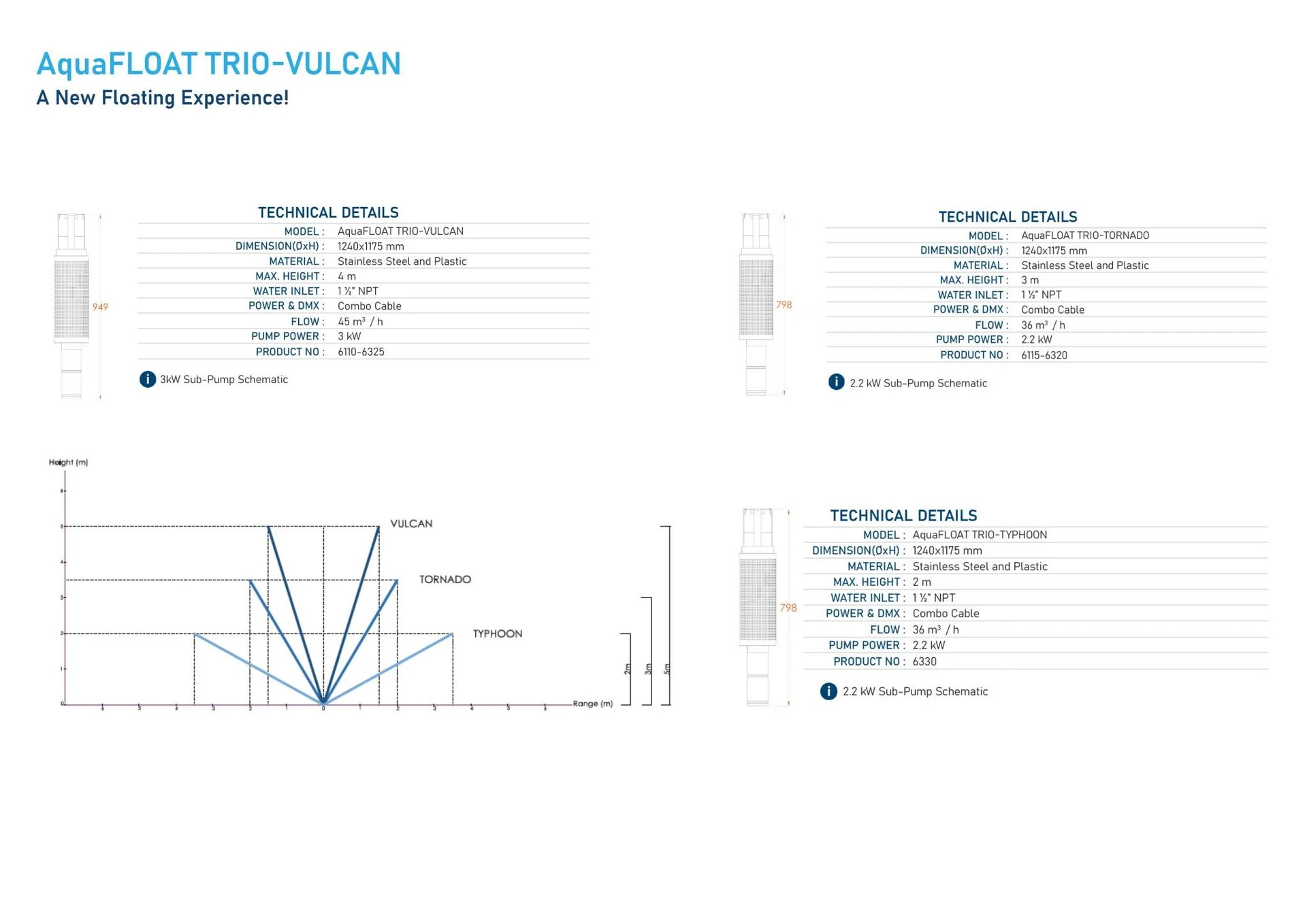

Technical details
| AquaFLOAT TRIO-VULCAN | AquaFLOAT TRIO-TORNADO | AquaFLOAT TRIO-TYPHOON | |
|---|---|---|---|
| Dimension (Ø×H) | 1240 × 1175 mm | 1240 × 1175 mm | 1240 × 1175 mm |
| Material | Stainless steel and plastic | Stainless steel and plastic | Stainless steel and plastic |
| Max. height | 4 m | 3 m | 2 m |
| Water inlet | 1½" NPT | 1½" NPT | 1½" NPT |
| Power & DMX | Combo cable | Combo cable | Combo cable |
| Flow | 45 m³/h | 36 m³/h | 36 m³/h |
| Pump power | 3 kW | 2.2 kW | 2.2 kW |
| Product no | 6110-6325 | 6115-6320 | 6330 |
